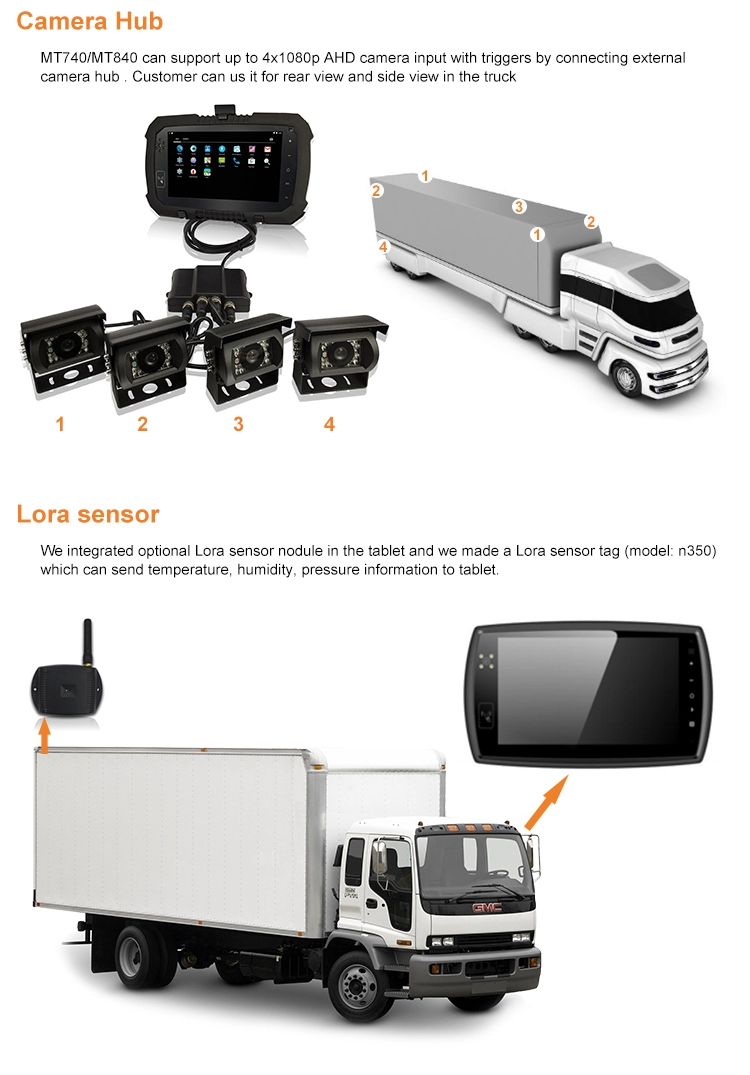

It equipped 7" display, 2G/3G/4G mobile network module, NFC card reader. With option of LoRa and camera system. It supports up to 4×1080p AHD camera input by combine with TOPICON camera hub device, truck driver can use it for real view and side view to ensure the safety. Thanks to the dedicated cradle it supports data interchange with vehicle RS232 interface. Advanced GPS chipset make navigation more accurate.
Support MDM remote control server. Support OTA upgrading, firmware customization, APK integration and debug log.
FAQ – MDT765 Mobile Data Terminal for Bus and Truck Operations
1. What is the MDT765 Mobile Data Terminal used for on buses?
The MDT765 serves as an in-cab Android terminal for buses, supporting route navigation, driver HMI dashboards, passenger information systems, ticketing, diagnostics monitoring, and fleet telematics. Its rugged IP67 design and vehicle-mount cradle ensure stability during daily transit operations.
2. Can the MDT765 withstand long-hour operations on city buses?
Yes. MDT765 is designed for continuous 24/7 bus operation, featuring automotive-grade power input (9–36V), stable ignition sensing (ACC), wide-temperature performance, and a secure locking cradle for vibration-intensive environments.
3. Is the MDT765 compatible with bus ticketing or fare collection systems?
Yes. MDT765 supports RS232, USB, GPIO, CAN (via RS485 gateway), making it compatible with ticket validators, RFID/NFC card readers, QR code ticket scanners, printer modules, and driver consoles.
4. How does MDT765 support real-time bus tracking?
With 4G LTE, dual-band GPS, GLONASS and BeiDou, MDT765 enables real-time vehicle positioning, ETA calculation, stop-to-stop tracking, and bus arrival prediction system integration.
5. Can drivers perform vehicle status checks using the MDT765?
Yes. Through GPIO, RS232 sensors, and CAN gateway support, MDT765 integrates with door sensors, engine data, battery status, brake signals, fuel levels, and vehicle health monitoring systems.
6. Does MDT765 support dash cameras or AHD bus cameras?
Yes. MDT765 supports multiple AHD camera input methods (Type-A, Type-B, and Type-C) for driver-view cameras, door-side passenger monitoring, rear-view assist, and blind spot detection.
7. Can MDT765 be mounted inside different types of buses?
Yes, including city buses, shuttle buses, school buses, intercity coaches, airport buses, and electric buses. Mounting options include a vehicle cradle with charging pins, dashboard RAM mount, and pole/rail mount for bus cockpits.
8. Does MDT765 support bus fleet management platforms?
Yes. The device integrates easily with cloud-based fleet management systems, dispatch platforms, bus scheduling systems, AVL/AVM systems, and real-time route adjustment tools.
9. How does MDT765 ensure stable network coverage on long-distance routes?
Through dual-SIM failover, the MDT765 minimizes dead zones and ensures seamless coverage, reliable telemetry reporting, and stable high-quality data transmission.
10. Can TOPICON provide SDK/API for bus system integrators?
Yes. We offer Android SDK, GPIO/serial communication libraries, AHD camera access API, and power/IGN APIs for bus ticketing, dispatch, and fleet management system integration.
MDT765 for Bus & Transit Operations — Feature Highlights
Driver-Friendly In-Cab Terminal
MDT765 provides a clear 8-inch 1000-nit anti-glare display, ensuring visibility even under large windshields exposed to sunlight—ideal for urban and intercity buses.
Fully Integrated with Bus Telematics
AHD camera access
GPS / GLONASS / BeiDou navigation
Digital I/O for doors & brake sensors
RS232 / RS485 for ticket validators
Wi-Fi 6 for depot synchronization
Real-Time Passenger Information Compatibility
Passenger counting (APC)
Stop announcement systems
Digital signage controllers
Route map updates
Designed for Harsh Transit Environments
High vibration tolerance
Dustproof & waterproof (IP67)
Secure mount with charging pins
Lockable cradle for anti-tamper operation
Perfect for Bus Fleets
Dispatcher communication
Shift assignment
Driver behavior monitoring
Vehicle status reporting
Safety alerts & maintenance logs
Mobile Data Terminal for Bus & Truck
The MDT765 is a rugged vehicle-mounted mobile data terminal engineered for bus fleets. With strong connectivity, durable construction and advanced I/O interfaces, it functions as the central control hub for modern smart bus systems. Whether for route control, vehicle diagnostics, inspections or real-time passenger services, the MDT765 enables reliable and efficient daily operations across city buses and long-distance routes.
