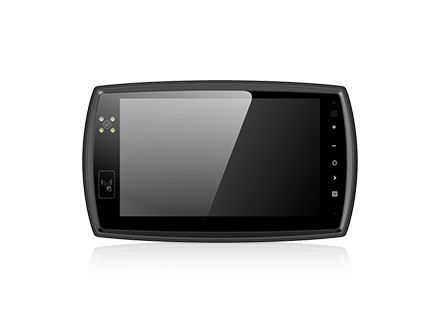

MDT750 (EOL)
MODEL: MDT750
- A legacy of previous MDT.
CPU: 1.2GHz quad core CPU
Display: 7“ colour TFT touch screen (1024x600, capacitive Touch panel)
Features: GPS, wifi, BT, camera, 2G/3G/4G, NFC, video input, Lora
ROM: 16G NAND flash (dual layout for flash and eMMC)
RAM (DDR): 2GB DDR3
Hardware
- CPU： 1.2GHz quad core CPU
- GPS: High sensitivity receiver, 64 channels
- Bluetooth： V2.1 and V4.0 with data transfer (OPP profile)
- MAGNETOMETER：Yes, optional
- WLAN：Wifi IEEE 802.11 b/g/n
- Display：7“ colour TFT touch screen (1024x600, capacitive Touch panel)
- Camera (back camera)：5Mpixel autofocus camera and flashlight
- Camera (front camera)：2Mpixel with 6 Infrared LED
- Antenna：Internal antenna
- LED indicator：Two-color LED (Red/Green)
- Light sensor：Yes, default
- GYROSCOPE：Yes, default
- RFID： Yes, optional
- G-sensor：Yes, default
- Analog video input ： Optional (share camera interface with front/back camera module)
- Wireless module： Optional, Lora module
Software
- Operating System：Android version 7.0
- Android applications： TBD
- Navigation software ： TBD
Packaging Details
- 1pc main unit and 1pc cradle
4G module / GPRS module
- From Quectel
- UC20G - GPRS 850/900/1800/1900, 3G UMTS 800/850/900/1900/2100
- With voice support
- ** compatible with 4G modem (EC25)
Memory
- ROM (SLC/MLC) ：16G NAND flash (dual layout for flash and eMMC)
- RAM (DDR)： 2GB DDR3
- Extend Slot： MicroSD ( TF ) card
Interface
- Mini USB Connector： USB2.0 connection and power charging
- Pago pins： Support serial port, USB, 12V input, ignition, eeprom
- SIM card slot：Yes
Battery
- Capacity： 4300mAh
- Standby： ~7 days
- Operating Time： ~4 hours
