8" IP67 Industrial Grade MDT Tablet for FMS
8" IP67 Industrial Grade MDT Tablet for FMS
8" IP67 Industrial Grade MDT Tablet for FMS
8" IP67 Industrial Grade MDT Tablet for FMS
8" IP67 Industrial Grade MDT Tablet for FMS
8" IP67 Industrial Grade MDT Tablet for FMS
8" IP67 Industrial Grade MDT Tablet for FMS
Model: MDT840
  • The mobile terminal designed for heavy duty truck fleet management system. Be adopted by field service provider, SaaS vendor and solution provider, warehouse operator, construction contractor, use for industrial applications.

    Truck driver use it for navigation, routing, dispatching, e-signatures, proof-of-delivery, order management, vehicle maintenance, fuel consumption management, logbook, and fleet operators use it for ELD and extend digital workflow to mobile vehicles, improving productivity.

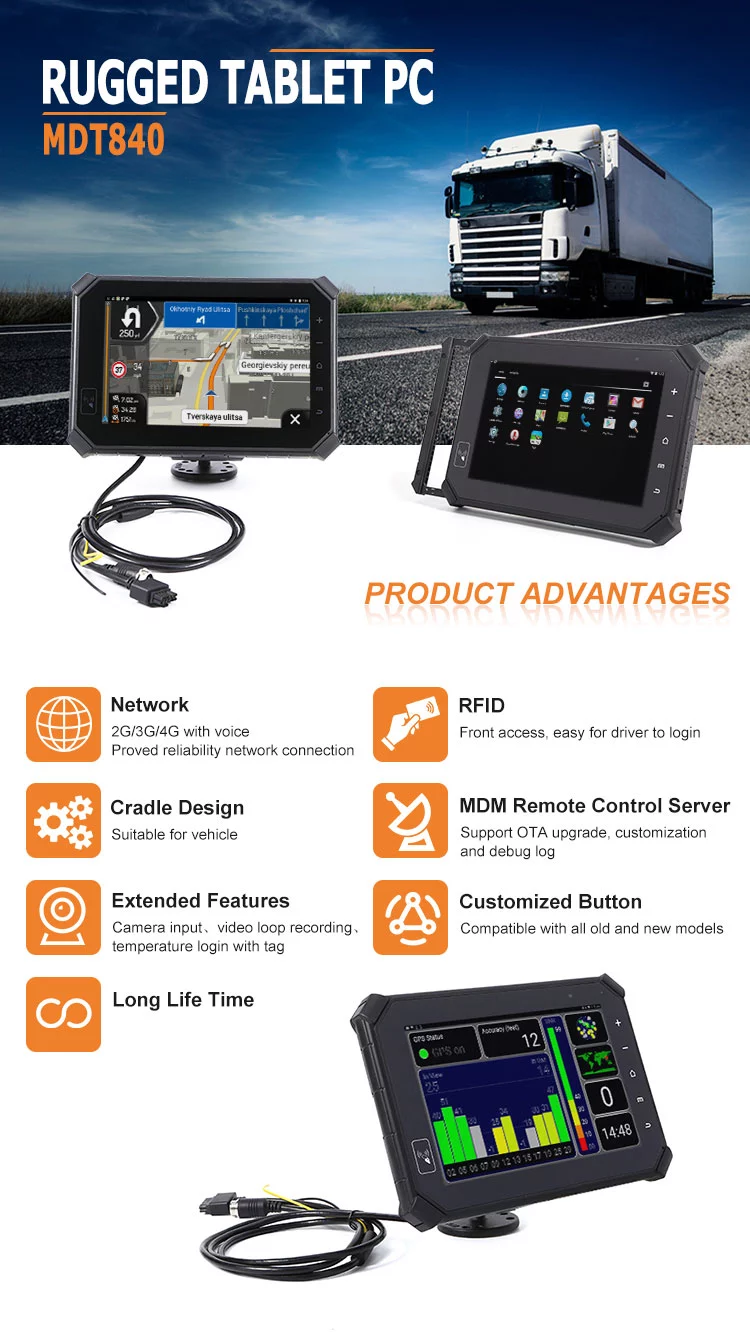

    MDT840 is a 8" IP67 industrial grade rugged tablet terminal. Equipped advanced GPS chiset, 4G/3G/WLAN module, with RFID, Bluetooth, camera and support hardware customization.

    Support MDM remote control server. Support OTA upgrading, firmware customization, APK integration and debug log.
Inquire Now






Hardware
  • CPU: MTK platform 1.5GHz quad core CPU
  • GPS : High sensitivity receiver, 64 channels
  • Display: 8“ colour TFT touch screen (1280x800, capacitive Touch panel)
  • Bluetooth: V2.1 and V4.0 with data transfer (OPP profile)
  • WLAN: Wifi IEEE 802.11 b/g/n
  • Camera (back camera): 8Mpixel autofocus camera and flashlight
  • Camera (front camera): Optional but not default
  • Analog video input : Default 1x analog camera video input
  • RFID: Yes, optional
  • G-sensor: Yes, default
  • Light sensor: Yes, default
  • GYROSCOPE: Yes, default
  • Wireless module: Optional, Lora module
  • Antenna: Internal antenna
  • LED indicator: Two-color LED (Red/Green)
  •
Software
  • Operating System: Android version 7.0
  • Android applications: TBD
  • Navigation software: TBD
  •
Packaging Details
  • 1pc main unit and 1pc cradle
  •
4G module / GPRS module
  • 2 version with voice call
  • EUR - (Europe market )
  • GSM : 900/1800Mhz
  • WCDMA – 850/900/2100Mhz
  • FDD (4G, EUR) – B1 , B3 , B5, B7, B8, B20
  • NAR- (North America market)
  • GSM : 850/1900MHz
  • WCDMA : 850/1700/1900Mhz
  • FDD (4G, NAR) – B2, B4, B5, B12, B17
  •
Memory
  • ROM (SLC/MLC) : 16G NAND flash (dual layout for flash and eMMC)
  • RAM (DDR): 2GB DDR3
  • Extend Slot: MicroSD ( TF ) card
  •
Interface
  • Mini USB Connector: USB2.0 connection and power charging
  • Pago pins: Support serial port, USB, 12V input, ignition, eeprom
  • SIM card slot:Yes
  •
Battery
  • Capacity: 6300mAh
  • Standby: ~7 days
  • Operating Time: ~6 hours
  •
