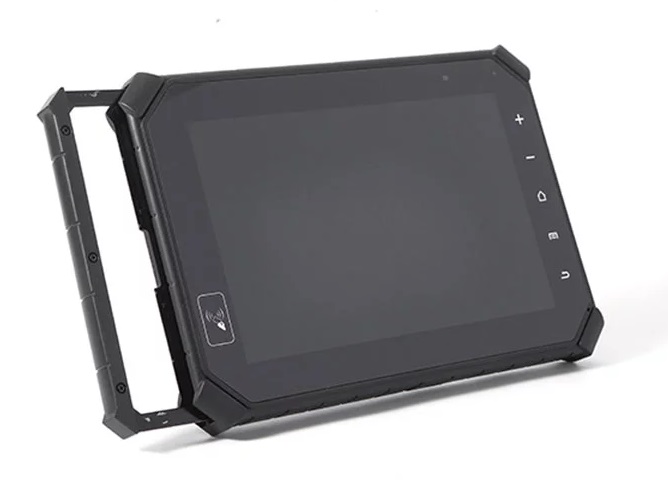

MDT864 8" Rugged Vehicle-mount Tablet
Model: MDT864
- MDT864 rugged industrial Vehicle-Mounted tablet，Shock-absorbing mount design.
Truck drivers use it for navigation, routing, dispatching, e-signatures, proof-of-delivery, order management, vehicle maintenance, fuel consumption management, logbook, and fleet operators use it for ELD and extend digital workflow to mobile vehicles, improving productivity.
MDT864 is a high-performance tablet terminal with 8" display, IP67 rated. Equipped with octa core processor, advanced GPS chipset, 4G/3G/WLAN module, with RFID, Bluetooth, camera and support hardware customization.
Support MDM remote control server. Support OTA upgrading, firmware customization, APK integration and debug log.
Hardware
- CPU： MTK platform 2GHz octa core CPU
- GPS ： High sensitivity receiver, 64 channels
- Display： 8“ colour TFT touch screen (1280x800, capacitive Touch panel)
- Bluetooth： V2.1 and V4.0 with data transfer (OPP profile)
- WLAN： Wifi IEEE 802.11 b/g/n
- Camera (back camera)： 16Mpixel autofocus camera and flashlight
- Camera (front camera)： Optional but not default
- Video input: support the channels ADH720P,1080P and analog
- RFID： Yes, optional
- G-sensor： Yes, default
- Light sensor： Yes, default
- GYROSCOPE： Yes, default
- Wireless module： Optional, Lora module
- Antenna： Internal antenna
- LED indicator： Two-color LED (Red/Green)
Software
- Operating System： Android 14 with GMS or without GMS
- Android applications： TBD
- Navigation software： TBD
Packaging Details

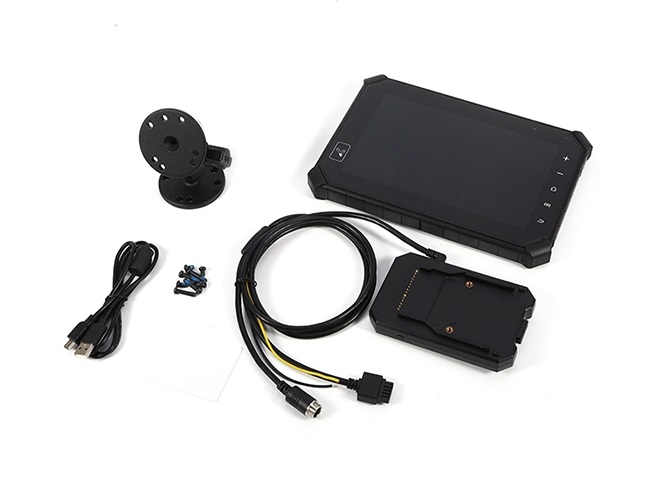

- 1pc main unit and 1pc cradle, 1pc RAM Mount, 1pc USB cable, 1pc NFC card
4G module / GPRS module
- 2G-GSM: 850,900,1800,1900
- 3G-WCDMA: B1,B2,B4,B5,B8
- 4G-LTE FDD:B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B28
- 4G-LTE TDD:B40,B38,B41
Memory
- ROM (SLC/MLC) ： 64G NAND flash (dual layout for flash and eMMC)
- RAM (DDR)： 4GB DDR4
- Extend Slot： MicroSD ( TF ) card
Interface
- Type C USB Connector： USB2.0 connection and power charging
- Pogo pins： Support serial port, USB, 12V input, ignition, eeprom
- SIM card slot：Yes
Battery
- Capacity： 6300mAh
- Standby： ~5 days
- Operating Time： ~7 hours
