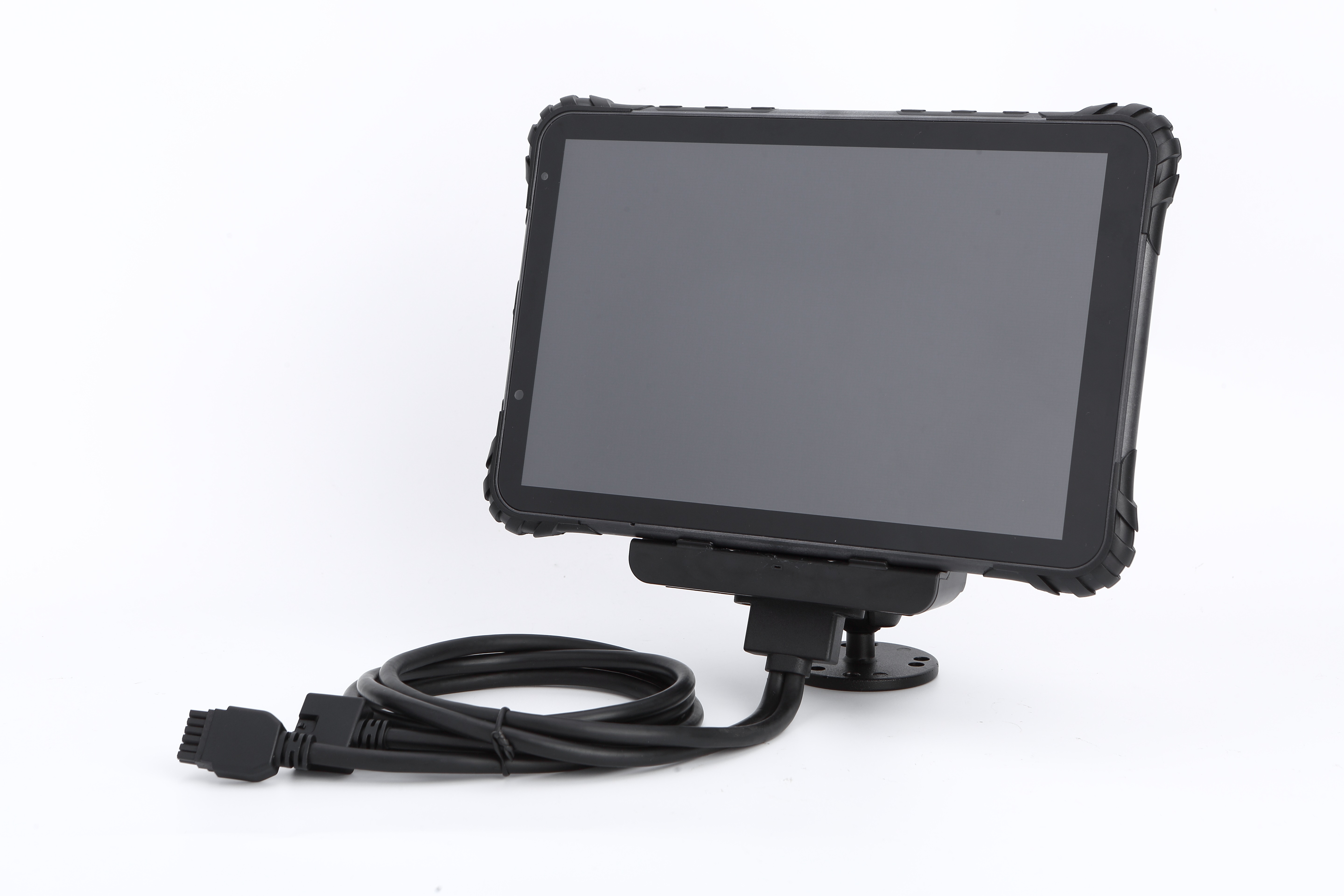

10'' rugged android tablet support vehicle cradle and desk station
10'' rugged android tablet support vehicle cradle and desk station
10'' rugged android tablet support vehicle cradle and desk station
10'' rugged android tablet support vehicle cradle and desk station
10'' rugged android tablet support vehicle cradle and desk station
10'' rugged android tablet support vehicle cradle and desk station
Model: MDT1060/1065
  • The mobile terminal designed for heavy duty truck fleet management system and Enterprise Work Field. Be adopted by field service provider, SaaS vendor and solution provider, warehouse operator, construction contractor, use for industrial applications.

    Truck drivers use it for navigation, routing, dispatching, e-signatures, proof-of-delivery, order management, vehicle maintenance, fuel consumption management, logbook, and fleet operators use it for ELD and extend digital workflow to mobile vehicles, improving productivity.

    MDT1060/1065 is a high-performance tablet terminal with 10" display, IP67 rated. Equipped with octa core processor, advanced GPS chipset, 4G/3G/WLAN module, with RFID, Bluetooth, camera and support hardware customization. Battery replaceable, can be charging by vehicle or by desktop charging station.

    Support MDM remote control server. Support OTA upgrading, firmware customization, APK integration and debug log.
Inquire Now







Hardware
  • CPU: MTK platform 2GHz octa core CPU
  • GPS : High sensitivity receiver, 64 channels
  • Display: 10inch, IPS panel (1920 x 1200 pixel)
  • Bluetooth: V2.1 and V4.0 with data transfer (OPP profile)
  • WLAN: Wifi IEEE 802.11 b/g/n
  • Camera (back camera): 16Mpixel autofocus camera and flashlight
  • Camera (front camera): 8Mpixel
  • Video input :Support one channel AHD 720P,1080P and analog
  • camera (w/Cradle)
  • Support four channels AHD 720P,1080P and analog
  • camera (w/Camera Hub)
  • RFID: Yes, optional
  • G-sensor: Yes, default
  • Light sensor: Yes, default
  • GYROSCOPE: Yes, default
  • Wireless module: Optional, Lora module
  • Scanner module: Yes, optional
  • Antenna: Internal antenna
  • LED indicator: Two-color LED (Red/Green)
  •
Software
  • Operating System: Android version 11.0 or 12.0 (default)
  • Android applications: TBD
  • Navigation software: TBD
  •
Packaging Details
  • 1pc main unit and 1pc cradle(Vehicle cradle or desktop dock station), 1pc RAM Mount, 1pc USB cable , 1pcs High power car charger, 1pc NFC card,, 1pcs High power home adapter, 1pcsType C cable for home adapter
  •
4G module / GPRS module
  • Radio Frequency
  • GSM: 850/900/1800/1900MHz
  • WCDMA: B1/B2/B4/B5/B8
  • LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28
  • LTD TDD: B38/B40/B41
  •
Memory
  • ROM (SLC/MLC) : 32G NAND flash (dual layout for flash and eMMC)
  • RAM (DDR): 4GB DDR4
  • Extend Slot: MicroSD ( TF ) card
  •
Interface
  • Type C USB Connector: USB2.0 connection and power charging
  • Pogo pins: Support serial port, USB, 12V/24V input, ignition, eeprom
  • SIM card slot:Yes two nano SIM
  •
Battery
  • Capacity: 7600mAh replaceable
  • Standby: ~ 5.5 days (MDT1060)
  • Operating time: ~5 hours (MDT1060)/ ~4 hours (MDT1060)
  •
