4.3" Portable Handheld MDT for Navigation(EOL)
MODEL: MDT430

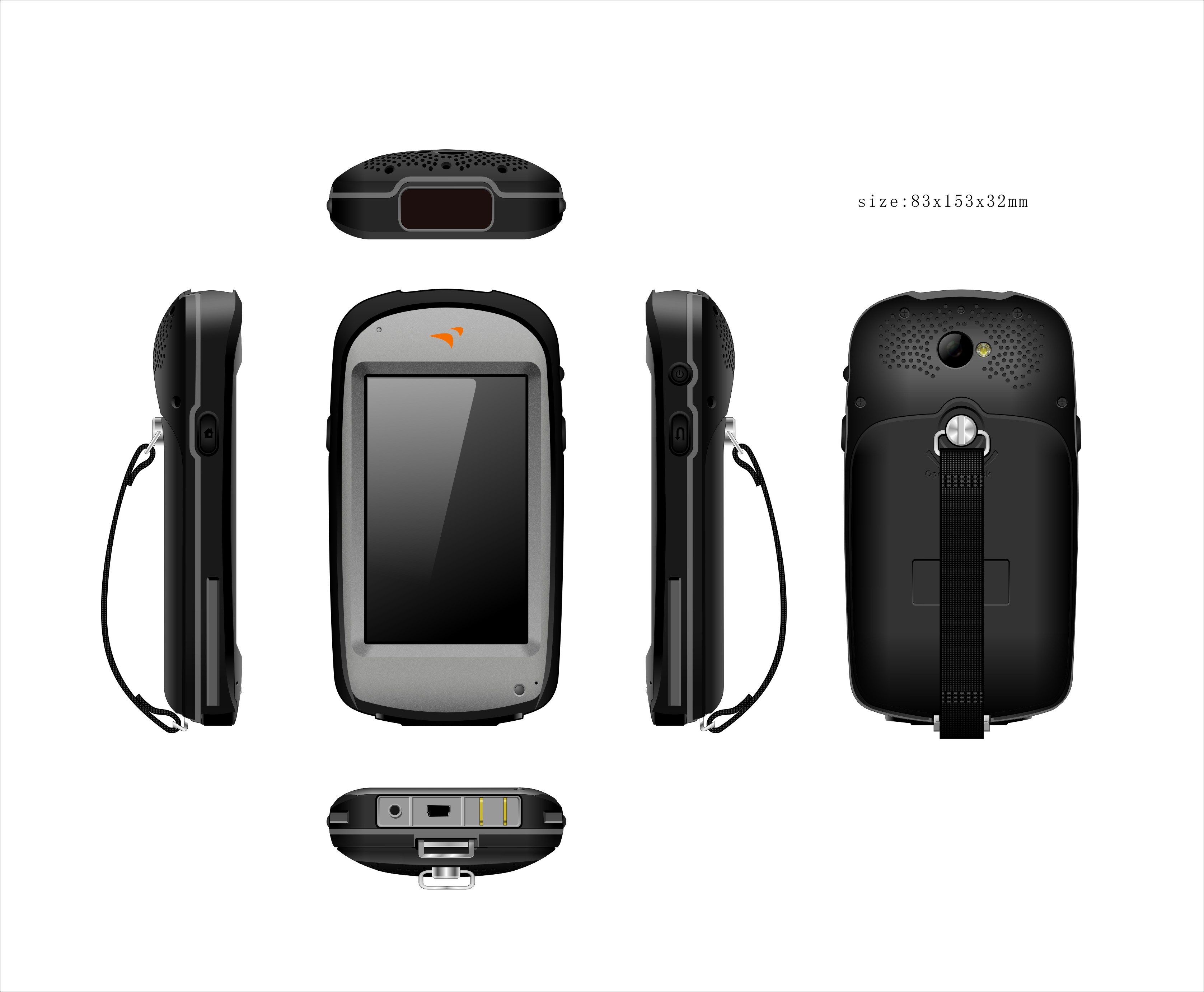

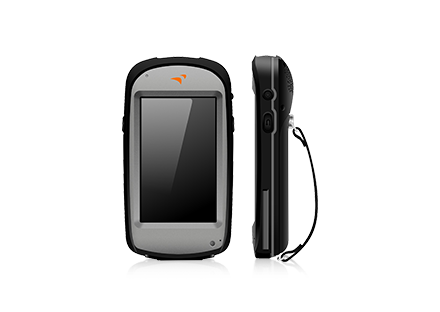

- The MDT430 is a 4.3 inch portable handheld MDT terminal for light commercial vehicles, driver can use it for navigation, messaging, make phone call on the road, etc.
The mobile device equipped with 4.3" colour TFT touch screen, GPS, WiFi, Bluetooth, camera, 2G/3G/4G network. 4G NAND Flash ROM, 512MB DDR3 RAM.
Support customization of logo, splash screen, firmware, remote management, OTA upgrading.
Hardware
- CPU:1Ghz
- GPS: High sensitivity receiver, 64 channels
- GSM/GPRS module: Quad brand EGSM 850/900/1800/1900
- GPRS Functionality: GPRS class 10, GPRS CS 1 to 4 coding scheme supported
- Bluetooth: V2.1 with data transfer(OPP profile)
- WLAN: WIFI IEEE 802.11 b/g
- Camera: 5M pixel camera with autofocus
- Barcode reader: 1D or 1D/2D hardware decode module
- RFID: HF 13.56Mhz(ISO14443/15693)
- Display:4.3" colour TFT touch screen (800x480, capacitive touch panel)
- Antenna :Internal antenna
- Connectivity: USB client for mass storage
- Audio: Yes, 2,5mm mini headphone jack
- LED indicator: Two-color LED (Red/Green)
Software
- Operating System: Android version 4.0.4
- Android applications: Games, pdf reader, multimedia player, calculator, calendar and etc
- Navigation software: nDrive, IGO, Navitel, Sygic and etc
Packaging Details
- 1pc main unit and 1pc cradle
4G module / GPRS module
- From Telit mode, 2 version
- EUR - GPRS 900/1800, 3G 900/2100
- NAR – GPRS/3G - 850/1900
- With voice support
Memory
- ROM (SLC/MLC): 4G NAND Flash
- RAM (DDR):512MB DDR3
- Extend Slot: Micro SD (TF) card
Interface
- Mini USB Connector:USB2.0 connection and power charging
- Audio: Yes
- SIM card slot: Yes
Battery
- Capacity： 2500mAh
- Standby： ~4 days
- Operating Time： ~3 hours
