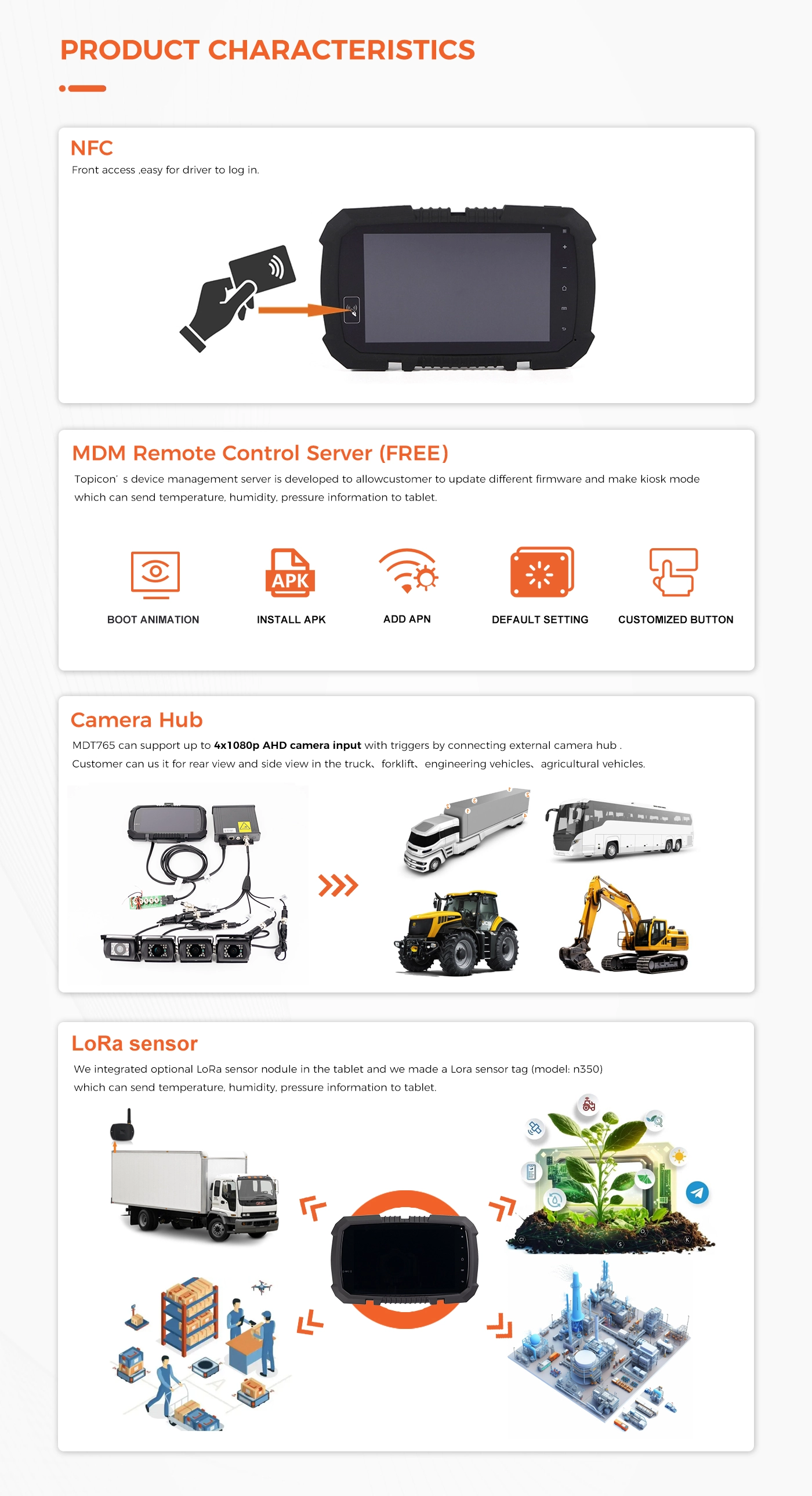

It equipped 7" display, 2G/3G/4G mobile network module, NFC card reader. With option of LoRa and camera system. It supports up to 4×1080p AHD camera input by combine with TOPICON camera hub device, truck driver can use it for real view and side view to ensure the safety. Thanks to the dedicated cradle it supports data interchange with vehicle RS232 interface. Advanced GPS chipset make navigation more accurate.
Support MDM remote control server. Support OTA upgrading, firmware customization, APK integration and debug log.
FAQ – MDT765 Mobile Data Terminal for Bus and Truck Operations
1. What is the MDT765 Mobile Data Terminal used for on buses?
The MDT765 is a rugged 7-inch Android terminal designed for bus and truck cabins. It supports route navigation, driver HMI dashboards, ticketing systems, diagnostics displays, passenger information, and fleet telematics. Its IP67 protection and secure vehicle cradle ensure reliability in daily transit environments.
2. Can the MDT765 withstand long-hour operations on city buses?
Yes. MDT765 is built for long-hour fleet usage with a 2.0GHz octa-core processor, stable 9–36V vehicle power, wide operating temperature of -10°C to 60°C, and a vibration-resistant cradle with charging pins. It remains stable during continuous bus and truck operations.
3. Is the MDT765 compatible with bus ticketing or fare collection systems?
Yes. With RS232, USB Type-C OTG, and optional docking-station I/O, the MDT765 integrates with ticket validators, NFC card readers, QR code scanners, receipt printers, and driver consoles used in bus fare collection.
4. How does MDT765 support real-time bus tracking?
The MDT765 includes 4G LTE, GNSS + GLONASS + Galileo + A-GPS, providing accurate real-time location, stop-to-stop tracking, ETA calculation, and integration with AVL/AVM fleet management platforms.
5. Can drivers perform vehicle status checks using the MDT765?
Yes. Through RS232 communication, digital sensors, and optional docking-station I/O, the MDT765 can interface with door signals, brake sensors, battery status, fuel levels, and engine data for vehicle condition monitoring.

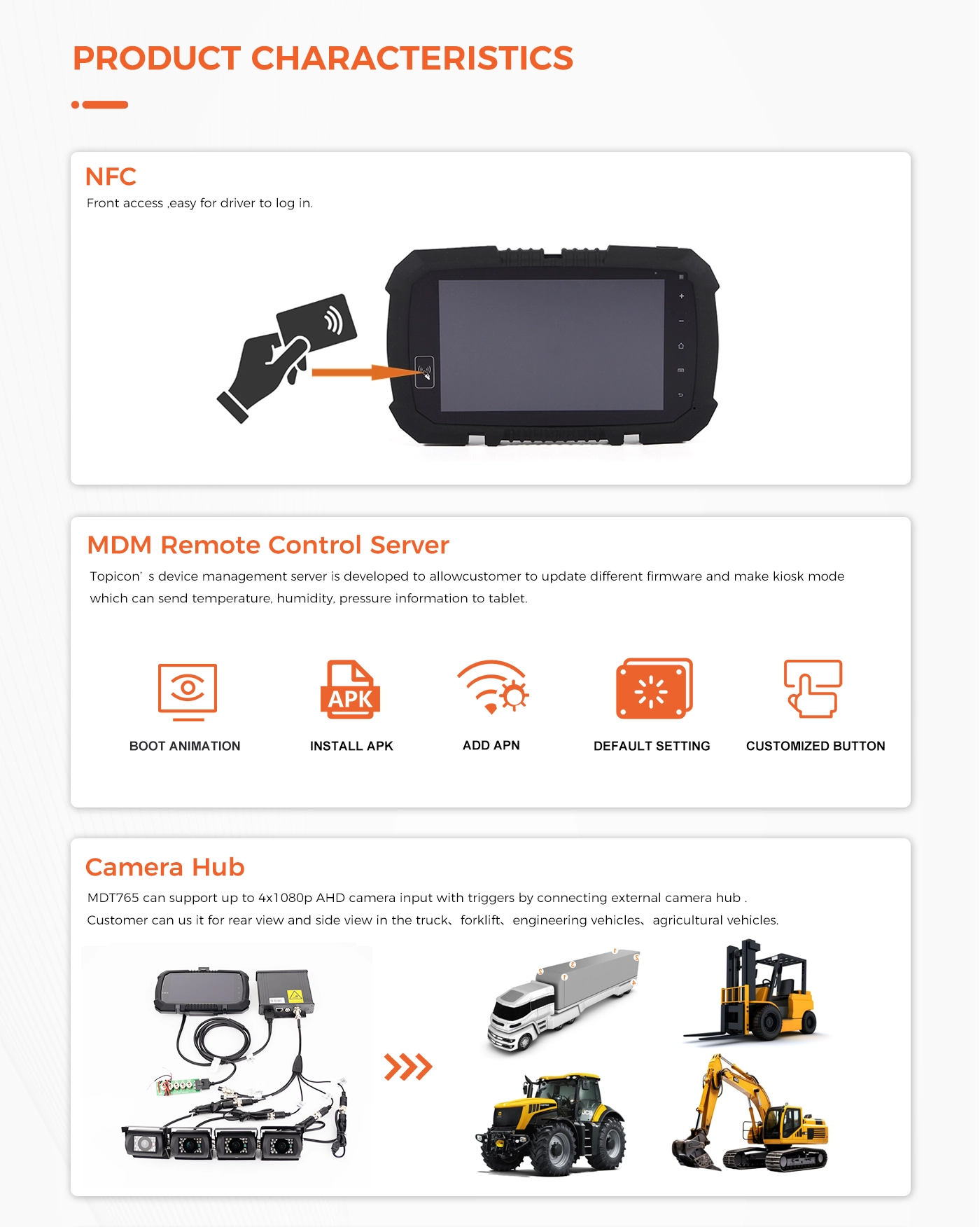

6. Does MDT765 support dash cameras or AHD bus cameras?
Yes.

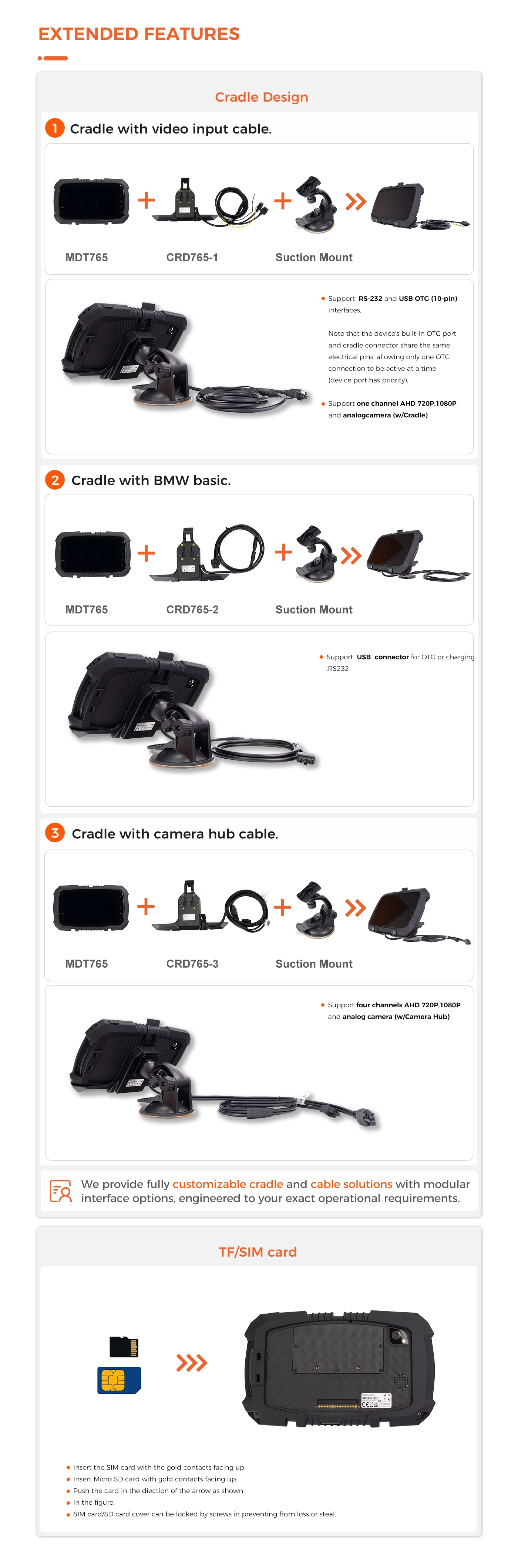

With cradle: Supports 1 channel AHD 720P / 1080P camera
With camera hub: Supports up to 4 channels AHD 720P / 1080P / analog cameras
Ideal for driver-view, rear-view, door-side, and blind-spot camera applications.
7. Can MDT765 be mounted inside different types of buses?

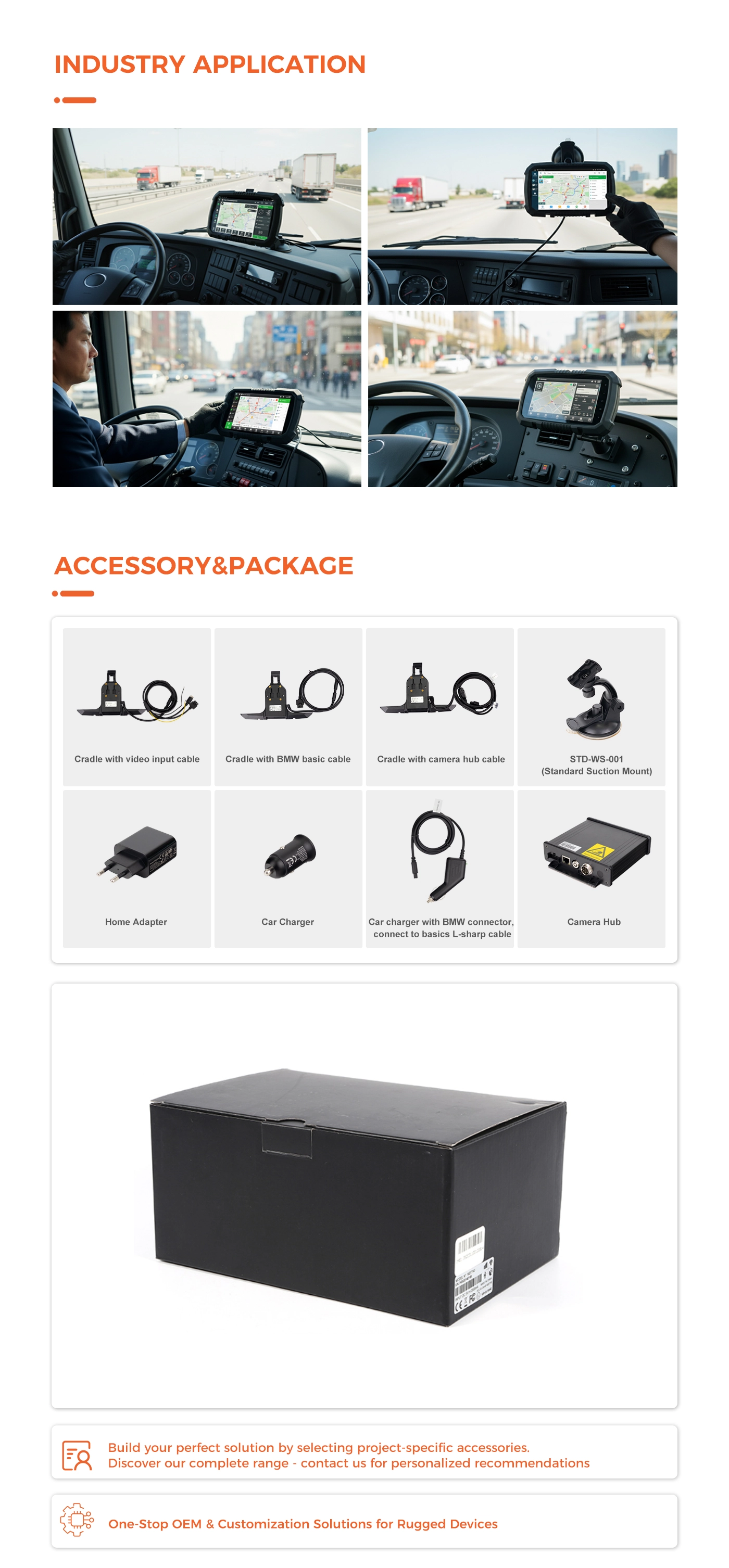

Yes. MDT765 can be installed on city buses, school buses, intercity coaches, shuttle buses, airport buses, and electric buses. Mounting options include a lockable vehicle cradle, dashboard metal mount, and pole/rail mounting brackets.
8. Does MDT765 support bus fleet management platforms?
Yes. MDT765 works seamlessly with cloud-based fleet management, dispatch systems, bus scheduling software, and telematics platforms through its 4G, WiFi, and multi-GNSS positioning.
9. How does MDT765 ensure stable network coverage on long-distance routes?
The MDT765 supports multi-band LTE for broad regional coverage and offers reliable telemetry uploads, real-time video capture via AHD cameras, and uninterrupted data service for fleet applications.
10. Can TOPICON provide SDK/API for system integrators?
Yes. SDK packages include:
Android API
Serial & GPIO libraries
AHD camera access API
Power/IGN control API
These tools simplify integration with ticketing, dispatching, and fleet management programs.
MDT765 for Bus & Truck Operations - Feature Highlights
Driver-Friendly 7-inch In-Cab Display
The MDT765 uses a 7-inch IPS screen (1280×600) with glove and wet-touch support, offering clear visuals for drivers under strong sunlight exposure from large bus windshields.
Fully Integrated with Bus Telematics Systems
Multi-GNSS: GPS / GLONASS / Galileo / A-GPS
Up to 4-channel AHD camera support
RS232 for ticket validators and onboard devices
Wi-Fi 802.11a/b/g/n/ac for depot updates
Optional docking-station I/O for additional sensors
Compatible with Passenger Information Systems
Supports applications including:
Automatic passenger counting (APC)
Stop announcement control
Digital signage updates
Route and map synchronization
Rugged Design for Harsh Transit Environments
IP67 protection
1.2m drop resistance
-10°C to 60°C operational temperature

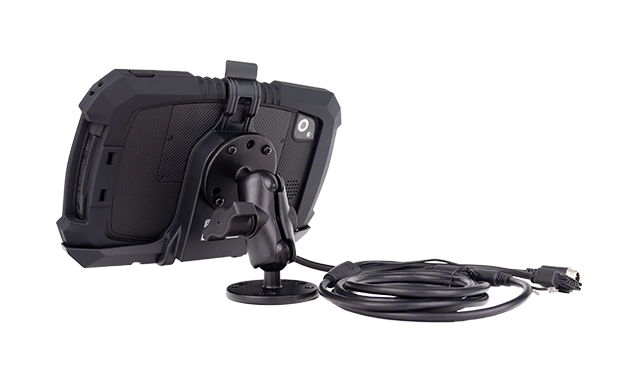

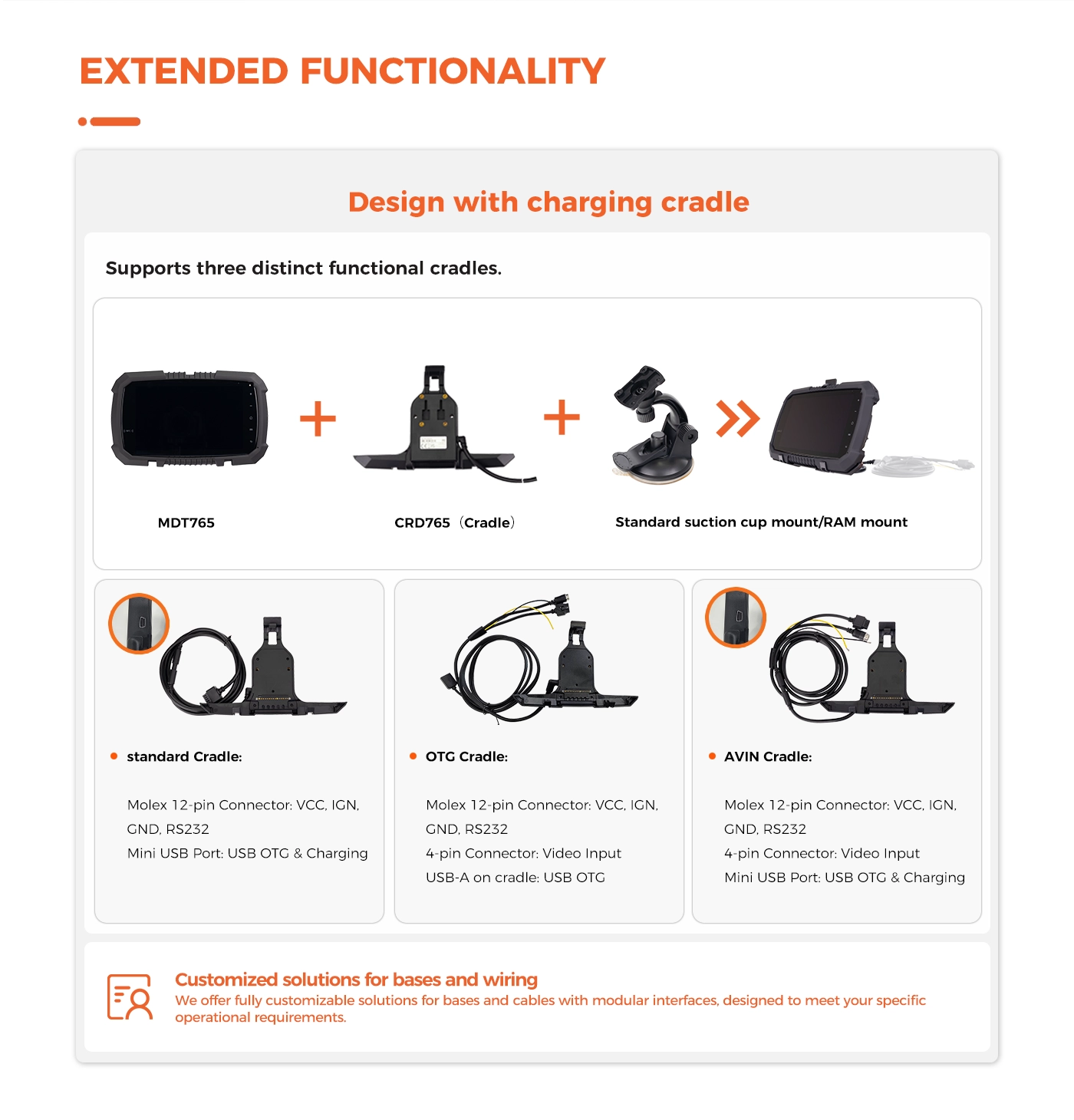

Lockable cradle with charging pins
Stable performance on high-vibration bus dashboards

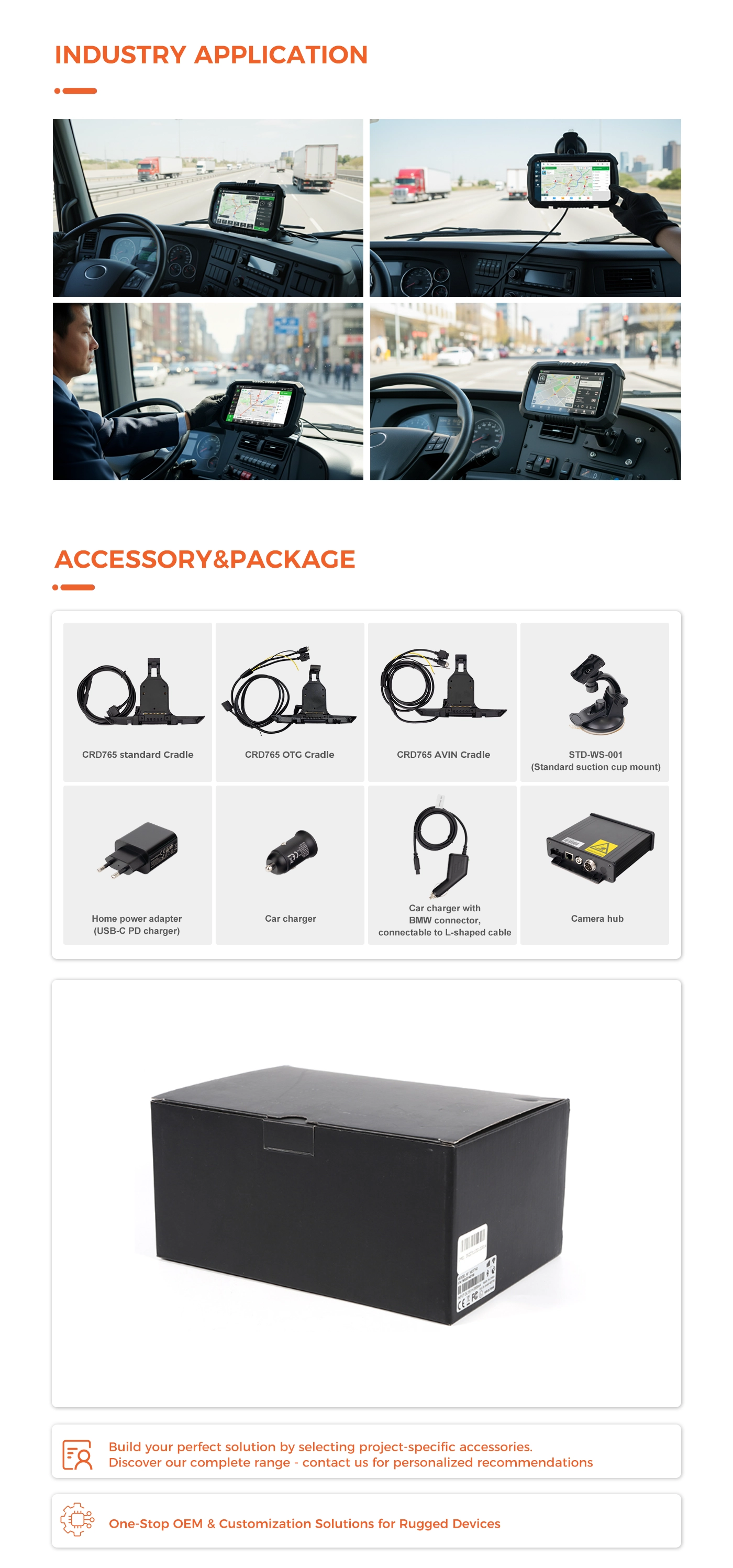

Ideal for Bus & Truck Fleets
Dispatcher communication
Driver behavior monitoring
Maintenance and fault alerts
Shift assignment
Vehicle inspection workflows
Fleet performance tracking

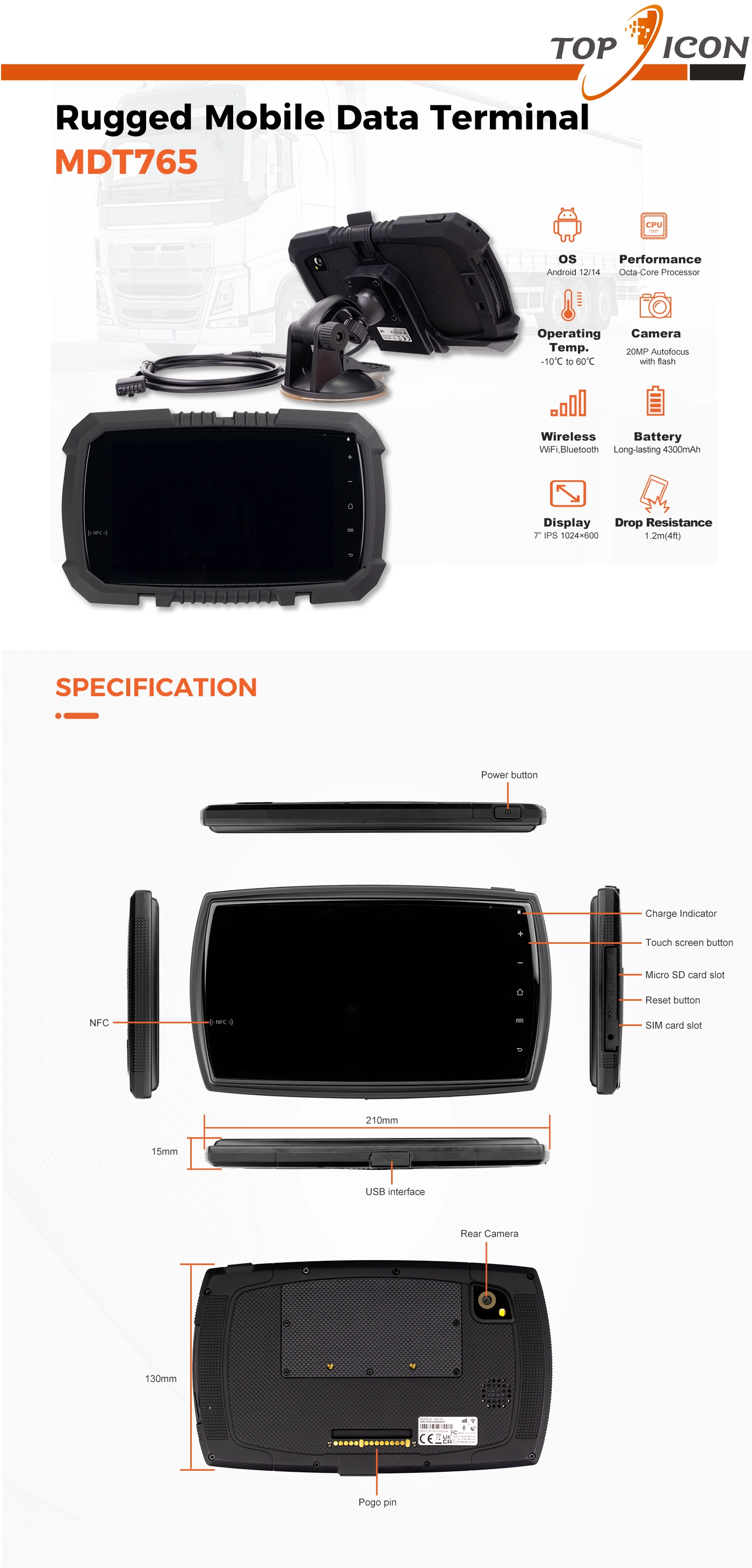

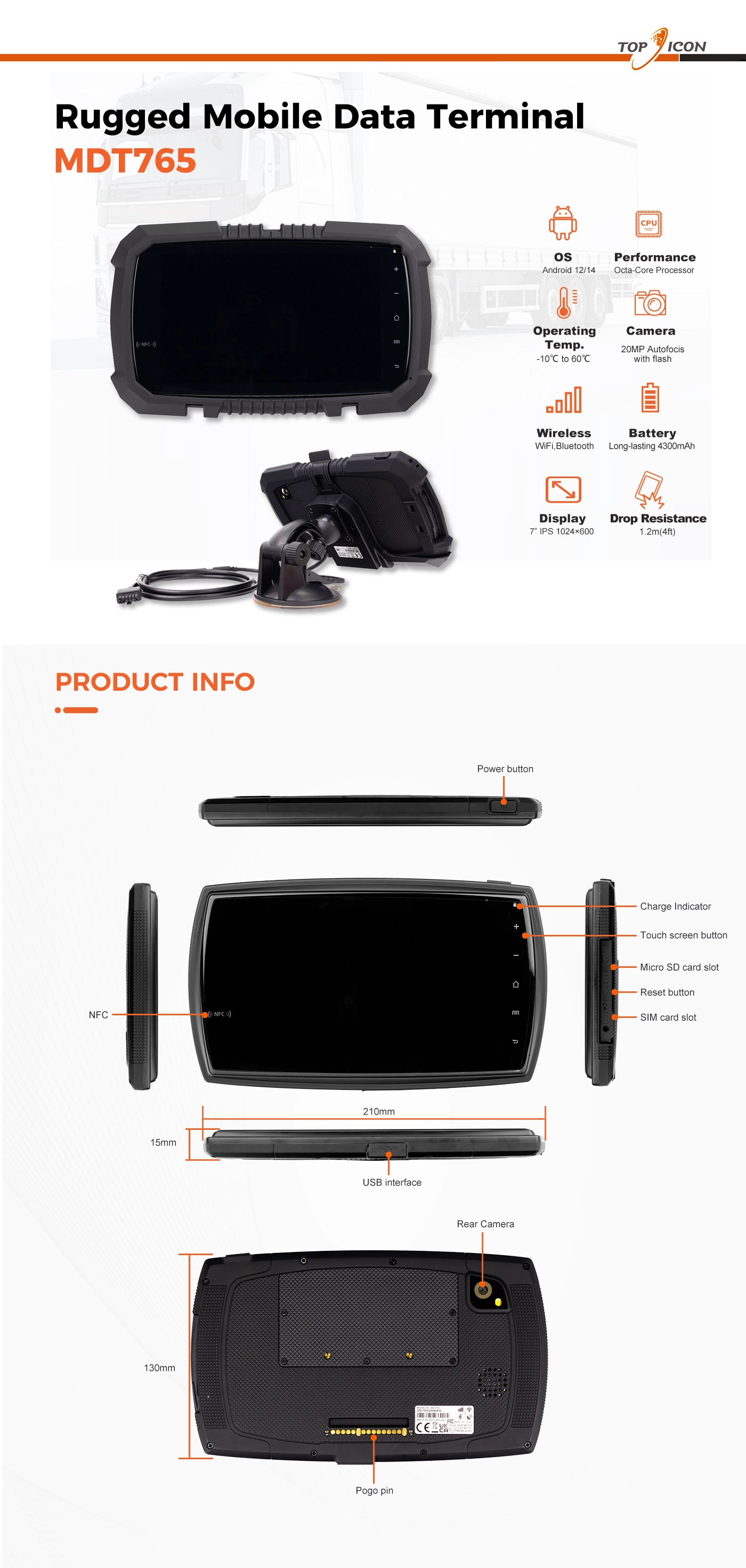

Mobile Data Terminal for Bus & Truck
The MDT765 is a durable Android-based 7-inch vehicle-mounted mobile data terminal engineered for modern bus and truck fleets. With strong wireless connectivity, AHD camera integration, RS232 interfaces, and rugged IP67 protection, it acts as the central control hub for navigation, diagnostics, ticketing, and telematics. From city buses to long-distance trucks, the MDT765 delivers reliable and efficient daily operational support.
