BKT865-IP Fixed Metal Dock with Waterproof Connector
Fixed heavy-duty metal docking station for the MDT880 and MDT865 rugged tablets, equipped with an IP-rated waterproof connector. Provides stable vehicle power and one RS232 serial channel through a sealed cable assembly designed for permanent installation in washdown, moisture-exposed, and outdoor environments.
Part of the BKT865 fixed-mount series — the same heavy-duty metal architecture used across the MDT865 and MDT880 platform, engineered for dashboards, equipment panels, and industrial HMI stations where the tablet is permanently secured and the cable interface must survive water spray, dust, and temperature cycling.

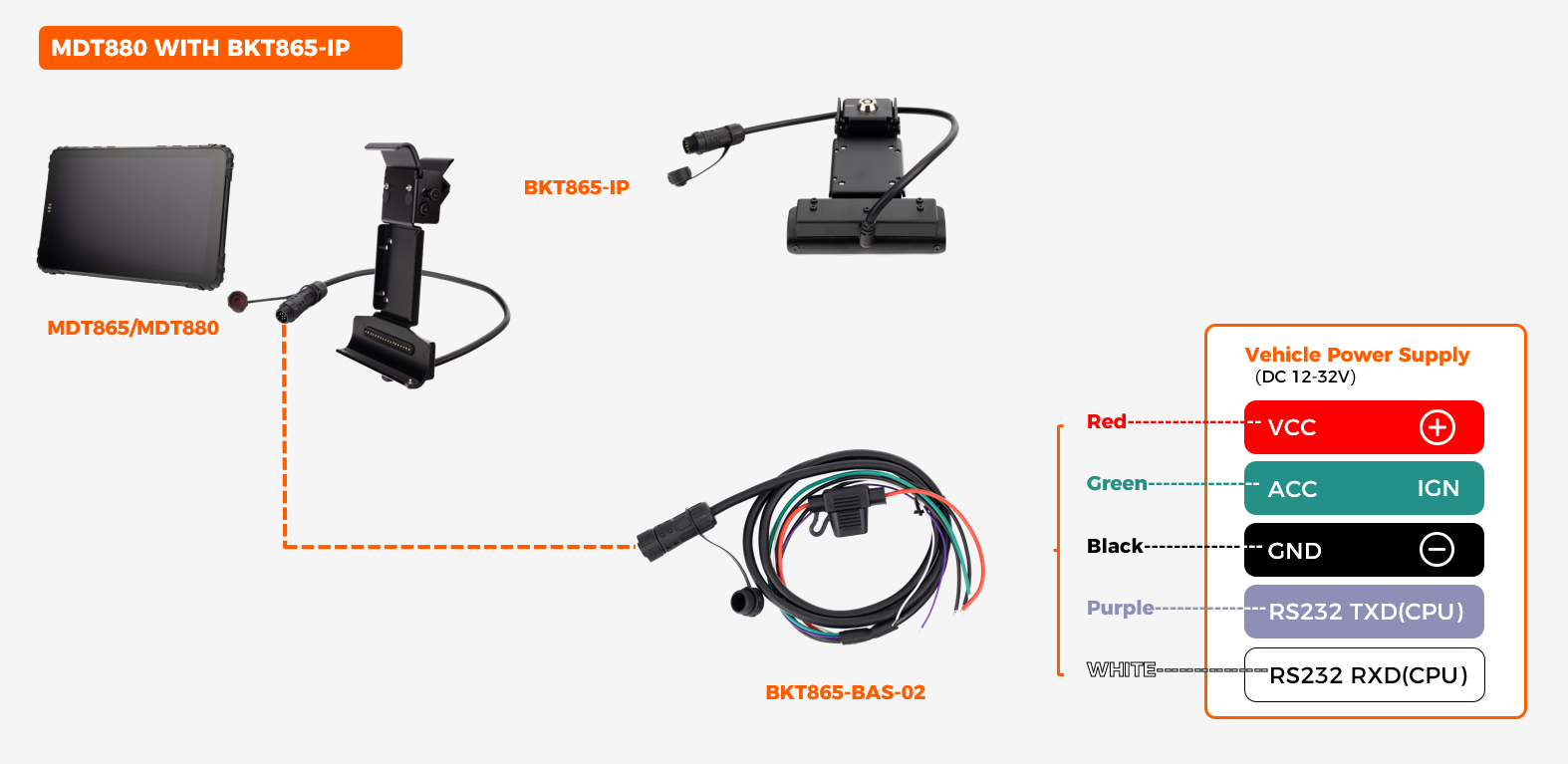

BKT865-IP Cradle with BKT865-BAS-02 Waterproof Cable
Provides a single RS232 serial channel and stable vehicle power through an IP-rated waterproof connector. Suitable for permanent installations where the cable interface is exposed to water spray, rain, or routine washdown — mining equipment, agricultural machinery, outdoor signage, and wash-bay installations.
Interface Summary
Where Waterproof Connections Matter
A standard connector relies on simple mating pressure to hold the cable in place. In washdown environments, water can enter the contact interface and corrode the pins over time — causing intermittent RS232 communication failures long before the dock itself shows physical wear. The BKT865-IP uses a sealed connector that maintains a watertight barrier around the contact pins, protecting the serial link through routine cleaning, rain, and chemical spray.
Deployment Scenarios
Continuous exposure to dust, mud, and high-pressure cleaning that would compromise a standard connector.
Field washdown and chemical spray environments where sealed connections extend equipment uptime.
Signage, kiosks, and equipment panels exposed to rain, road spray, and temperature cycling year-round.
When to Choose BKT865-IP
Select BKT865-IP when your deployment requires a permanent metal mount with a sealed cable interface that survives moisture and washdown — mining equipment, agricultural machinery, outdoor signage, and any installation where the cable connection is exposed to the elements. It is the appropriate choice when the tablet is used primarily for one RS232 peripheral (diagnostics dongle, weighbridge display, or serial sensor) and vehicle power, and when the connector itself must not corrode over years of field operation. If your deployment operates in a controlled cab environment, the standard BKT865-BMW offers the same physical mount with a conventional connector at lower cost.
Wiring examples shown — not all configurations. Pin-out details, cable lengths, waterproof connector coding, and cable part numbers may vary by production batch. For the full datasheet with dimensioned drawings and BKT865-BAS-02 cable specifications, contact our engineering team.
Compatible Tablet Platforms
This fixed metal dock supports two tablet models
The BKT865-IP mounts to the MDT880 mechanical interface and provides VCC/IGN DC12–32V input and one RS232 channel through the sealed BKT865-BAS-02 cable.
The BKT865-IP also supports the MDT865 with DC12–36V input tolerance. Same physical mount, same RS232 serial interface, same waterproof connector architecture.
For a complete list of docks and cradles compatible with the MDT880 and MDT865, refer to the docking station configuration matrix →
