BKT865-LAN-02 Fixed Metal Dock with Integrated Barcode Scanner
Fixed heavy-duty metal docking station for the MDT880 and MDT865 rugged tablets, with a built-in 1D/2D barcode scanner. Powered through USB-C, the dock integrates a hands-free scanning station, optional RJ45 Ethernet, and a standard USB-C-to-C cable — replacing the need for a separate barcode scanner peripheral at fixed operator stations.
Part of the BKT865 fixed-mount series — the same heavy-duty metal architecture used across the MDT865 and MDT880 platform. The LAN-02 configuration is the scanning variant of the series, providing a dedicated barcode imager built into the cradle. Designed for warehouse check-in stations, dock doors, and inventory control points where the tablet is permanently mounted and operators scan items directly at the terminal.
BKT865-LAN-02 Cradle with 1D/2D Barcode Imager and Optional Ethernet
Provides a built-in 1D/2D barcode scanner, optional RJ45 Ethernet, and a USB-C charging input through the included USB-C-to-C cable. Unlike other BKT865 variants, the LAN-02 is powered via USB-C rather than the vehicle VCC/IGN input — suitable for desktop, workstation, and non-vehicle installations where a power adapter or USB-C power source is available.
Interface Summary
Note: The BKT865-LAN-02 is powered by USB-C rather than the vehicle VCC/IGN input used by other BKT865 variants. It is designed for fixed workstation environments — warehouse check-in desks, dock doors, inventory control points — where a USB-C power source is available. It does not support vehicle electrical systems directly.
What a Built-In Barcode Imager Enables
The barcode imager is integrated into the cradle itself, positioned to read labels presented by the operator without requiring a separate handheld scanner. This eliminates the extra device, its cable, and the pairing step that handheld scanners normally need — the tablet receives scan data directly through the dock interface. The result is a single fixed terminal that both displays information and captures barcode input.
Typical Scanning Applications
Inbound shipment verification at receiving docks — scan carton labels directly at the terminal.
Cycle counting and stock adjustment stations where operators scan items into the tablet.
Outbound load confirmation and manifest scanning at fixed dock positions.
Fixed Station Power via USB-C
Instead of a vehicle VCC/IGN input, the LAN-02 is powered through a USB-C connection using the included USB-C-to-C cable. This makes it appropriate for stationary installations — reception desks, packing stations, dock offices — where a standard USB-C power adapter (compatible with the tablet's charging requirements) provides continuous power. No vehicle wiring is required.
Ideal For
Fixed scanning station at warehouse offices, gate houses, and dispatch counters.
Outbound packing verification where operators scan each item before sealing.
Any permanent station where the tablet does not connect to vehicle electrical systems.
When to Choose BKT865-LAN-02
Select BKT865-LAN-02 when your installation requires a fixed docking station with built-in barcode scanning capability and USB-C power — warehouse check-in desks, packing stations, inventory control points, and dock offices where the tablet is stationary and a standard USB-C power source is available. It combines the imager and the dock into one device, eliminating a separate handheld scanner. If your deployment requires vehicle power input (VCC/IGN), the other BKT865 variants — BMW, IP, OTG, or LAN-01 — provide that interface. If your deployment requires RS232 serial connectivity, LAN-02 does not provide it; the BKT865-LAN-01 includes RS232 alongside M12 Ethernet.

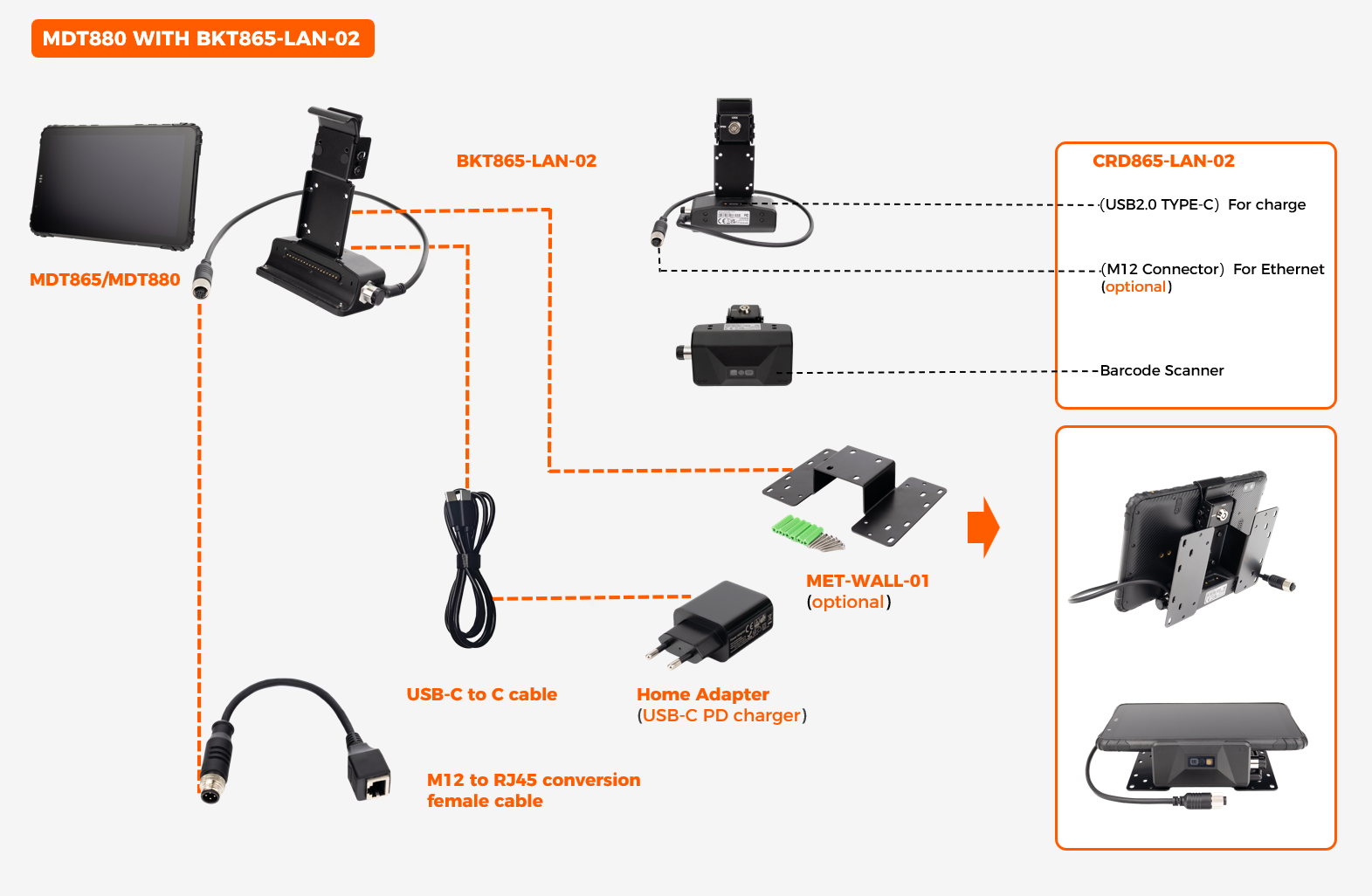

Wiring examples shown — not all configurations. Pin-out details, cable lengths, USB-C power requirements, and cable part numbers may vary by production batch. For the full datasheet with dimensioned drawings and BKT865-LAN-02 cable specifications, contact our engineering team.
Compatible Tablet Platforms
This fixed metal dock supports two tablet models
The BKT865-LAN-02 mounts to the MDT880 mechanical interface and provides USB-C power, optional RJ45 Ethernet, and integrated 1D/2D barcode scanning for fixed workstations.
The BKT865-LAN-02 also supports the MDT865. Same physical mount, same USB-C power input, same integrated barcode scanner and optional Ethernet interface.
For a complete list of docks and cradles compatible with the MDT880 and MDT865, refer to the docking station configuration matrix →
