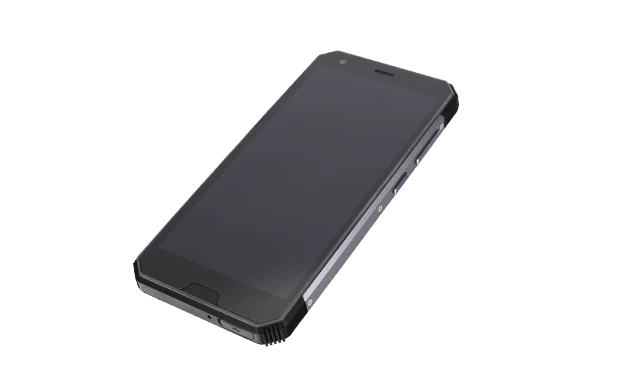

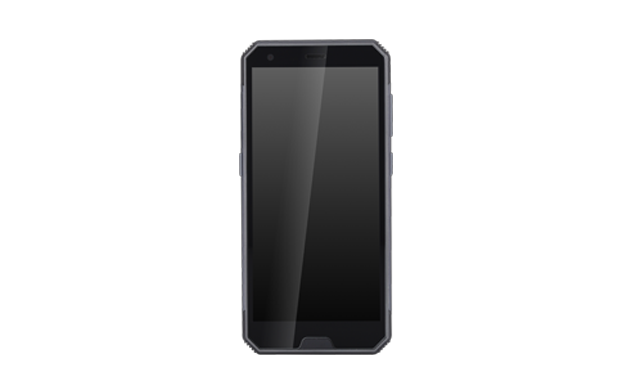

MDT661
5.72" rugged handheld

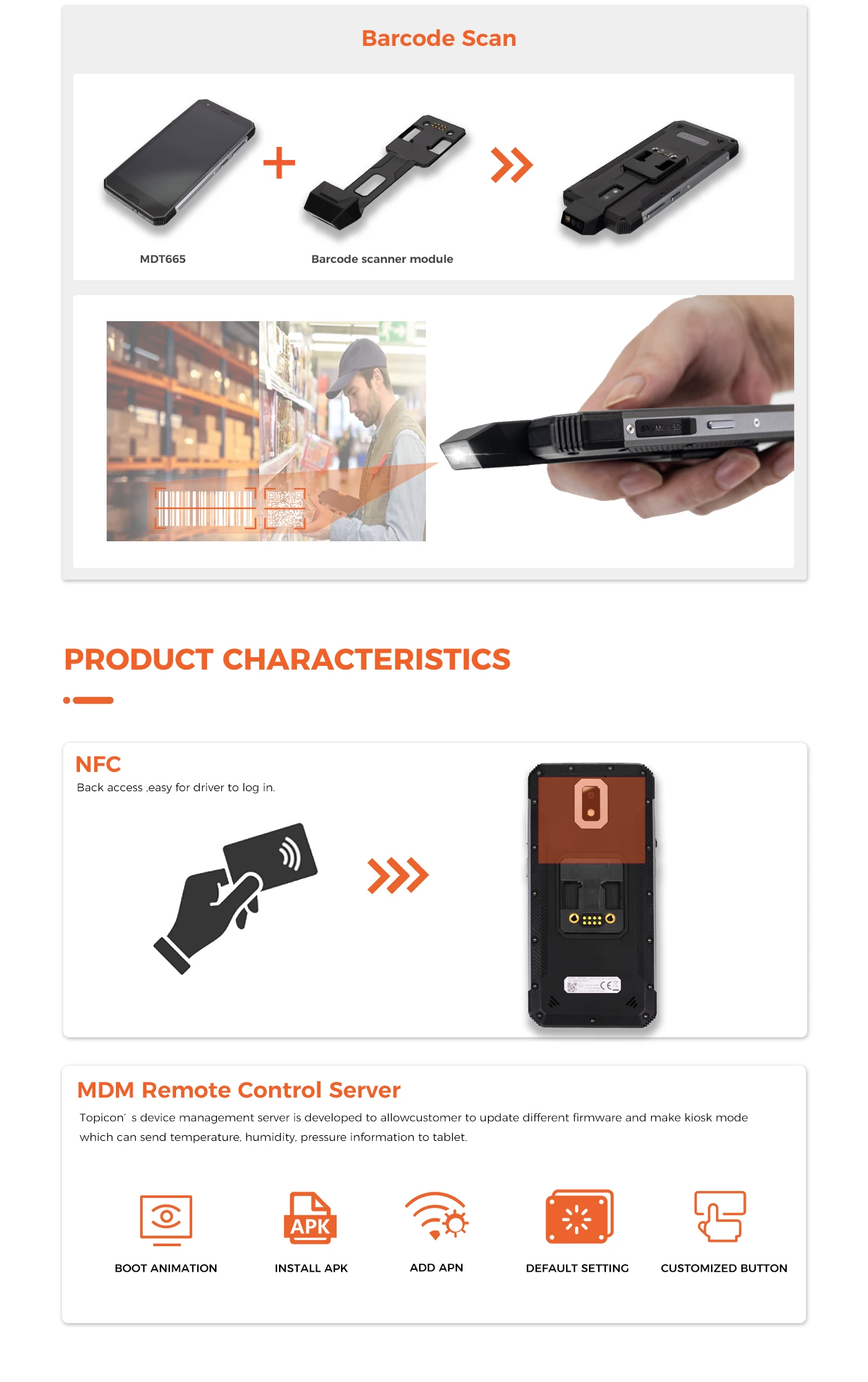

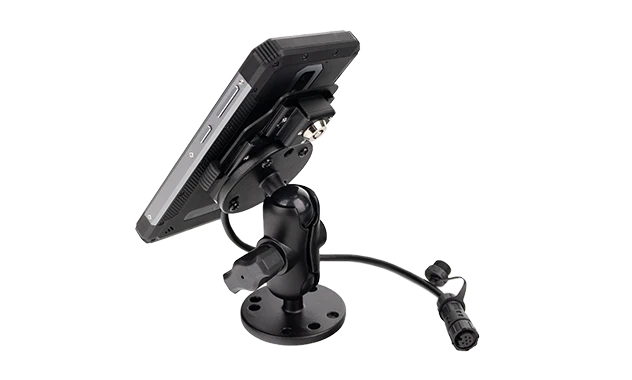

MDT661 is a compact 5.72-inch rugged Android handheld terminal. Ideal for logistics, retail, and warehouse operations, supporting barcode scanning, cradles, and secure mounts.
Hardware
CPU： MTK platform 2GHz octa core CPU
GPS ：Build in MTK GPS module
Display： 5.72 inch, IPS panel (720 x 1440 pixel)
Bluetooth： V2.1 and V4.0WLAN：
Wifi IEEE 802.11 b/g/n/ac
Camera (back camera)： 20MP Autofocus
Camera (front camera)： 8MP Fixed Focus
RFID： Yes, optional
G-sensor： Yes, default
Light sensor： Yes, default
GYROSCOPE： Yes, default
Antenna： Internal antenna
LED indicator： Two-color LED (Red/Green)
Operating temperature : -20 to 60 degree
Waterproof : IP68
Software
Operating System: Android 12 with GMS or withojt GMS
Android applications: TBD
Navigation software: TBD

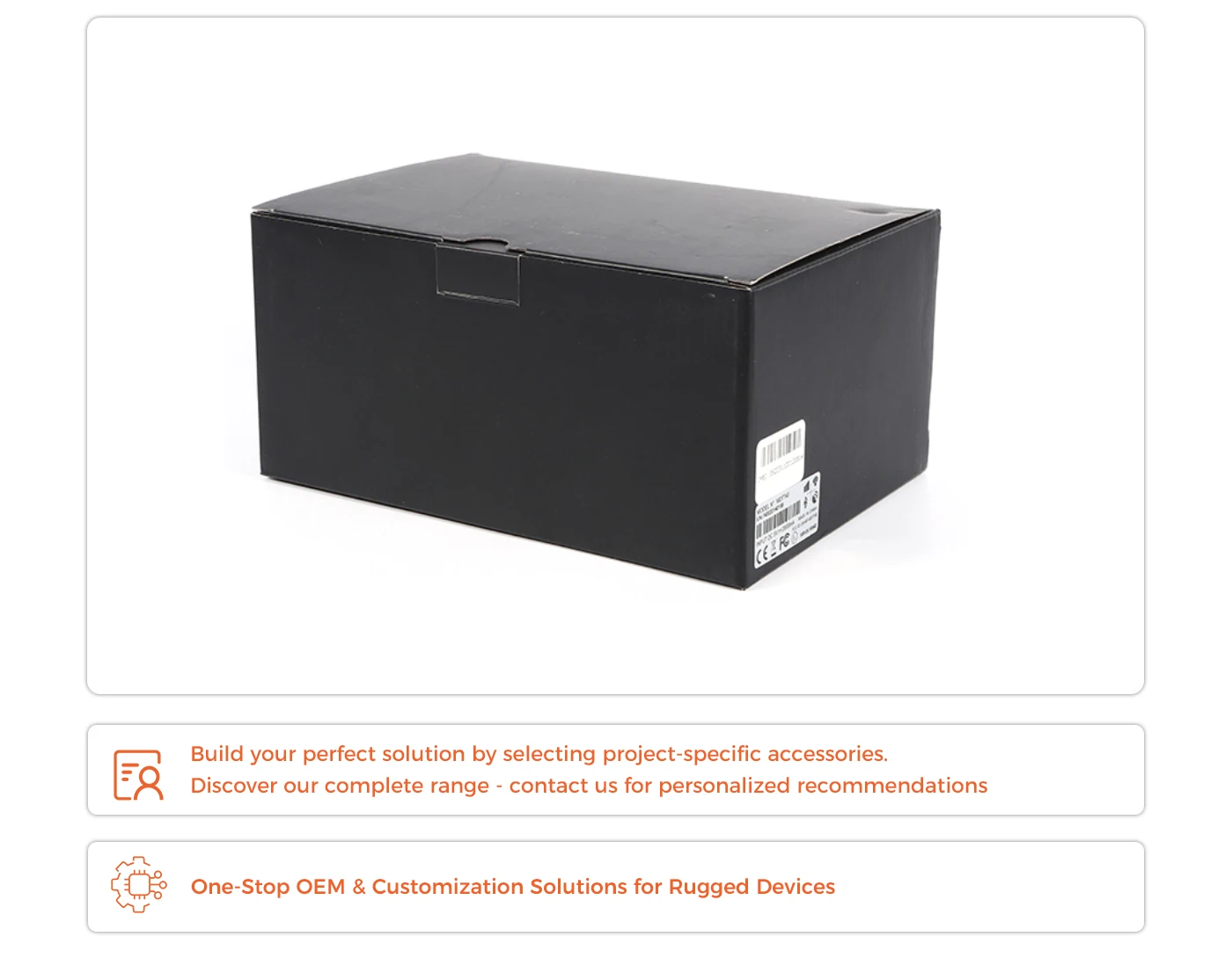

Packaging Detail

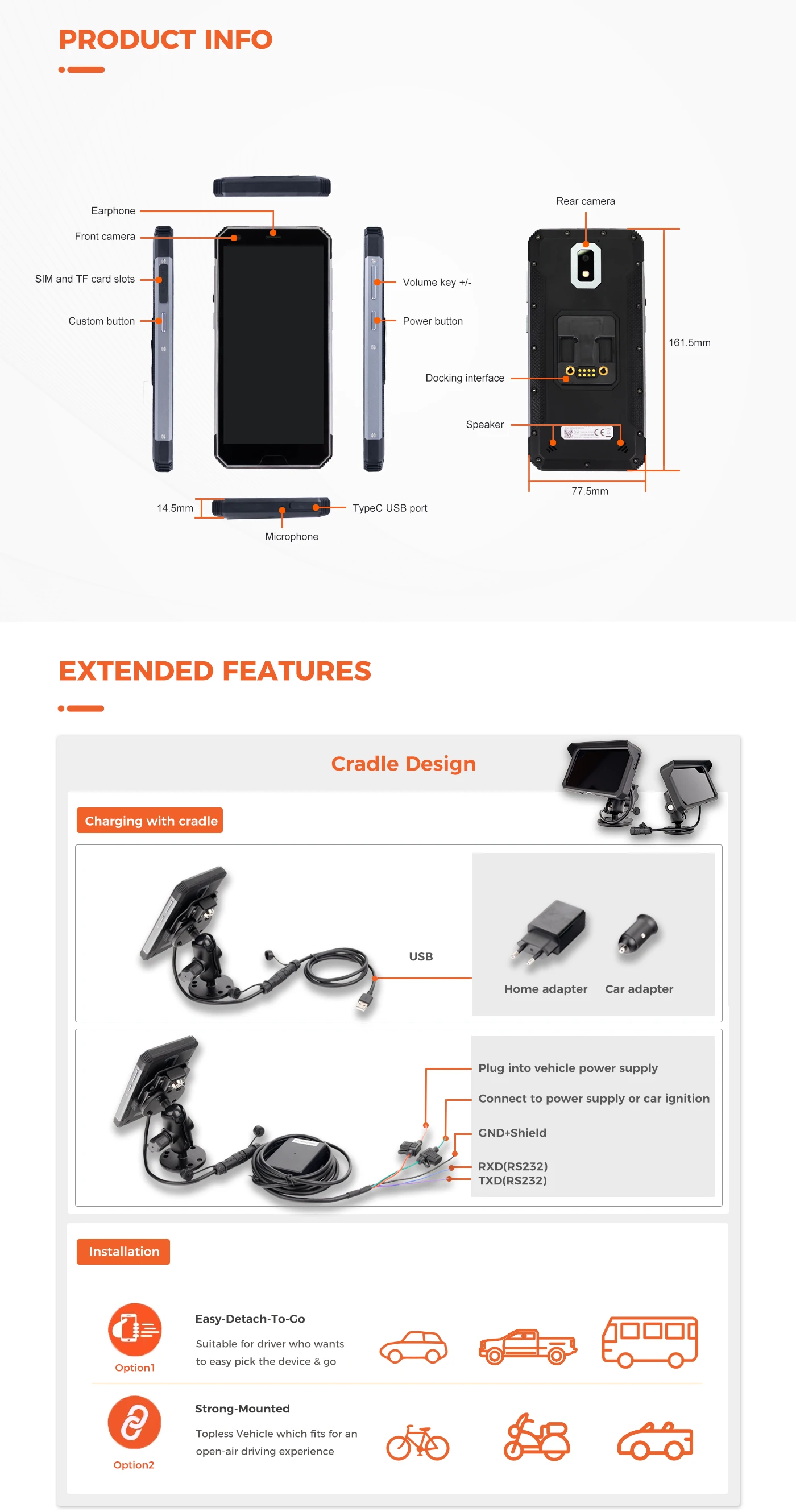

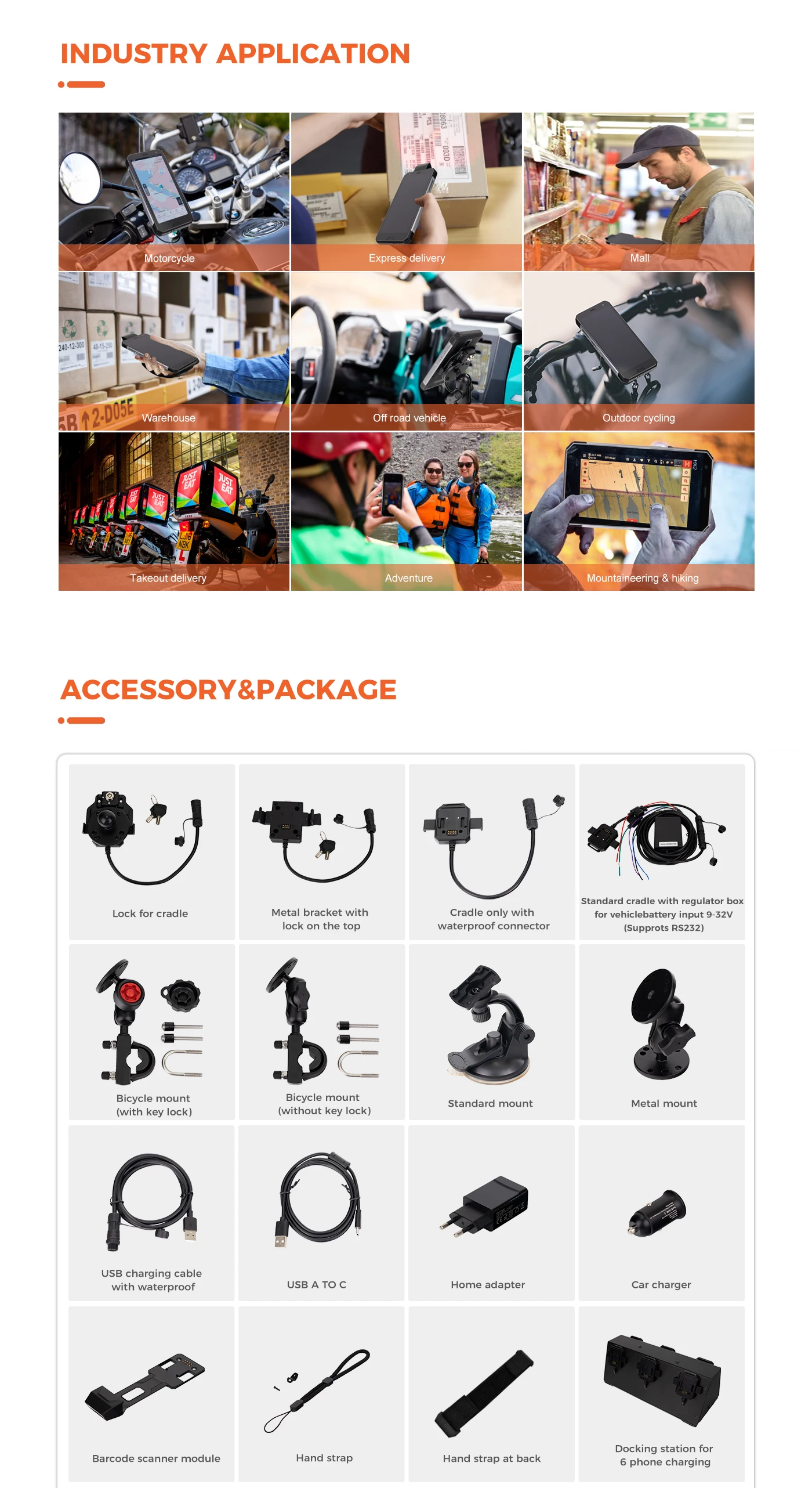

1pcs main unit ,1pc basics cradle, 1pc type C cable, 1pc car charger, 1pc screw kit, 1pc NFC card
4G module / GPRS module
Radio Frequency
2G-GSM: 850,900,1800,1900
3G-WCDMA: B1,B2,B4,B5,B8
4G-LTE FDD:B1,B2,B3,B4,B5,B7,B8,B12,B17,
B20,B28,B66
4G-LTE TDD:B40,B38,B41
Memory
ROM (SLC/MLC) ： 64G NAND flash (dual layout for flash and eMMC)
RAM (DDR)： 4GB DDR4
Extend Slot： MicroSD ( TF ) card
Interface
USB Connector： USB Type C
SIM card slot：Yes, nano SIM
Battery
Capacity： 4000mAh replaceable
