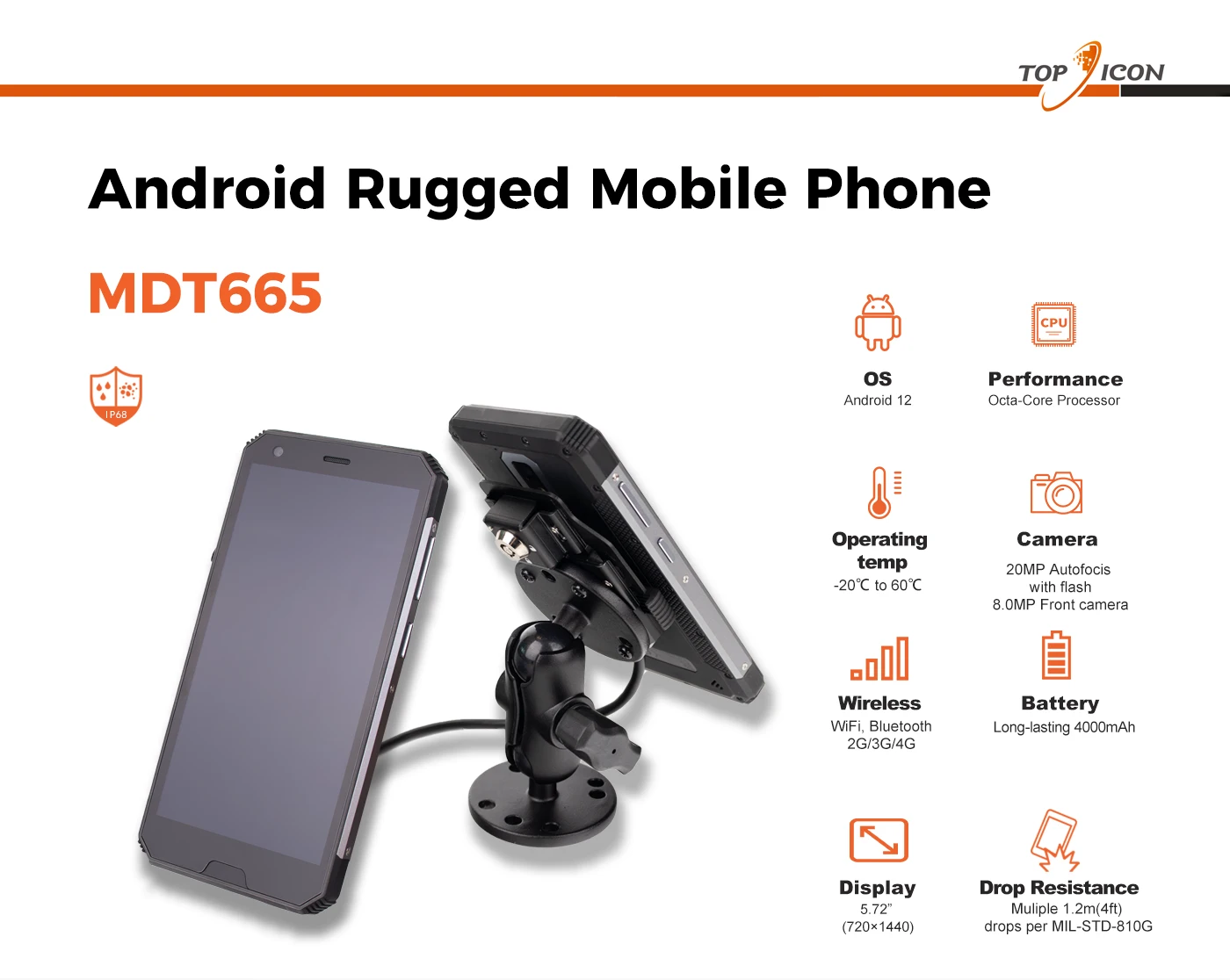

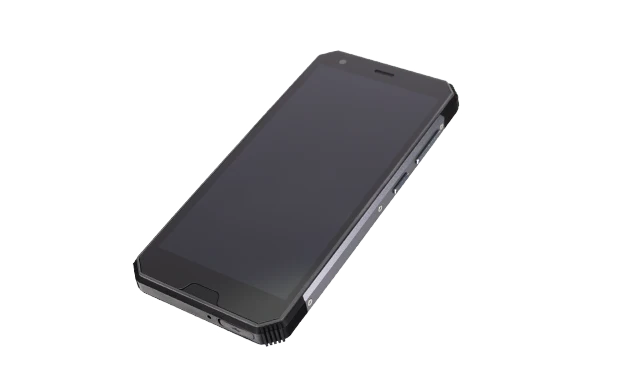

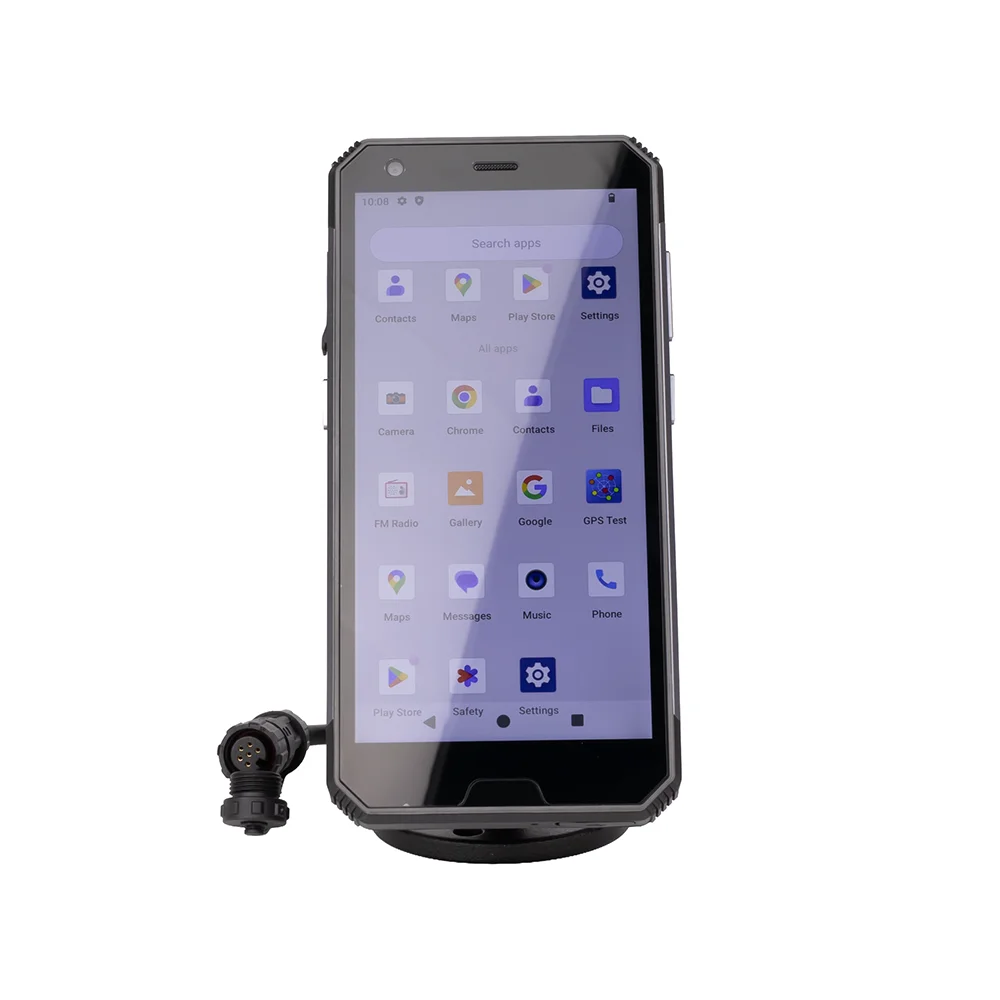

MDT665
5.7-Inch Android handheld terminal for Warehouse & Field Service
The Ultimate 5.7-inch Android Rugged Handheld for Fieldwork & Fleet Navigation.
Engineered for harsh environments, the Topicon MDT665 combines Android 14 performance with IP67 durability and an anti-vibration vehicle/motorcycle cradle. Featuring glove-touch capability, integrated RFID access, and customizable MDM remote management, it is the perfect hardware platform for motorcycle tracking, off-road UTV telematics, and demanding field operations.
Engineered for harsh environments, the Topicon MDT665 combines Android 14 performance with IP67 durability and an anti-vibration vehicle/motorcycle cradle. Featuring glove-touch capability, integrated RFID access, and customizable MDM remote management, it is the perfect hardware platform for motorcycle tracking, off-road UTV telematics, and demanding field operations.
Hardware
CPU: MTK platform 2GHz octa-core CPU
GPS: High sensitivity receiver (GPS, GLONASS, GALILEO)
Display: 5.7 inch, IPS panel (720 x 1440 pixel)
Bluetooth: V4.1 / V4.2
WLAN: Wi-Fi IEEE 802.11 a/b/g/n/ac (Dual-Band 2.4GHz/5GHz)
Camera (back camera): 20Mpixel autofocus camera with flashlight
Camera (front camera): 8Mpixel fixed focus camera

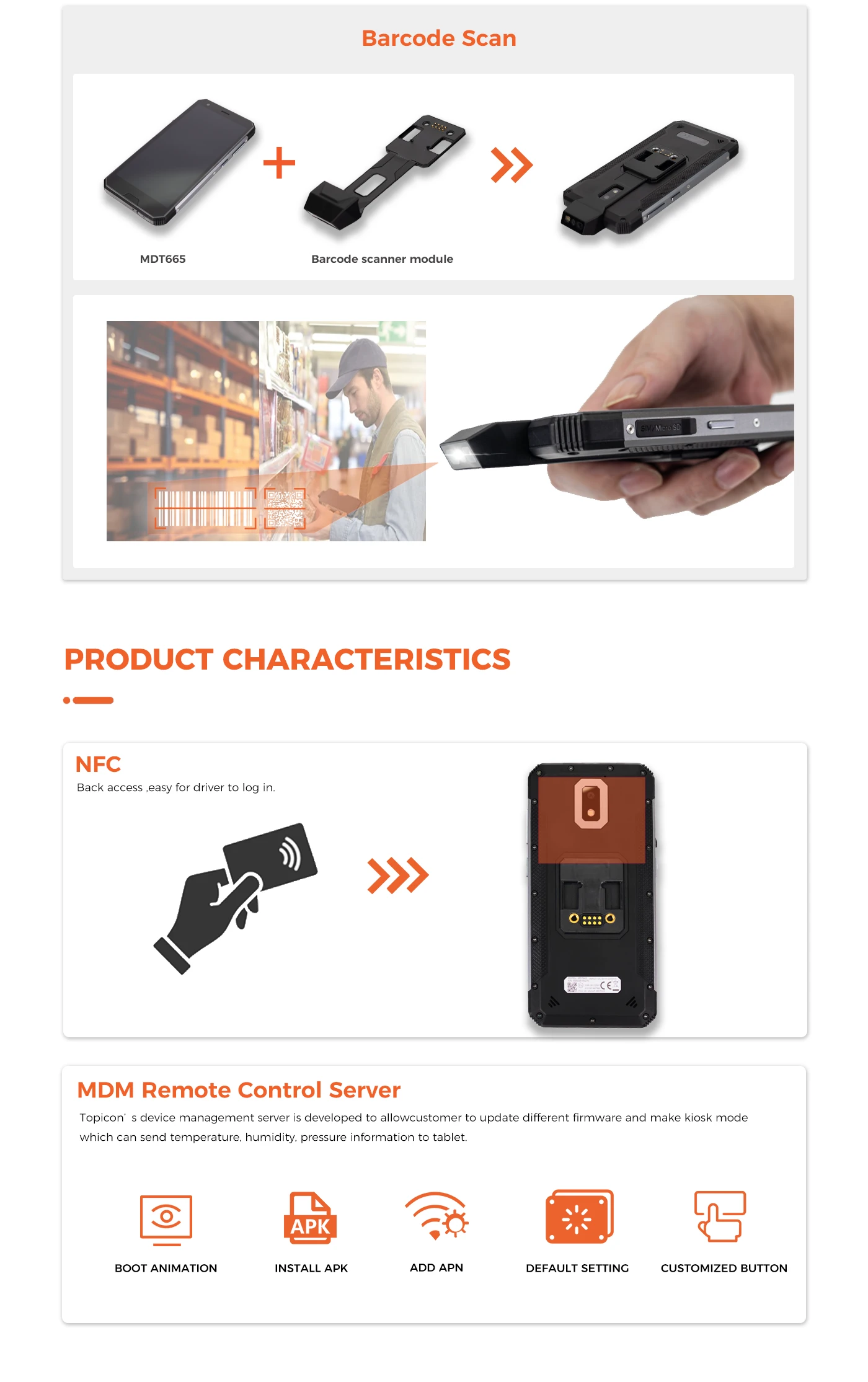

RFID: Yes, optional (Supports NFC ISO 14443 A/B, ISO 15693)
G-sensor: Yes, default
Light sensor: Yes, default
Gyroscope: Yes, default
Antenna: Internal antenna
LED indicator: Two-color LED (Red/Green)
Operating Temp: -20℃ to 60℃ (-4°F to 140°F)
Storage Temp: -20℃ to 70℃ (-4°F to 158°F)
Humidity: 90% non-condensing

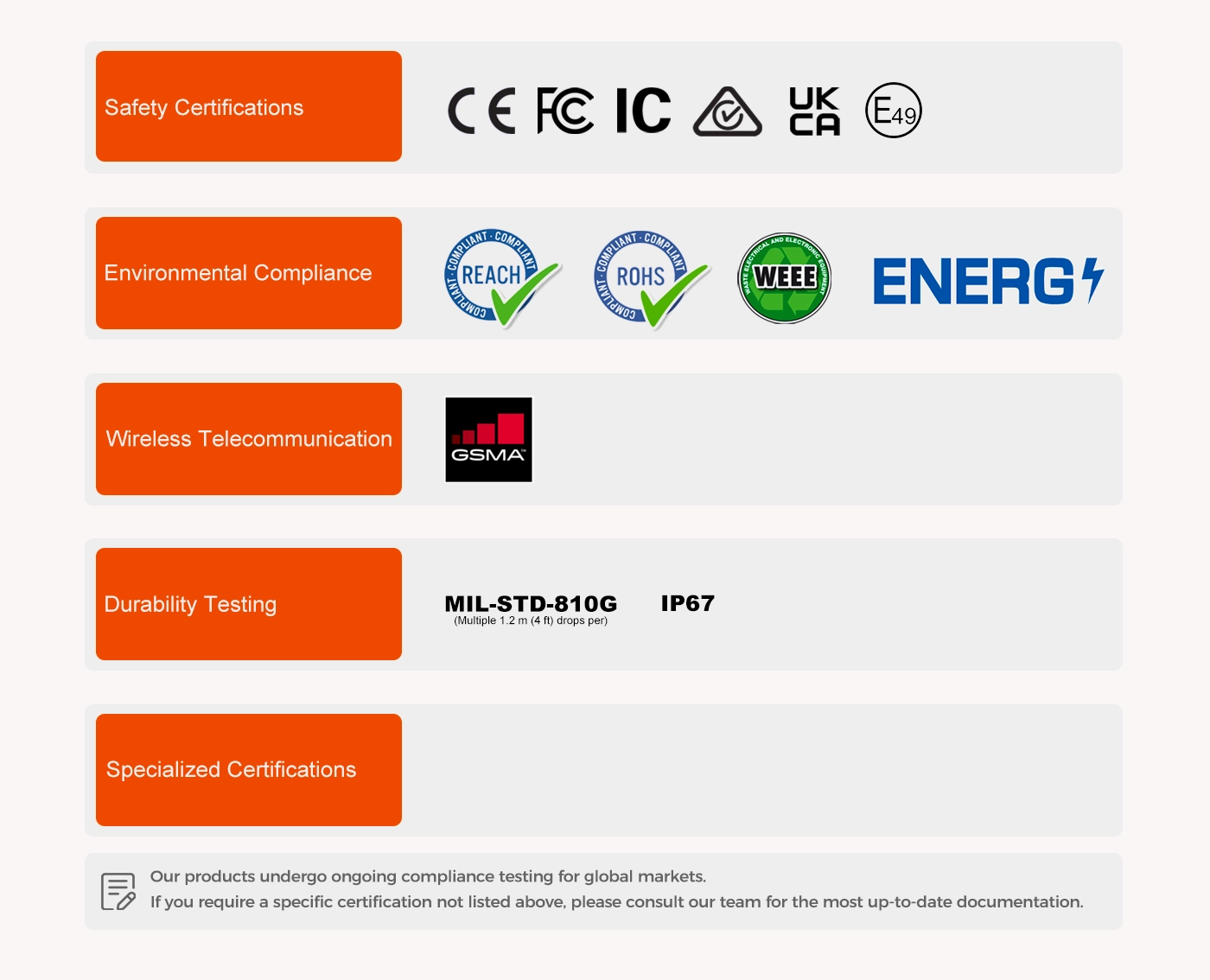

Sealing: IP67 certified (Optional IP68)
Drop Spec: 1.2m (4 ft.) drops per MIL-STD-810G
Electrostatic Discharge (ESD): +/-8kVdc air discharge, +/-4kVdc direct discharge

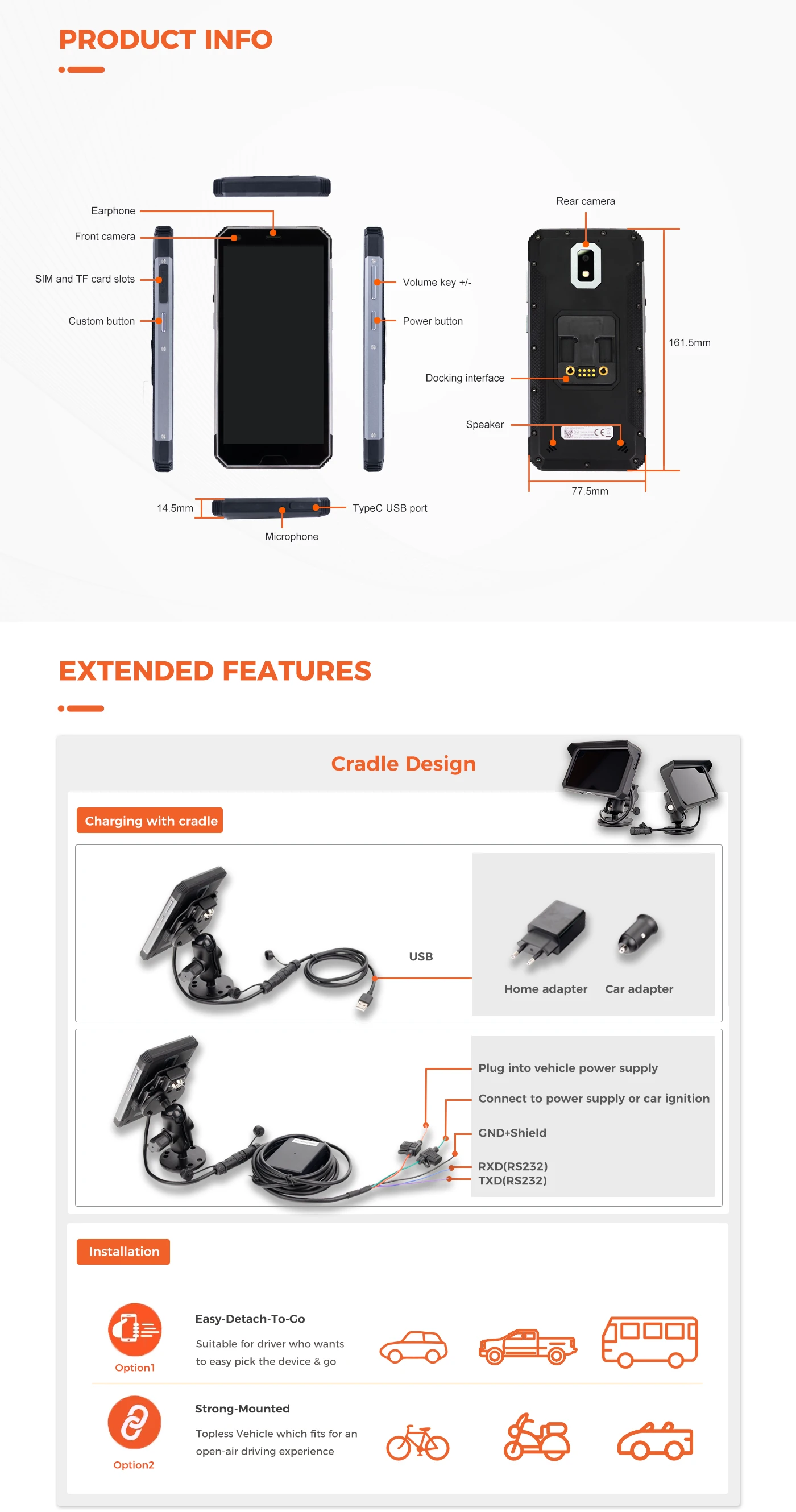

Dimensions: 161.5mm L x 77.5mm W x 14.5mm D
Weight: 280g
Software
Operating System: Android 12 or Android 14 with GMS / Non-GMS
Android applications: TBD
Navigation software: TBD

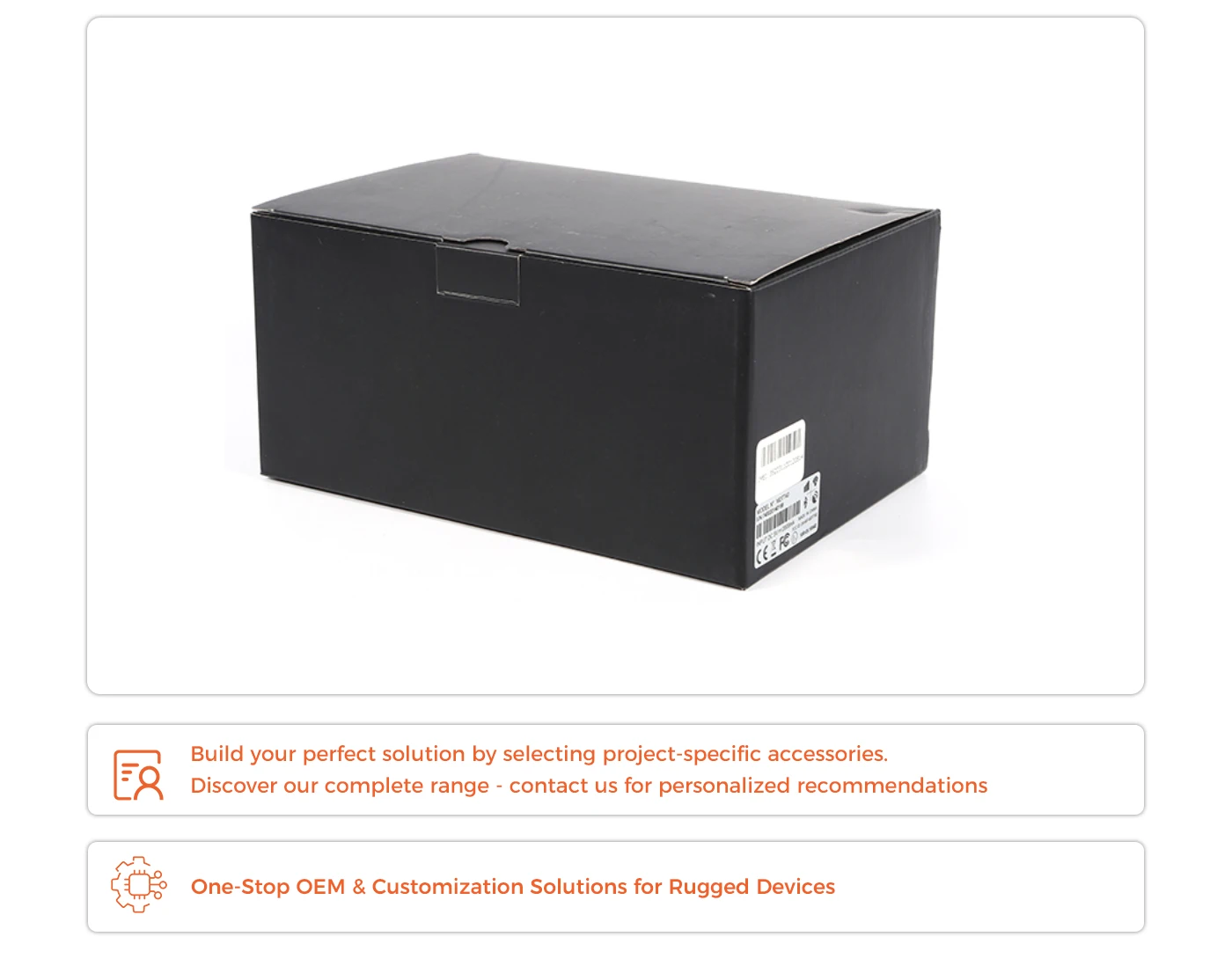

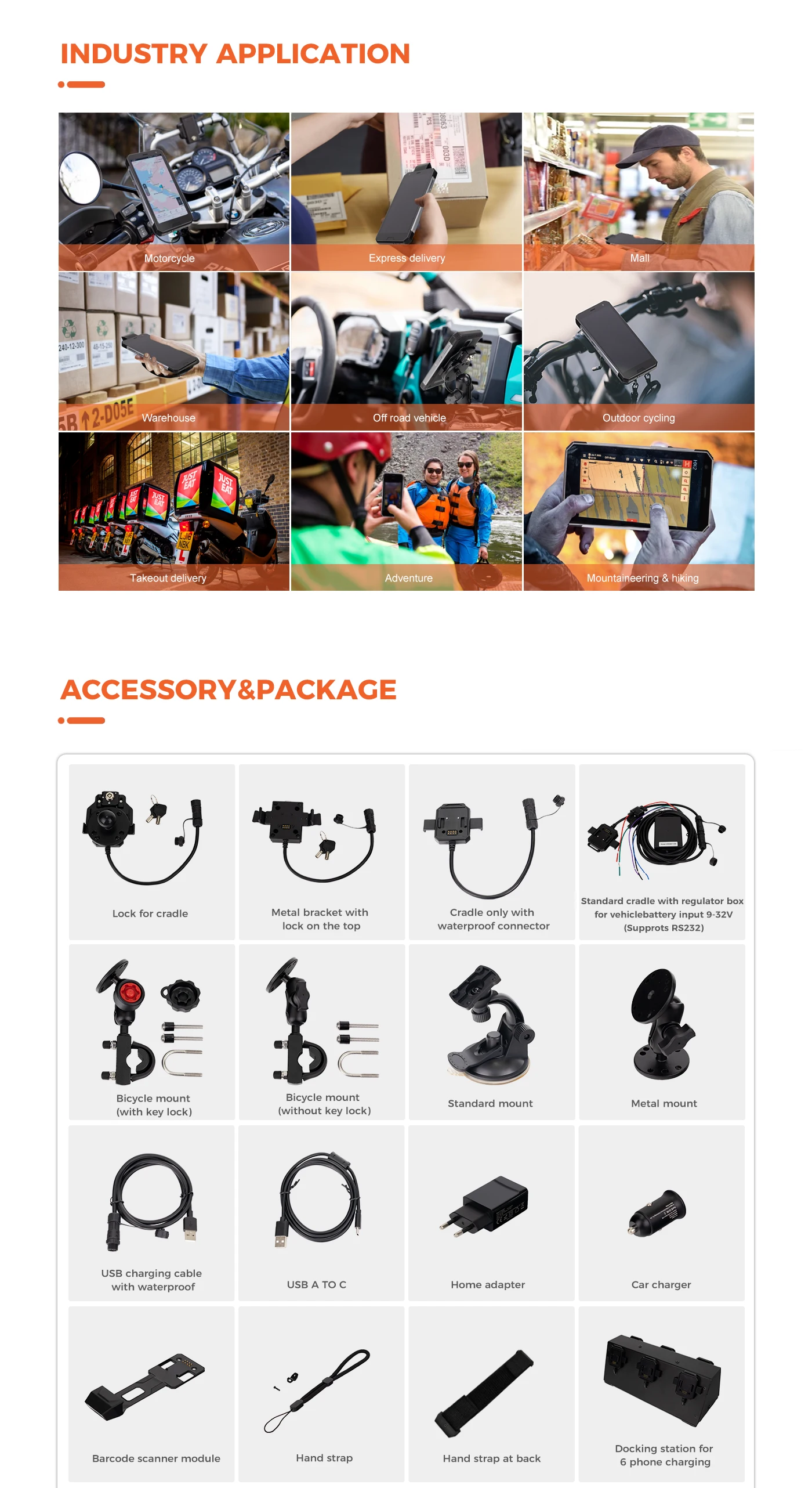

Packaging Detail
1pc main unit

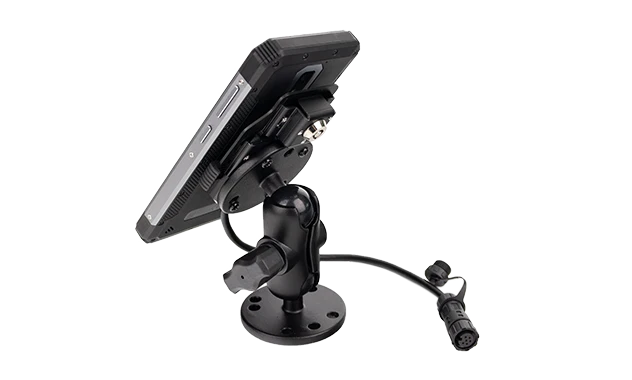

1pc Basic cradle (Motorcycle / Vehicle mount option)
1pc Type-C cable
1pc Car charger
1pc Screw kit
1pc NFC card
Cellular Module
Radio Frequency:
2G-GSM: 850/900/1800/1900MHz
3G-WCDMA: B1/B2/B4/B5/B8
4G-LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28/B66
4G-LTE TDD: B38/B40/B41
GNSS: GPS, GLONASS, GALILEO
Memory
Storage (ROM): 64GB NAND flash (dual layout supporting flash and eMMC)
Memory (RAM): 4GB LPDDR4
Expansion Slot: MicroSD (TF) card, supports up to 128GB
Interface
USB Connector: USB Type-C connection and power charging

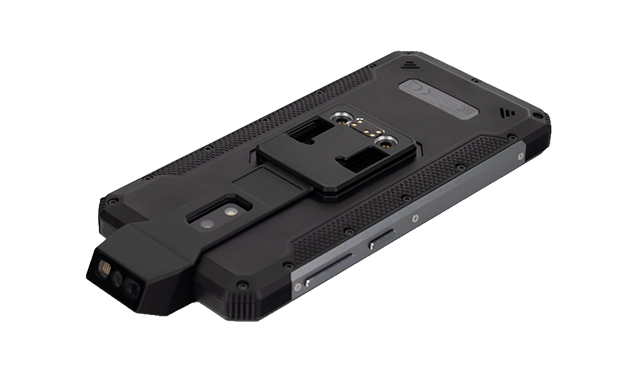

Pogo pins: Support serial port (RS232 via cradle), USB, and charging power input
SIM card slot: 2 x Nano-SIM slots
Battery
Capacity: Rechargeable and replaceable Lithium-ion Battery 3.8V 4000mAh
Product Video
Success Cases

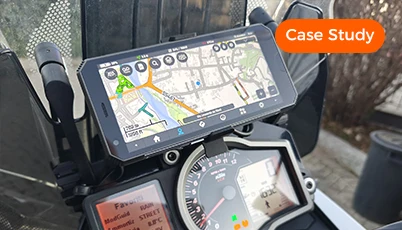

Success Case: Rugged Handhelds Power Smarter Motorcycle Delivery
