MDT765

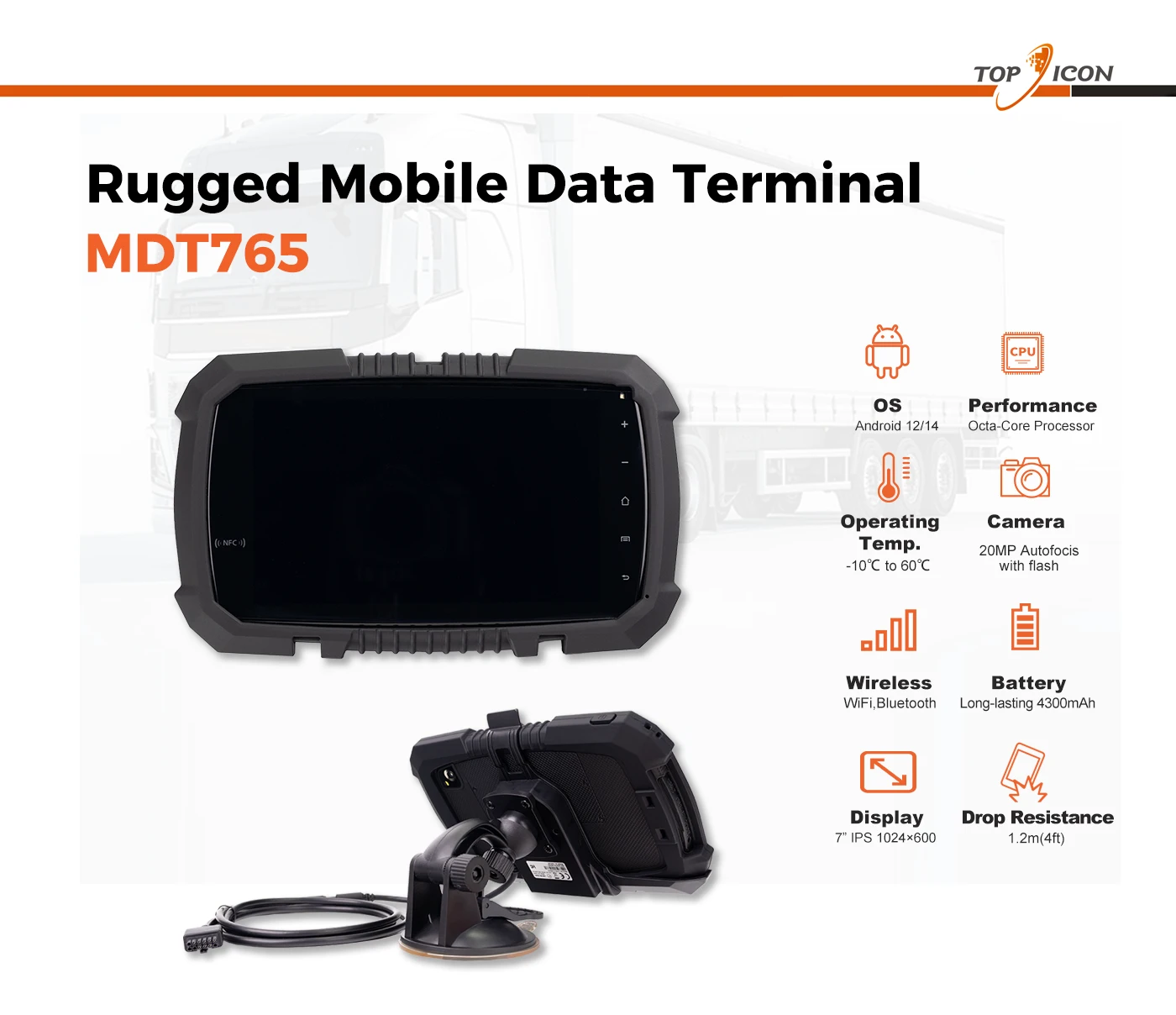

7" Mobile Data Terminal (MDT) Tablet for Truck
MDT765 is a popular MDT tablet for truck fleet management. Driver uses it for navigation, routing, dispatching, e-signatures, proof-of-delivery, order management, vehicle maintenance, fuel consumption management, logbook, and fleet operators use it for ELD and electronic work orders, extend digital workflow to mobile vehicles, improving productivity.

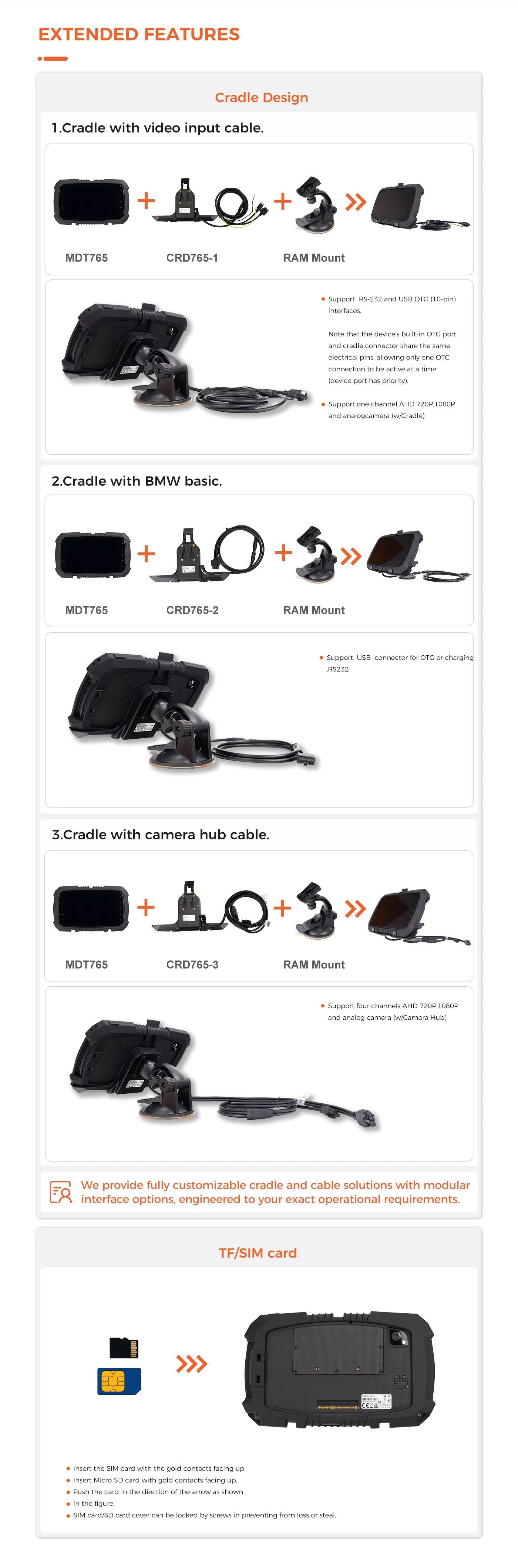

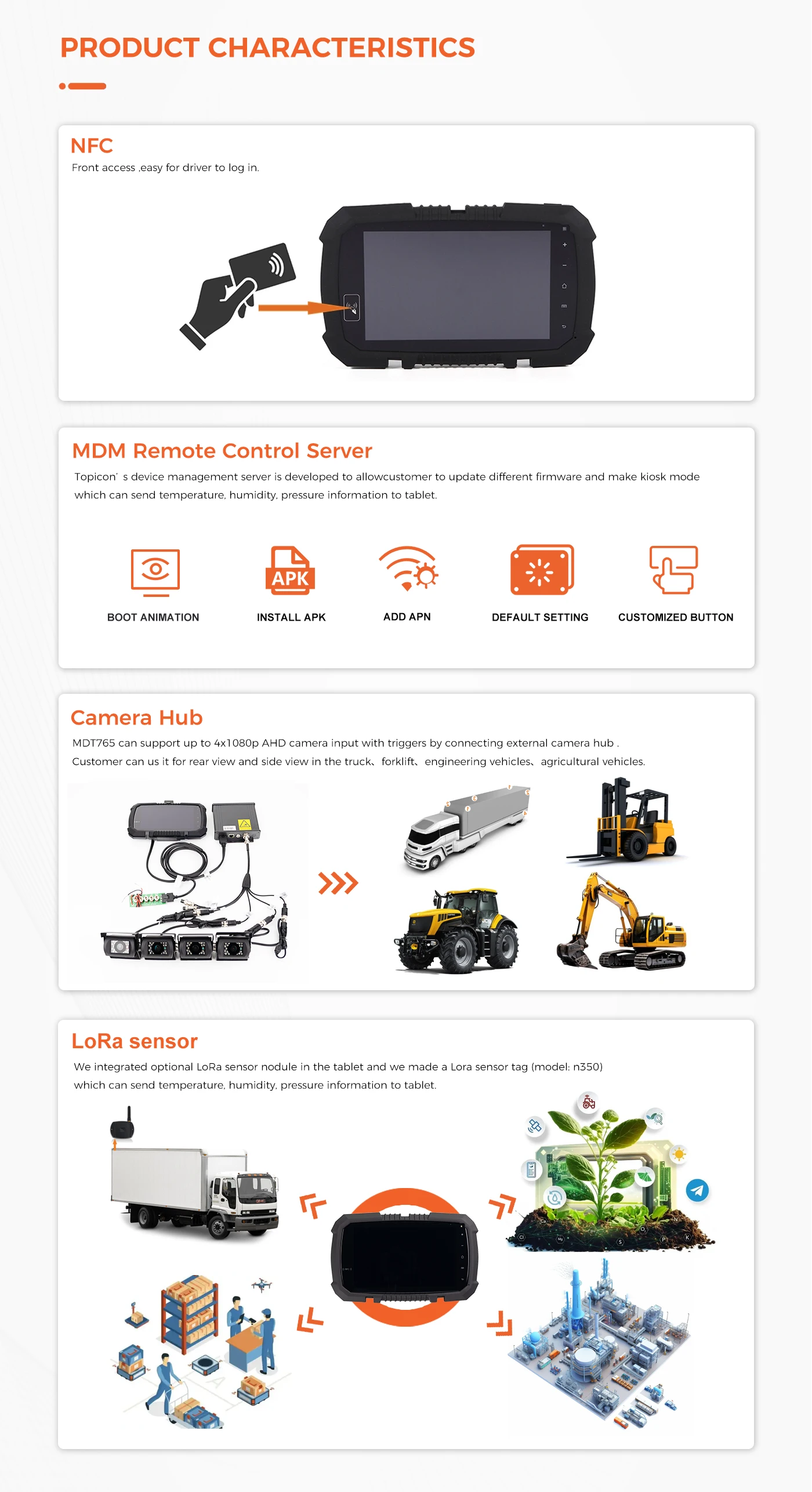

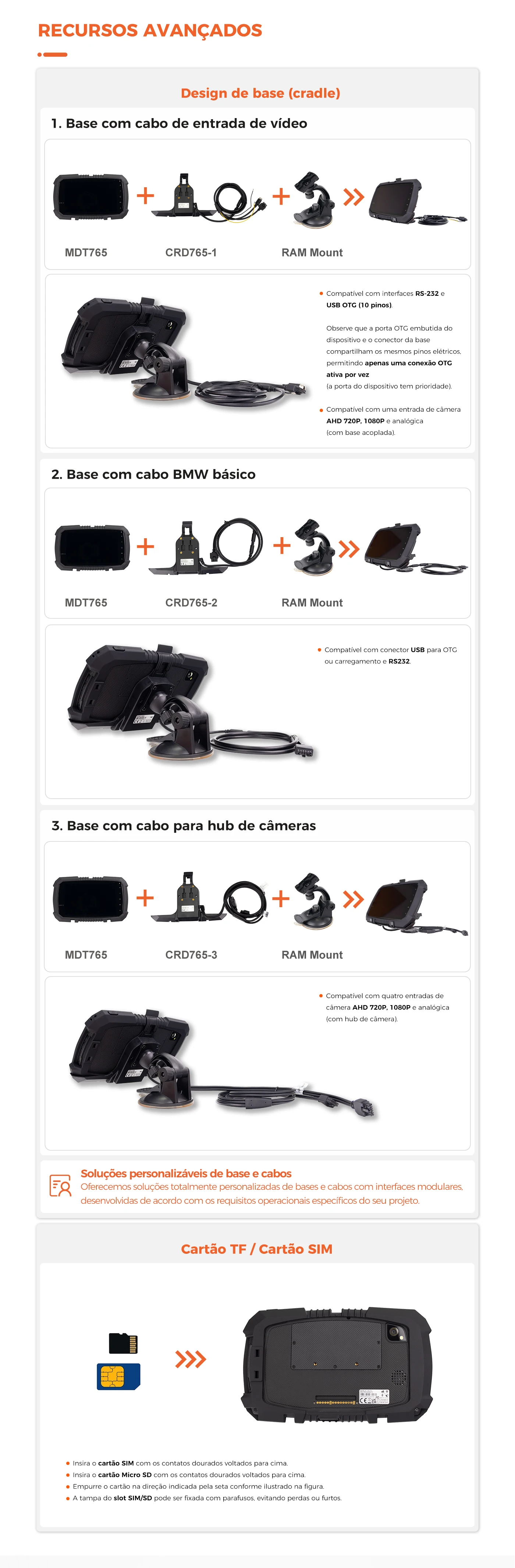

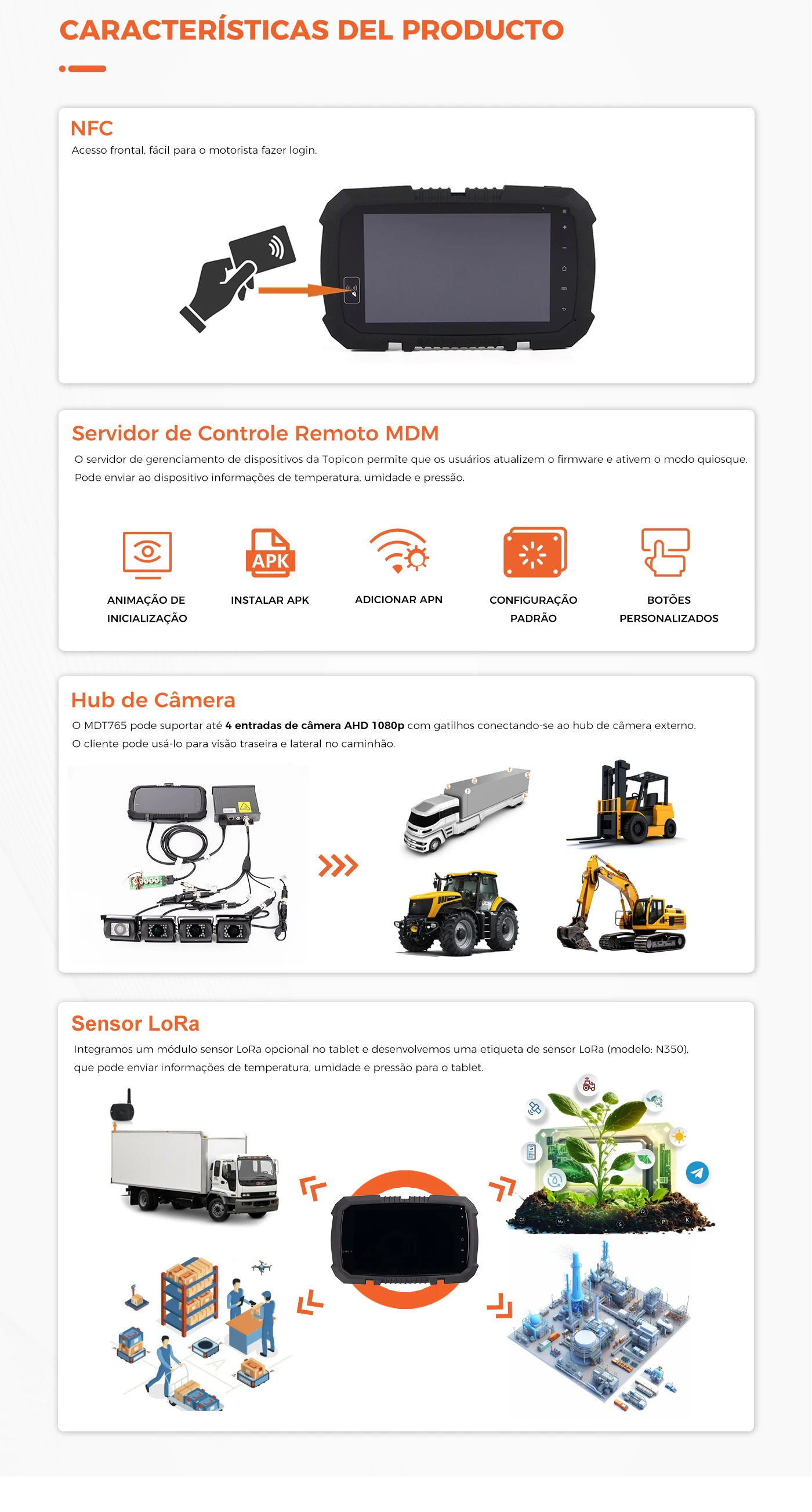

It equipped 7" TFT display, 2G/3G/4G mobile network module, NFC card reader. With option of LoRa and camera system. It supports up to 4×1080p AHD camera input by combine with TOPICON camera hub device, truck driver can use it for real view and side view to ensure the safety. Thanks to the dedicated cradle it supports data interchange with vehicle RS232 interface. Advanced GPS chipset make navigation more accurate.
Support MDM remote control server. Support OTA upgrading, firmware customization, APK integration and debug log.
It equipped 7" TFT display, 2G/3G/4G mobile network module, NFC card reader. With option of LoRa and camera system. It supports up to 4×1080p AHD camera input by combine with TOPICON camera hub device, truck driver can use it for real view and side view to ensure the safety. Thanks to the dedicated cradle it supports data interchange with vehicle RS232 interface. Advanced GPS chipset make navigation more accurate.
Support MDM remote control server. Support OTA upgrading, firmware customization, APK integration and debug log.
Hardware
CPU： MTK platform 2GHz octa core CPU
GPS ： High sensitivity receiver, 64 channels

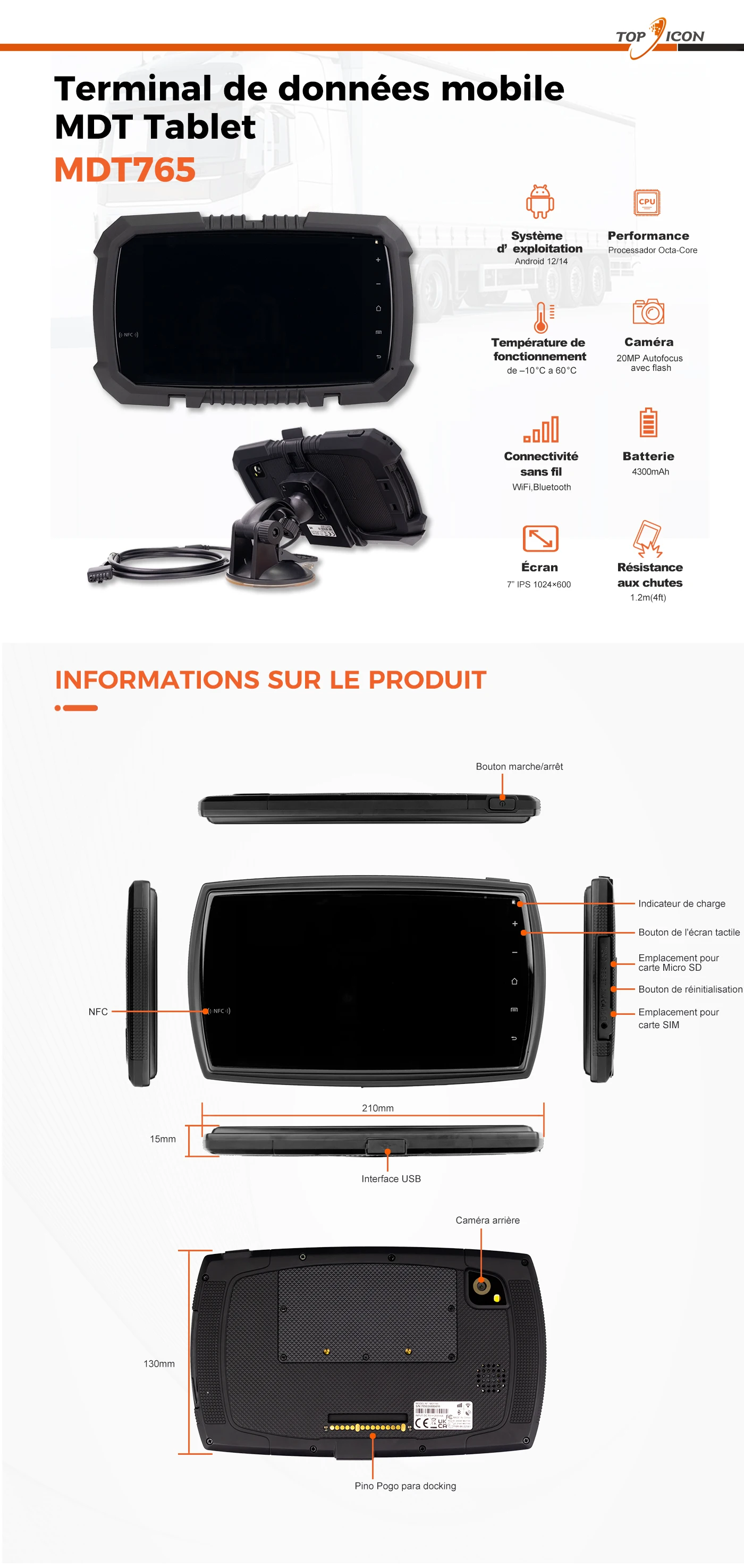

Display： 7“ colour touch screen (1024x600, capacitive Touch panel)
Bluetooth： V2.1 and V4.0 with data transfer (OPP profile)
WLAN： Wifi IEEE 802.11 b/g/n

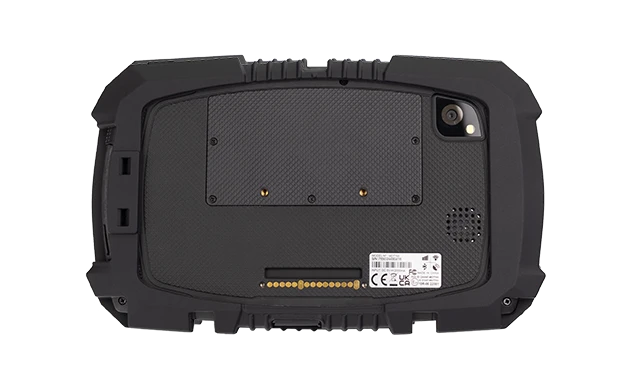

Camera (back camera)： 16Mpixel autofocus camera and flashlight
Camera (front camera)： Optional but not default
Video input: support the channels ADH720P, 1080P and analog
RFID： Yes, optionalG-sensor： Yes, default
Light sensor： Yes, defaultGYROSCOPE： Yes, default
Wireless module：Optional, Lora module
Antenna： Internal antenna
LED indicator： Two-color LED (Red/Green)
Software
Operating System： Android version 12 (default) or 14Android applications： TBDNavigation software： TBD

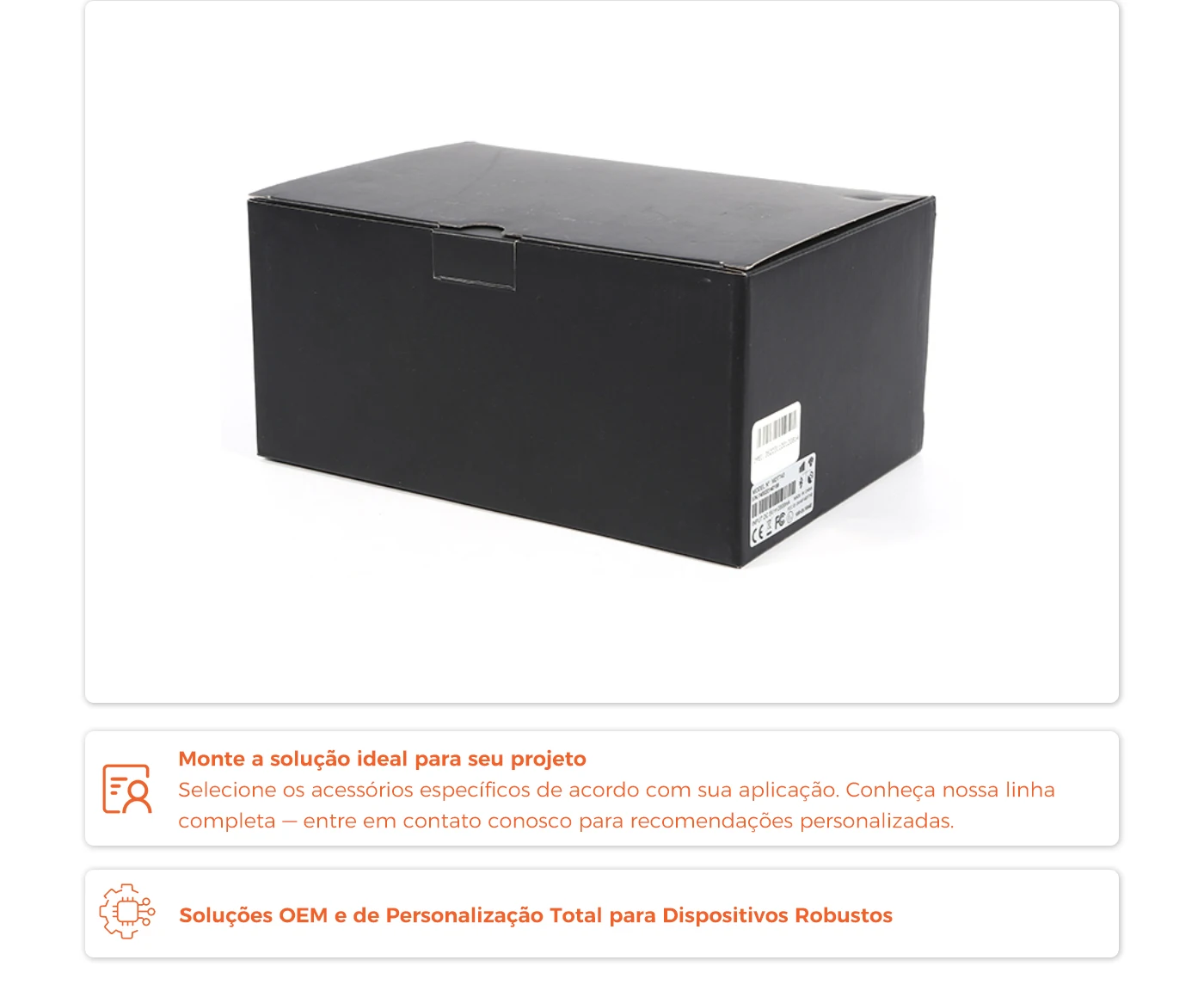

Packaging Detail

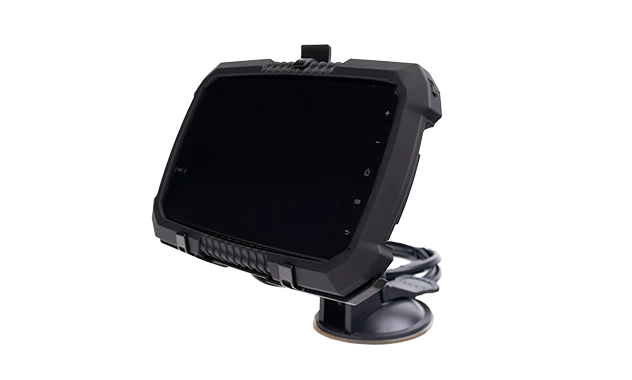

1pc main unit and 1pc cradle
4G module / GPRS module
2G-GSM: 850,900,1800,19003G-WCDMA: B1,B2,B4,B5,B84G-LTE FDD:B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B284G-LTE TDD:B40,B38,B41
Memory
ROM (SLC/MLC) ： 64G NAND flash (dual layout for flash and eMMC)RAM (DDR)： 4GB DDR4Extend Slot： MicroSD ( TF ) card

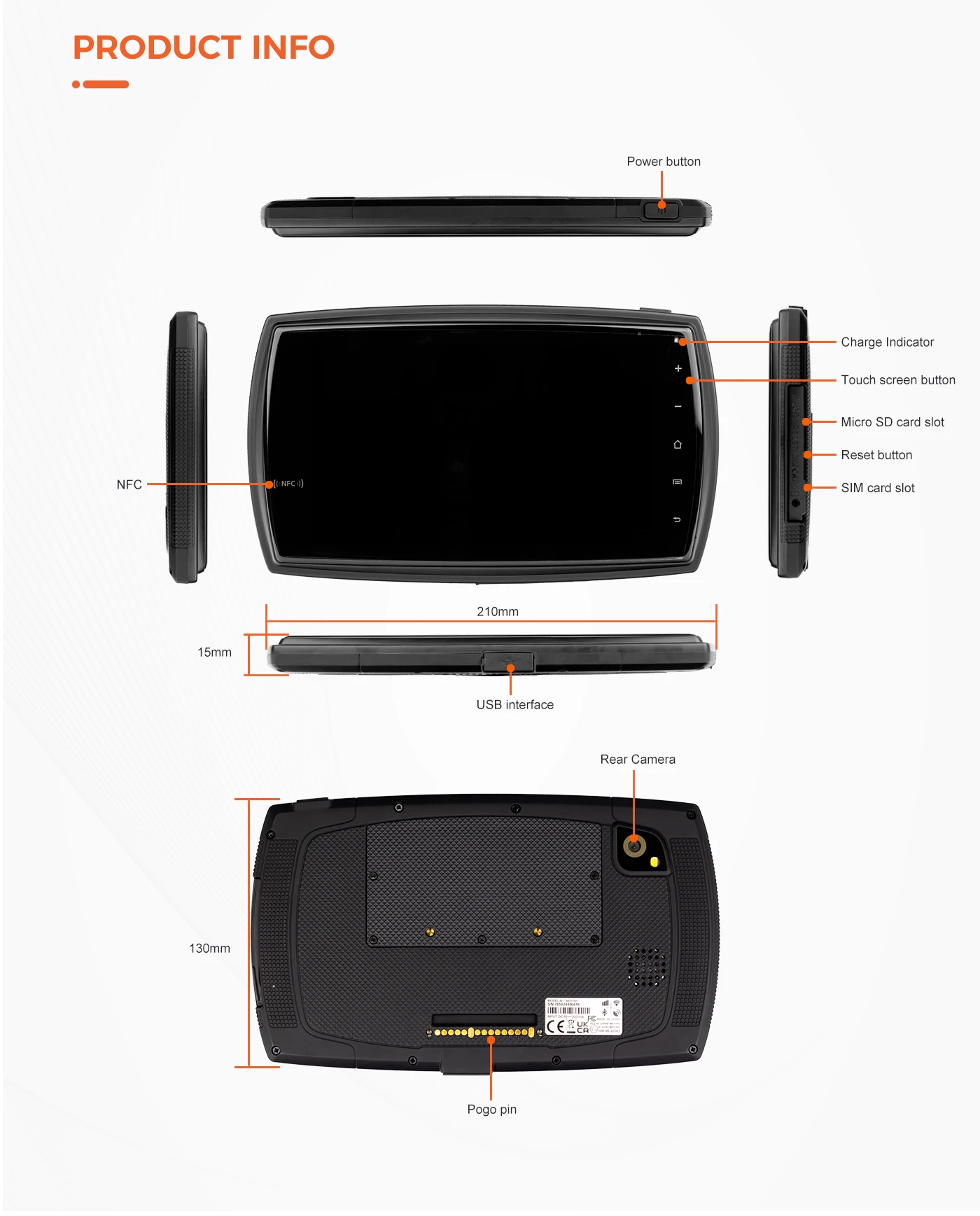

Interface
Type C USB Connector： USB2.0 connection and power chargingPogo pins： Support serial port, USB, 12V input, ignition, eepromSIM card slot：Yes
Battery
Capacity： 4300mAh (Default)Standby： ~5 daysOperating Time：~5 hours
Success Cases
Rugged Tablet Solutions for Bus
1.Fleet Management & Route Optimization
2.Passenger Information Display
3.Driver Communication & Monitoring
4.Durable Design for Long-Hour Operation
Rugged Tablet Solutions for School Bus
1.Student Attendance & Check-In System
2.GPS Tracking & Parent Notifications
3.Emergency Communication
4.IP67 Protection for Reliable Daily Use
Rugged Tablet Solutions for Crawler Feller
1.Forestry Equipment Monitoring & Diagnostics
2.Extreme Weather Resistance (Rain & Cold)
3.Vibration-Proof Mounting for Heavy Machines
4.Real-Time Data Logging & GPS Tracking
