 M12 ETHERNETIP67 RATED 9-36V POWER

M12 Ethernet Rugged Tablet for Vehicle & Industrial Network Connectivity

Industrial Android tablet with M12 Ethernet connector — IP67‑rated for dust and water resistance. Designed for buses, trains, construction equipment, and fixed industrial mounts requiring reliable wired network connectivity.

MDT865 rugged tablet with M12 Ethernet connector and vehicle cradle

MDT865 + BKT865-LAN-01 | M12 Ethernet cradle

What Is M12 Ethernet for Rugged Tablets?

M12 is a circular, threaded connector designed for industrial and vehicle environments — providing IP67‑rated dust and water resistance. Unlike standard RJ45 Ethernet ports, M12 connectors lock securely and withstand vibration, moisture, and temperature extremes.

TOPICON offers M12 Ethernet connectivity via dedicated cradles (BKT865-LAN-01, BKT865-LAN-02) and adapter cables, enabling rugged tablets to connect to vehicle networks, industrial controllers, and diagnostic systems.

M12 Ethernet Rugged Tablet: Key Capabilities

M12 Ethernet (IP67)

Threaded, locking connector — vibration‑proof and water/dust resistant. Standard 10/100 Mbps Ethernet.

Vehicle / Industrial Power

9-36V wide voltage with ignition sensing — direct connection to bus, truck, or equipment power.

4G/5G + GPS

Cellular connectivity for remote diagnostics, plus GNSS for vehicle tracking.

Multiple Mounting Options

Vehicle docks, RAM mounts, and fixed‑position cradles for secure installation.

M12 Ethernet Integration Options

Choose the cradle that fits your deployment

BKT865-LAN-01

  • M12 Ethernet connector (IP67)

  • 9-36V power with ignition sense

  • 1× USB-C (charge)

  • 1× RS232

  • Vehicle docking + anti‑vibration

Includes: M12 to RJ45 female adapter cable

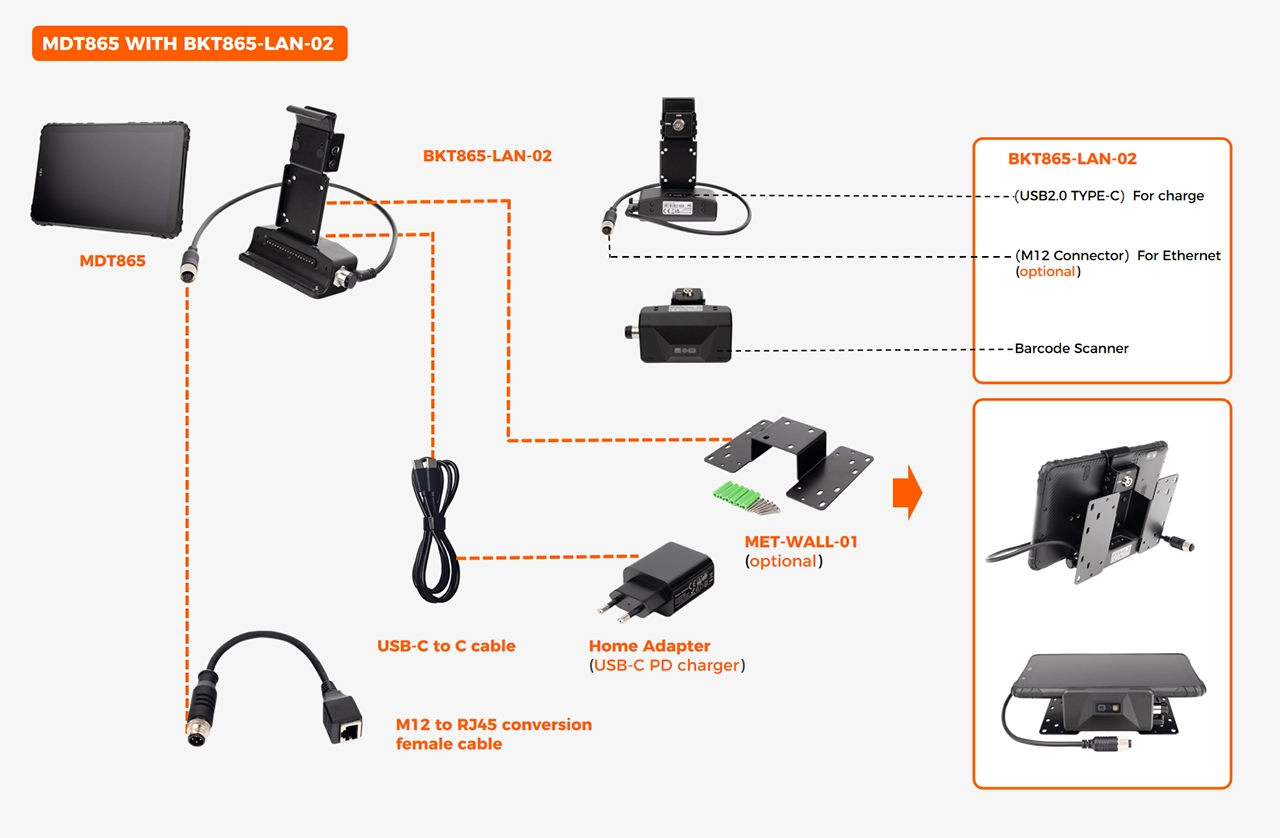

BKT865-LAN-02

  • USB‑C to C cable (charge only)

  • Optional RJ45 Ethernet

  • 1D/2D barcode scanner option

  • RAM mount compatible

Best for: Fixed position scanning + network connectivity

Complete integration kit

Tablet + M12 cradle + adapter cable
ready for vehicle or industrial network deployment

Request M12 kit specs →

Consumer Tablet vs M12 Ethernet Rugged Tablet

FeatureConsumer TabletTOPICON M12 Ethernet Tablet
Ethernet Port✕ None (USB adapter only)✓ M12 (IP67) + optional RJ45
Connector Protection✕ RJ45 (no sealing)✓ M12 threaded locking, IP67
Vehicle Power✕ 5V USB only✓ 9-36V with ignition sense
Mounting✕ No industrial mounting✓ Vehicle dock / RAM mount / fixed cradle

Compatible Networks & Protocols

Our M12 Ethernet tablet integrates with vehicle and industrial networks

Ethernet/IP            Modbus TCP            Profinet            Vehicle CAN over Ethernet            Custom TCP/UDP

Frequently Asked Questions

What is M12 connector used for?

M12 is a circular, threaded connector rated IP67. It is widely used in industrial automation, vehicle networks, railway systems, and outdoor equipment where standard RJ45 would fail due to vibration or moisture.

Do you offer an M12 to RJ45 adapter?

Yes. BKT865-LAN-01 includes an M12 to RJ45 female adapter cable. You can also use standard M12 to RJ45 cables for flexible deployment.

Can I use this tablet without M12 Ethernet?

Yes. The tablet itself supports Wi-Fi and 4G/5G. M12 Ethernet is available via compatible cradles (BKT865-LAN-01 or BKT865-LAN-02). Choose your connectivity based on deployment needs.

Is OEM customization available for M12 pinout?

Yes. We offer custom M12 pin assignments, cable lengths, and connector configurations for specific vehicle or industrial equipment requirements. Contact our engineering team →

Ready to Add M12 Ethernet to Your Vehicle or Industrial Network?

Get a quote, request an M12 integration kit, or talk to our engineering team.
