4‑Channel AHD Rugged Tablet for Vehicle Video & Fleet Safety Monitoring
Industrial Android tablet with hardware‑level 4‑channel AHD camera input. Supports ADAS, blind‑spot detection, passenger surveillance, and driver monitoring — purpose‑built for buses, trucks, and heavy equipment.
MDT880 + CRD880 | 4‑Channel AHD Camera Integration Demo
What Is a 4‑Channel AHD Vehicle Tablet?
A 4‑channel AHD rugged tablet is an in‑vehicle Android device that integrates up to four AHD (Analog High Definition) cameras directly — without requiring external DVRs or video encoders. It serves as a combined display, recorder, and telematics gateway for fleet safety applications.
Unlike consumer tablets, which support only USB webcams, our solution provides hardware‑triggered, synchronized camera inputs with ignition‑controlled recording — ready for ADAS, DMS, 360° surround view, and passenger surveillance.
4‑Channel Rugged Tablet: Key Capabilities
4× AHD Camera Input
Direct connection to up to four AHD cameras — front, rear, side, and interior. Supports 720p/1080p.
4× Trigger Inputs
Connect to turn signals, reverse gear, brake, and door sensors for automatic view switching.
Real‑Time Upload
4G/5G + GPS enables live video streaming and event‑based clip upload to fleet platforms.
Vehicle Power Integration
9-36V wide voltage with ignition sense — recording starts/stops with the vehicle.
Two Integration Paths for 4‑Channel Video
Choose the cradle that matches your tablet platform

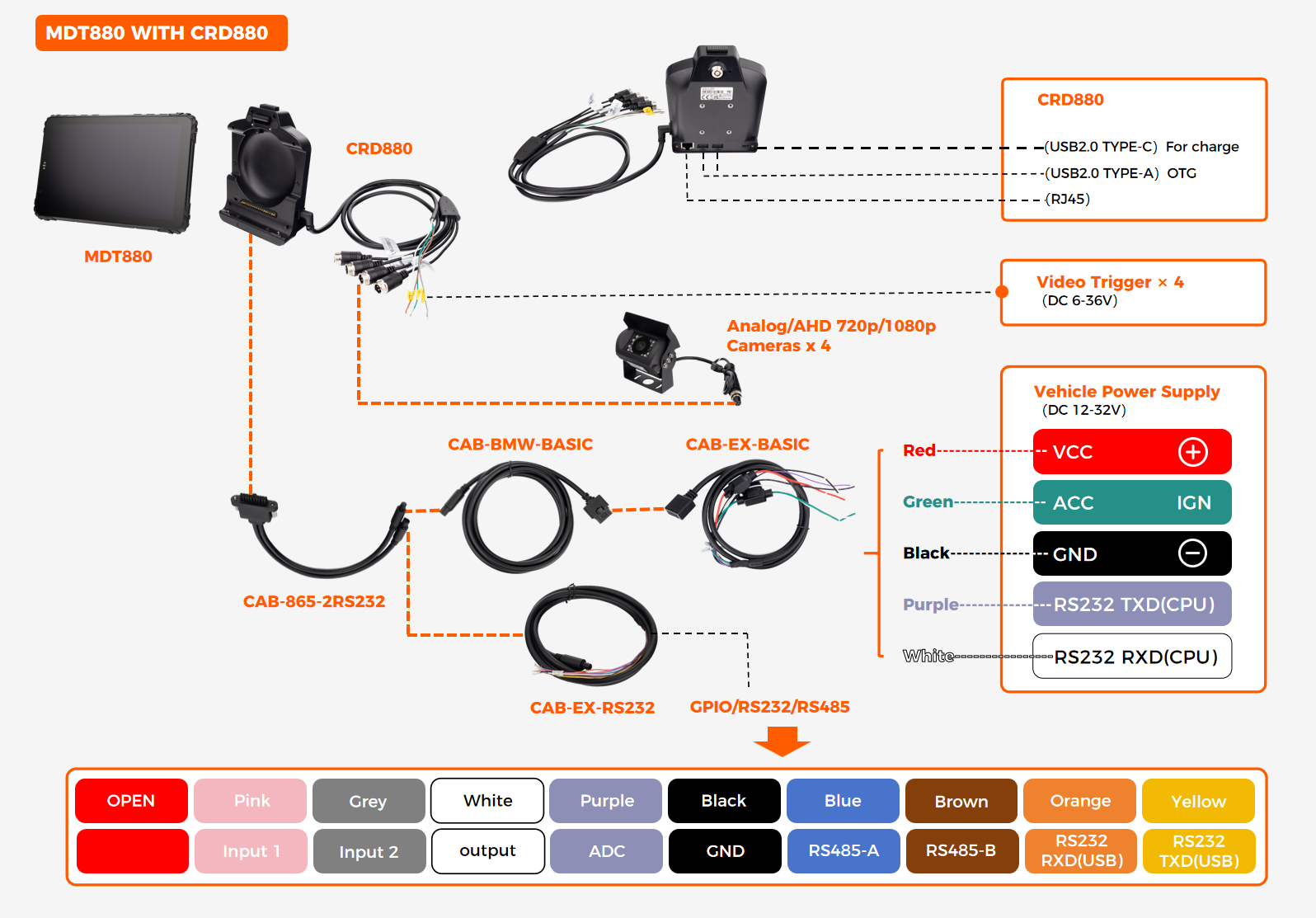

MDT880 + CRD880
All‑in‑one cradle: 4× AHD camera inputs, 4× triggers, and vehicle power — no external hub required.
4× AHD cameras
4× trigger inputs
9-36V / ignition sense
Pogo‑pin docking
MDT865 + CRD865 TYPE‑F
Flexible configuration: CRD865 TYPE‑F supports 4‑channel AHD via external hub + 1 direct AHD on cradle (up to 5 cameras total). Ideal for complex retrofits and multi‑camera coverage.
4× AHD cameras via hub
4× triggers with extension
9-36V / ignition sense
Ideal for retrofits and custom I/O
4‑Channel Tablet Applications
Deploy vehicle video across key fleet safety scenarios
Bus & Transit
Passenger surveillance, driver monitoring, and door‑side cameras for public transport.
Learn more →
Truck & Fleet
ADAS, blind‑spot detection, and cargo monitoring for long‑haul and delivery fleets.
Learn more →
Heavy Equipment
360° surround view, rear‑view, and side cameras for excavators and loaders.
Learn more →
School Bus Safety
Interior surveillance, driver monitoring, and RFID integration.
Learn more →Consumer Tablet vs 4‑Channel AHD Tablet
| Feature | Consumer Tablet | TOPICON 4‑Channel AHD Tablet |
|---|---|---|
| Camera Inputs | ✕ USB webcam only | ✓ 4× AHD (hardware‑level) |
| Trigger Inputs | ✕ None | ✓ 4× (signal/brake/reverse/door) |
| Vehicle Power | ✕ 5V USB only | ✓ 9-36V with ignition sense |
| Mounting | ✕ Suction cup | ✓ Vehicle dock + anti‑vibration |
Frequently Asked Questions
How many cameras can be connected?
Both MDT880 and MDT865 support up to 4 AHD cameras directly via compatible cradles (CRD880 for MDT880, CRD865 series for MDT865). For projects requiring more than 4 cameras, an external camera hub can be added to support up to 5 total AHD inputs. Contact our team for custom camera configurations.
Does it support ADAS or DMS?
Yes. The tablet can run ADAS/DMS software using camera inputs. Our SDK allows integration with third‑party vision algorithms. Both MDT880 and MDT865 platforms support this capability.
Can video be uploaded in real time?
Yes. With 4G/5G and GPS, the tablet can stream live video or upload event‑based clips (e.g., harsh braking, trigger activation).
What's the difference between CRD880 and CRD865 cradles?
CRD880 is designed for MDT880 with 4 direct AHD camera inputs — ideal for standard vehicle video deployments. CRD865 series (for MDT865) offers flexible I/O options and supports external camera hub expansion for up to 5 cameras. Choose based on your tablet platform and camera count requirements.
Can I customize camera count or trigger configuration?
Yes. We offer hardware customization for camera count (up to 5 via hub), trigger inputs, and video recording logic. Contact our video integration team →
Related Technical Applications
Choose your video integration path — same tablet platform, different I/O configurations
Ready to Add 4‑Channel Video to Your Fleet?
Get a quote, request a video demo kit, or talk to our integration engineers.
