Rugged Vehicle Mount Terminal for Fleet & Industrial Vehicles
A vehicle mount terminal is a fixed-installation computing platform permanently integrated into the vehicle's power, data, and mounting infrastructure. Unlike detachable tablets, our industrial vehicle terminals and vehicle mount computers feature locking Circular Connectors M (M9), dual CAN Bus (J1939), 9-36V direct power, and bolt-down mounting — built to become part of the vehicle for 5-7 years without removal. For fleets that need a single device for both in-cab telematics and off-vehicle walkaround inspections, our MDT series offers quick-release vehicle docks — same Android platform, different deployment flexibility.All terminals run Android OS — same MDM, same apps, same SDK as our fleet tablets.
MDT865/MDT880 | Drop, Vibration & Temperature Testing
Vehicle Mount Terminal Hardware Platforms
6 Android-based fixed-installation terminals — aviation connectors or hardwired vehicle docks. Same OS, same MDM, same apps.
PC1080 Panel PC
8" Fixed Vehicle Terminal · M9 Circular Connectors
✓ M9 circular connectors
✓ Dual CAN Bus + RS232 + GPIO
✓ 9-36V DC · RAM + VESA mount
PC1090 Panel PC
10" Large Screen Terminal · Heavy Equipment HMI
✓ M9 circular connectors
✓ Dual CAN + Ethernet + Camera
✓ 9-36V DC · RAM + VESA mount
MDT880 5G
8" Fleet Terminal · Hardwired Dock, Dual CAN Bus, AHD Camera
✓ Dock hardwired: 9-36V + ignition sense
✓ 4-Ch AHD via dock
✓ MIL-STD-810H · Tablet removable for service
MDT865
8" Fleet Terminal · Hardwired Dock for ELD & Dispatch
✓ Dock hardwired: 9-36V + ignition sense
✓ 4G LTE + GPS + CAN Bus via dock
✓ Tablet removable for off-vehicle tasks
MDT864
8" Fixed MDT · Hardwired Dock, Built-In Vehicle Mount
✓ Wide voltage input · 24/7 continuous rated
✓ Dock hardwired to vehicle power
✓ GPS + 4G LTE
MDT1065
10" Large Screen Terminal · Hardwired Dock for Telematics Dashboard
✓ Dock hardwired: 9-36V + ignition sense
✓ RS232 + GPIO via dock
✓ Tablet removable for service
→ All terminals run Android OS — same MDM, same apps, same SDK as our detachable vehicle mount tablets. The difference: M9 Circular Connector models (PC1080/PC1090) are permanently bolted with thread-locked connectors for zero-maintenance fixed installation. Hardwired Dock models (MDT864/880/865/1065) use fixed vehicle docks with 9-36V direct wire and ignition sense, while the tablet itself remains removable for service and off-vehicle tasks. For daily undock scenarios, see the vehicle mount tablet page →.
Three Dock Tiers for Every Fleet Environment
Same MDT865 or MDT880 tablet. Three dock configurations — from standard quick-release to all-metal heavy-duty to integrated barcode scanning. System integrators deploy one tablet platform across multiple vehicle types by changing the dock, not the device.

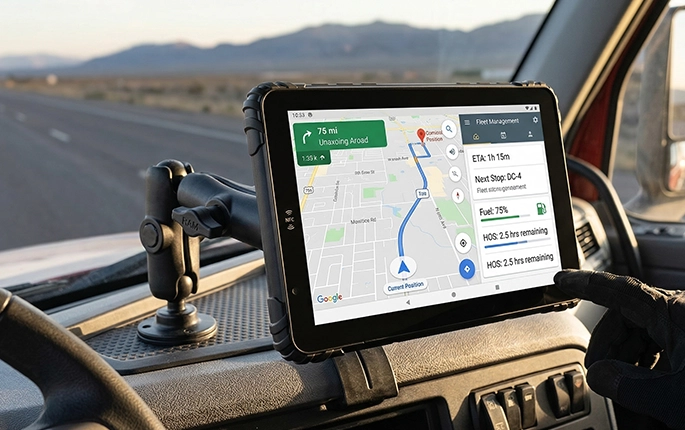

Quick-Release Dock
RAM-mount bolt-on base. One-hand dock and undock in 1 second. Pogo-pin contacts, 10,000+ mating cycles.
Light Trucks
Field Service
All-Metal Hand-Latch Dock
BKT865 · BKT1065 Variants
IP67-rated version available
RAM-mount bolt-on base. Full aluminum alloy. Hand-screw latch — no tools to swap tablet. Non-locking for frequent driver changes. IP67 waterproof connector config available.

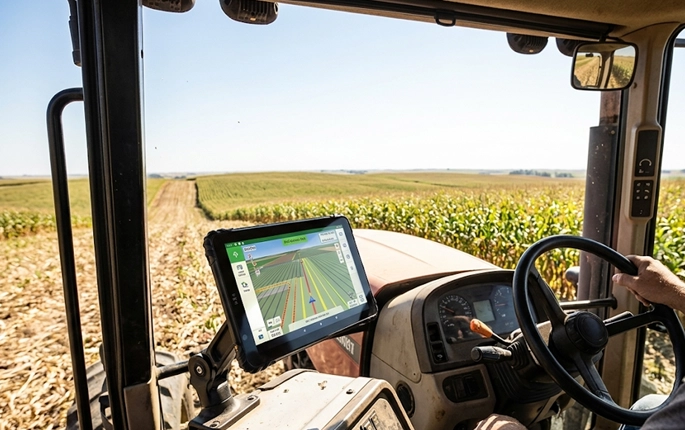

Agricultural Tractors
Heavy Construction
Integrated 1D/2D Barcode Scanner Dock
RAM-mount bolt-on base. All-metal extended dock with built-in barcode imager. Hand-screw latch. Hands-free auto-scan or handheld mode.
Waste Management
Yard Logistics
→ All three dock tiers mount to the vehicle the same way — bolted via RAM mount with screws. The difference is in how the tablet connects to the dock: standard quick-release (pogo-pin), all-metal hand-screw latch (with optional IP67 waterproof connector), or all-metal hand-screw latch with integrated barcode scanner. One tablet platform, three dock tiers, unlimited fleet configurations. See the full 17-dock configuration matrix →.
Integrated 1D/2D Barcode Scanner Docking
Tool-Less Tablet Swap · Hands-Free Auto-Scan · Forklift & Waste Management
Like the All-Metal Dock, the base mounts to the vehicle once via RAM mount and stays there. The built-in 1D/2D barcode imager transforms the tablet into an automated data capture system — eliminating the separate handheld scanner and its coiled cable that gets tangled, pulled loose, or damaged in busy vehicle cabs and loading areas.
Integrated 1D/2D Barcode Scanner Docking
Tool-Less Tablet Swap · Hands-Free Auto-Scan · Forklift & Waste Management
Like the All-Metal Dock, the base mounts to the vehicle once via RAM mount and stays there. The built-in 1D/2D barcode imager transforms the tablet into an automated data capture system — eliminating the separate handheld scanner and its coiled cable that gets tangled, pulled loose, or damaged in busy vehicle cabs and loading areas.
Fixed Terminal vs Detachable Tablet: Two Different Architectures
Both are professional-grade. Both run Android. The right choice depends on whether the device needs to leave the vehicle.
Vehicle Mount Terminal
Fixed Installation · This Page
Vehicle Mount Tablet
Detachable Docking · Learn More →
When a Detachable Tablet Is the Wrong Answer
Some fleet and industrial deployments demand a computing platform that never moves.
Public Transit & Bus Consoles
The device is part of the dashboard. Drivers never remove it. Tamper-proof installation is a regulatory requirement for public-facing transit systems.
Mining & Heavy Equipment
Extreme vibration makes any connector a failure point. M9 circular connectors thread-lock in place — pogo-pin docks cannot survive this environment long-term.

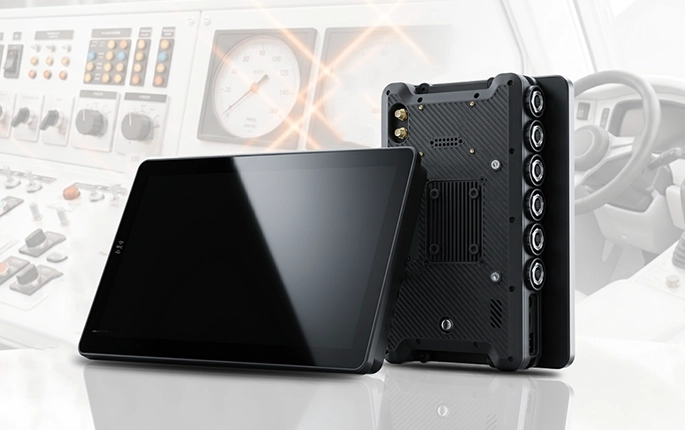

Industrial HMI & Control Cabinets
Fixed machine interface — not a portable tool. VESA mount, panel mount, or bolt-down. The device becomes part of the equipment it controls.
Traditional VMTs vs Next-Gen Slim Quick-Release Terminals
Most vehicle mount terminals on the market haven't changed in a decade. They're thick, heavy, and permanently bolted in place — forcing fleets to buy a second handheld device for any task that happens outside the cab. Here's how that compares to a modern slim, quick-release architecture.
The bottom line: A traditional fixed VMT forces your fleet into a two-device architecture. A slim quick-release terminal like the MDT865 or MDT880 lets one device do both jobs — reducing procurement cost, simplifying MDM management, and eliminating data sync failures between devices. Explore vehicle mount tablets with quick-release docks →
Vehicle Terminal Hardware in Action
See how TOPICON rugged terminals and MDTs perform in real-world fleet and industrial deployments
Reliability Test — Drop, Vibration & Temperature
MDT865 and MDT880 undergoing MIL-STD-810G validation — sustained vibration, multi-axis drop testing, and thermal cycling.
4-Channel AHD Camera Integration
MDT880 with CRD880 — multi-camera input for 360° visibility, blind spot elimination, and fleet safety monitoring.
GPS Enhancement & Fleet Tracking
MDT865 external antenna setup for high-precision GPS — real-time vehicle tracking and telematics integration.
→ All features are available for OEM/ODM customization. Contact us for integration support.
What Makes a Fixed Vehicle Terminal Different
Engineering decisions that separate fixed terminals from detachable tablets — all running the same Android platform
Circular Connectors M (M9)
Thread-locked connectors that physically cannot vibrate loose. All I/O — power, CAN Bus, RS232, Ethernet, cameras — routes through a single locking connector bundle.
Direct Wire Vehicle Power
9-36V DC hardwired with inline fuse and ignition sensing. No charging circuit to fail. Designed for continuous 24/7 operation without battery degradation.
Bolt-Down Mounting + MIL-STD-810G
Fixed bolt-on installation. RAM mount and 75×75mm VESA compatible for initial positioning, then locked in place. Certified for sustained vehicle vibration.
Full Peripheral Ecosystem
Dual CAN Bus (J1939 + CAN 2.0B), RS232/RS485, GPIO, M12 Ethernet, AHD camera inputs — all connected through locking aviation or dock connectors.
Android Enterprise + 5-Year Lifecycle
Same Android platform as our fleet management tablets — same MDM, same apps, same SDK. 5-year security patch guarantee.
OEM Customization Ready
Custom I/O configuration, private label branding, firmware customization, and MDM pre-enrollment. Flexible MOQ for system integrators. Explore OEM →
Where Fixed Vehicle Terminals Are Deployed
Key Applications & Industry Workflows
Vehicle mount terminals serve distinct workflows across industries — from daily pre-trip inspections to continuous in-cab telematics
A Loose Connector Is a Single Point of Failure
In fixed vehicle installations, every connector is a potential failure point. M9 circular connectors eliminate this risk entirely.
Vibration Kills Connectors
Pogo-pin contacts wear under sustained vibration. M9 circular connectors thread-lock and physically cannot loosen — designed for mining equipment and heavy machinery where maintenance access is limited.
Public-Facing Security
Bus consoles, train cabs, and public terminals require tamper-proof installation. A detachable tablet can be removed in seconds — a bolted terminal requires tools and deliberate effort.
Zero Maintenance for 5-7 Years
Fixed terminals are installed once and operate continuously for the deployment lifecycle. No dock maintenance. No contact cleaning. No connector replacement. Just reliable vehicle computing year after year.
Why it matters: A connector failure in a mining truck or bus console isn't a quick swap — it's a vehicle out of service. Fixed terminals with aviation connectors eliminate the most common failure point in vehicle computing. For detachable tablet solutions, explore vehicle mount tablets →.
Frequently Asked Questions
What is the difference between a vehicle mount terminal and a vehicle mount tablet?
A vehicle mount terminal is permanently installed with aviation connectors and bolt-down mounting — designed to never be removed. A vehicle mount tablet uses a docking station with pogo-pin contacts, allowing one-hand dock and undock. Both run Android OS with the same MDM and apps. Explore vehicle mount tablets →
Why use aviation connectors instead of pogo-pin docking?
Circular Connectors M (M9) thread-lock into place and physically cannot vibrate loose — critical for mining equipment, tracked vehicles, and heavy machinery where sustained vibration would degrade pogo-pin contacts. They are designed for permanent, zero-maintenance connections over a 5-7 year lifecycle.
Can fixed vehicle terminals integrate with CAN Bus?
Yes. All TOPICON vehicle mount terminals support dual CAN Bus (J1939 + CAN 2.0B) natively. Engine diagnostics, fuel monitoring, and fault code reading are available without external gateways. Explore CAN Bus solutions →
What mounting options are available for vehicle mount terminals?
All TOPICON fixed terminals support RAM mount ball patterns for initial positioning and 75×75mm VESA mount for panel/console integration. Once positioned, the device is bolted in place — adjustable during installation, permanent during operation.
Do vehicle mount terminals run the same Android apps as fleet tablets?
Yes. TOPICON fixed terminals run the same Android OS as our MDT platforms — same apps, same MDM, same SDK/API. The only difference is the physical installation architecture (fixed vs detachable), not the software platform. One MDM policy manages both terminals and tablets across your fleet.
Can I get OEM customization for fixed vehicle terminals?
Yes. TOPICON provides full OEM/ODM customization for fixed vehicle terminals — custom I/O configuration, private label branding, firmware customization, and MDM pre-enrollment. Contact our OEM team →
One Device, Two Roles — How a Slim 17mm Tablet with Quick-Release Dock Eliminates the Need for a Second Device
Traditional VMTs force fleets into a two-device architecture — one fixed terminal, one handheld for off-vehicle tasks. Learn how 17mm slim tablets with quick-release docks change the hardware equation, especially for European fleets with mandatory pre-trip walkaround inspections.
Read the Full Guide →Deploying Fixed Vehicle Terminals for Your Fleet?
TOPICON provides fixed-installation vehicle terminals with aviation connectors, dual CAN Bus, and full OEM customization — engineered for permanent deployment in buses, mining equipment, and industrial vehicles. All running the same Android platform as our fleet tablets.
