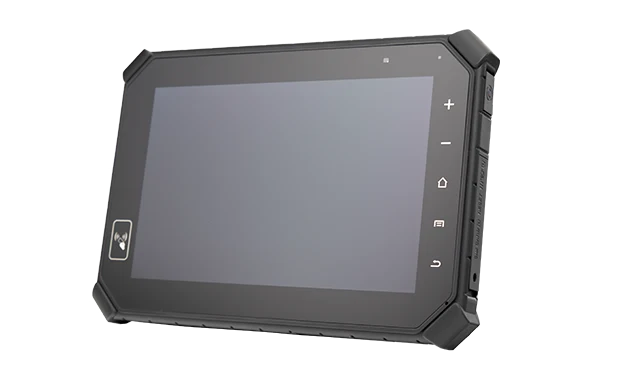

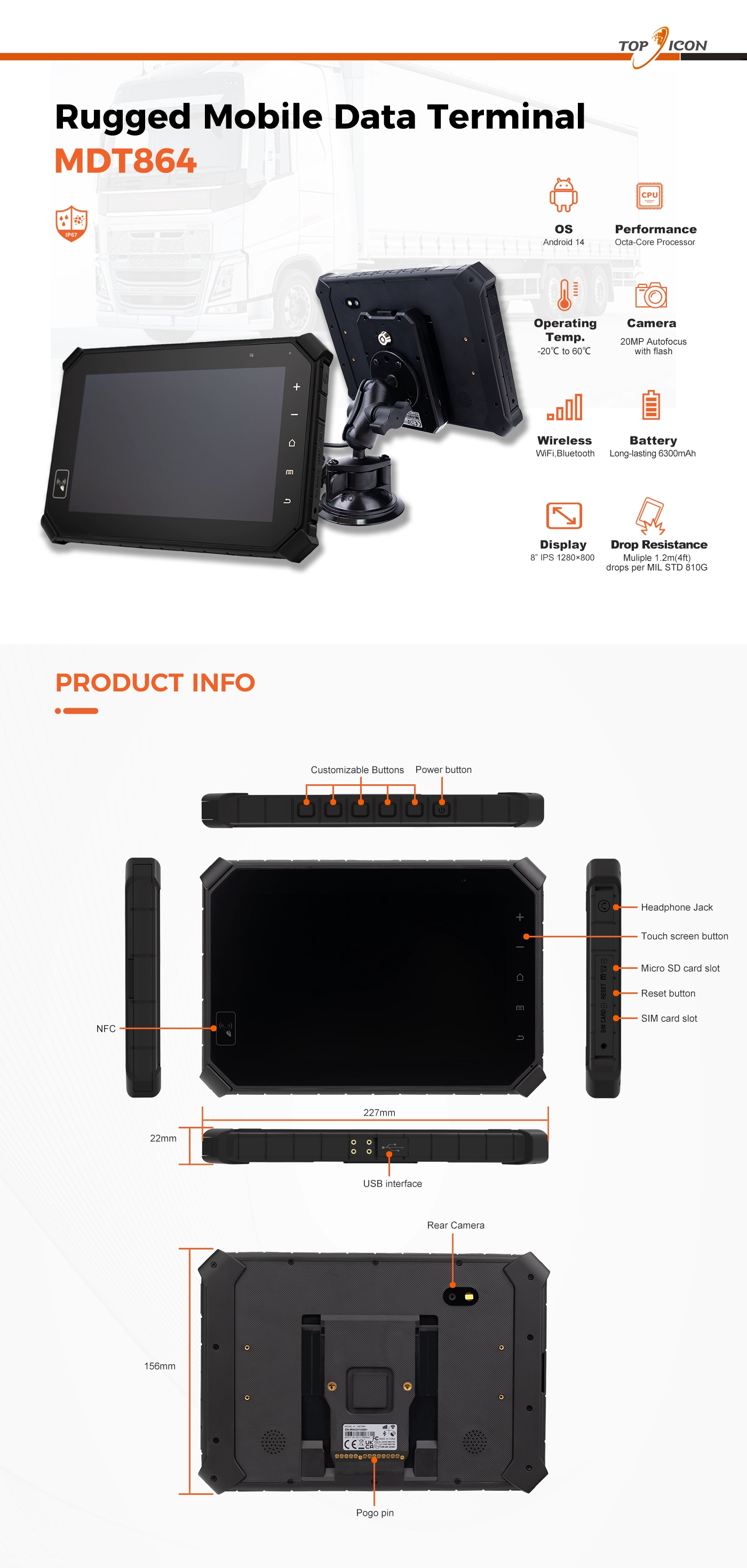

MDT864
8" Rugged Vehicle-Mount Tablet
Heavy-Duty 8-inch Android 14 Rugged Tablet with RJ45 Wired Ethernet Docking Station.
Optimized for extreme conditions, the Topicon MDT864 is an 8-inch industrial tablet packing an Android 14 OS, a massive 6300mAh battery, and a built-in barometric altimeter. Designed for deep fleet integration, its rugged vehicle cradle offers native RJ45 Ethernet and RS232 connectivity. With optional 1D/2D barcode scanning and a 4-channel 1080p AHD camera hub for mobile digital video recording, the MDT864 is the premium hardware choice for mining, heavy machinery, and secure fleet dispatching.
Optimized for extreme conditions, the Topicon MDT864 is an 8-inch industrial tablet packing an Android 14 OS, a massive 6300mAh battery, and a built-in barometric altimeter. Designed for deep fleet integration, its rugged vehicle cradle offers native RJ45 Ethernet and RS232 connectivity. With optional 1D/2D barcode scanning and a 4-channel 1080p AHD camera hub for mobile digital video recording, the MDT864 is the premium hardware choice for mining, heavy machinery, and secure fleet dispatching.
Hardware
CPU: MTK platform 2.0GHz Octa-Core Processor
GPS: High sensitivity receiver (GPS, GLONASS, GALILEO)
Display: 8 inch, IPS panel (1280 x 800 pixel), LED Backlight
Touch Panel: Capacitive multi-touch panel (Supports Glove, Wet & Stylus modes)
Bluetooth: V5.0
WLAN: Wi-Fi IEEE 802.11 a/b/g/n/ac (Dual-Band 2.4GHz/5GHz), 802.11 d/e/h/i/j/k/r/v/w, 5GHz up to 500 Mbps, 2.4GHz up to 144Mbps
Camera (back camera): 20MP autofocus camera with flashlight
Camera (front camera): N/A
Video input: Support one channel AHD 720P, 1080P and analog camera (w/ Cradle)
Support four channels AHD 720P, 1080P and analog camera with HDD loop recording (w/ Camera Hub)
RFID: Yes, optional (Supports front access NFC reader / RFID LF reader modules)
G-sensor: Accelerometer, default
Light sensor: Ambient Light Sensor, default
Motion Sensor: E-Compass, Gyroscope, default
Sensor extensions: Barometric Altimeter
Scanner module: Yes, optional (1D & 2D Imagers)
Antenna: Internal antenna
LED indicator: Two-color LED (Audible tone & Charging Status LED)
Operating Temp: -20℃ to 60℃ (-4°F to 140°F)
Storage Temp: -20℃ to 70℃ (-4°F to 158°F)
Humidity: 90% non-condensing
Sealing: IP67 certified
Drop Spec: 1.2m (4 ft.) drops per MIL-STD-810G
Electrostatic Discharge (ESD): +/-8kVdc air discharge, +/-4kVdc direct discharge, +/-4kVdc indirect discharge
Dimensions: 227mm L x 156mm W x 22mm D
Weight: 825g
Software
Operating System: Android 14 with GMS / Non-GMS

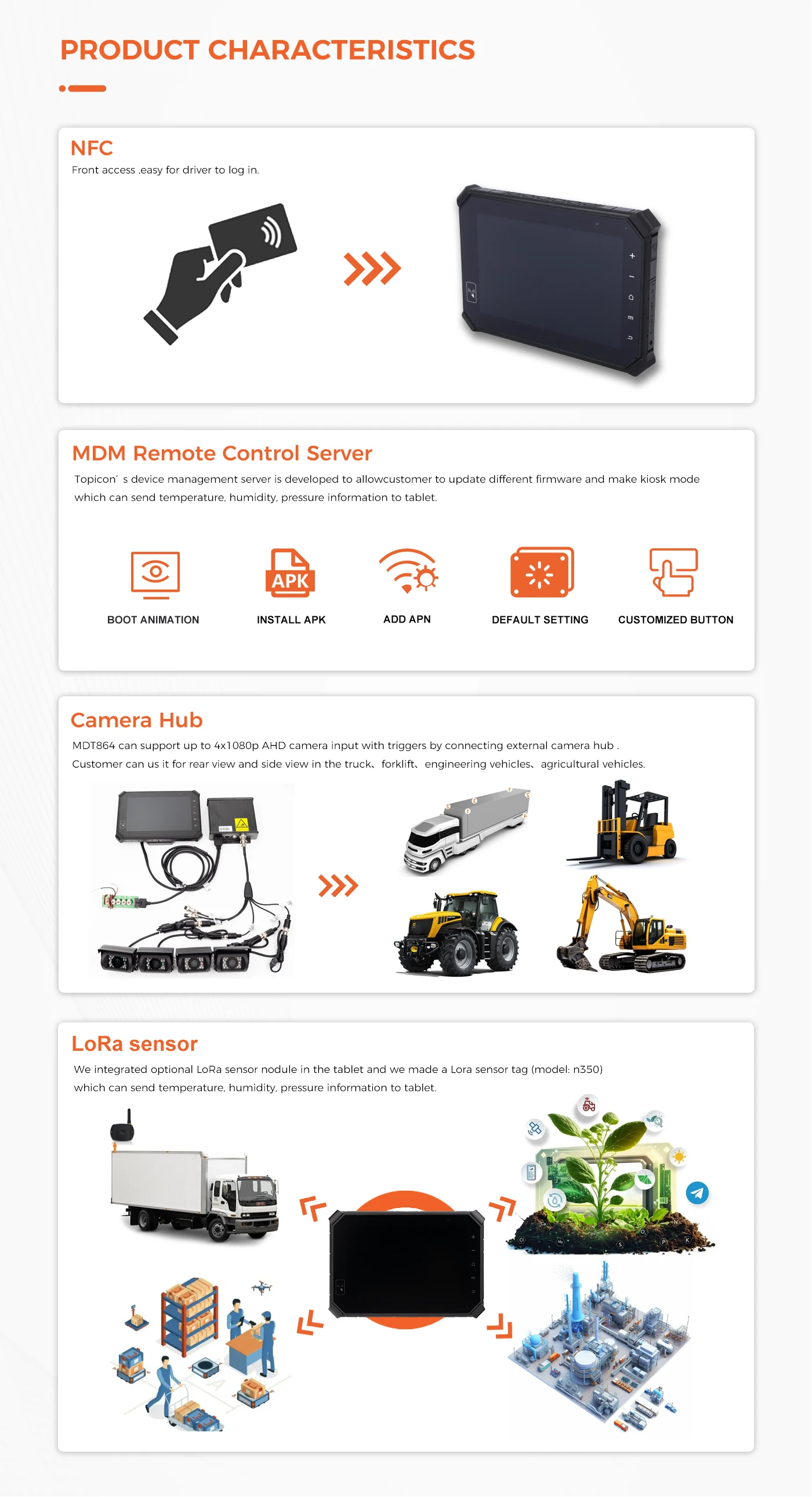

MDM Server Functions: Remote control server (Supports Boot Animation, Install APK, Add APN, Default Setting, Customized Button, Kiosk Mode)
Android applications: TBD
Navigation software: TBD

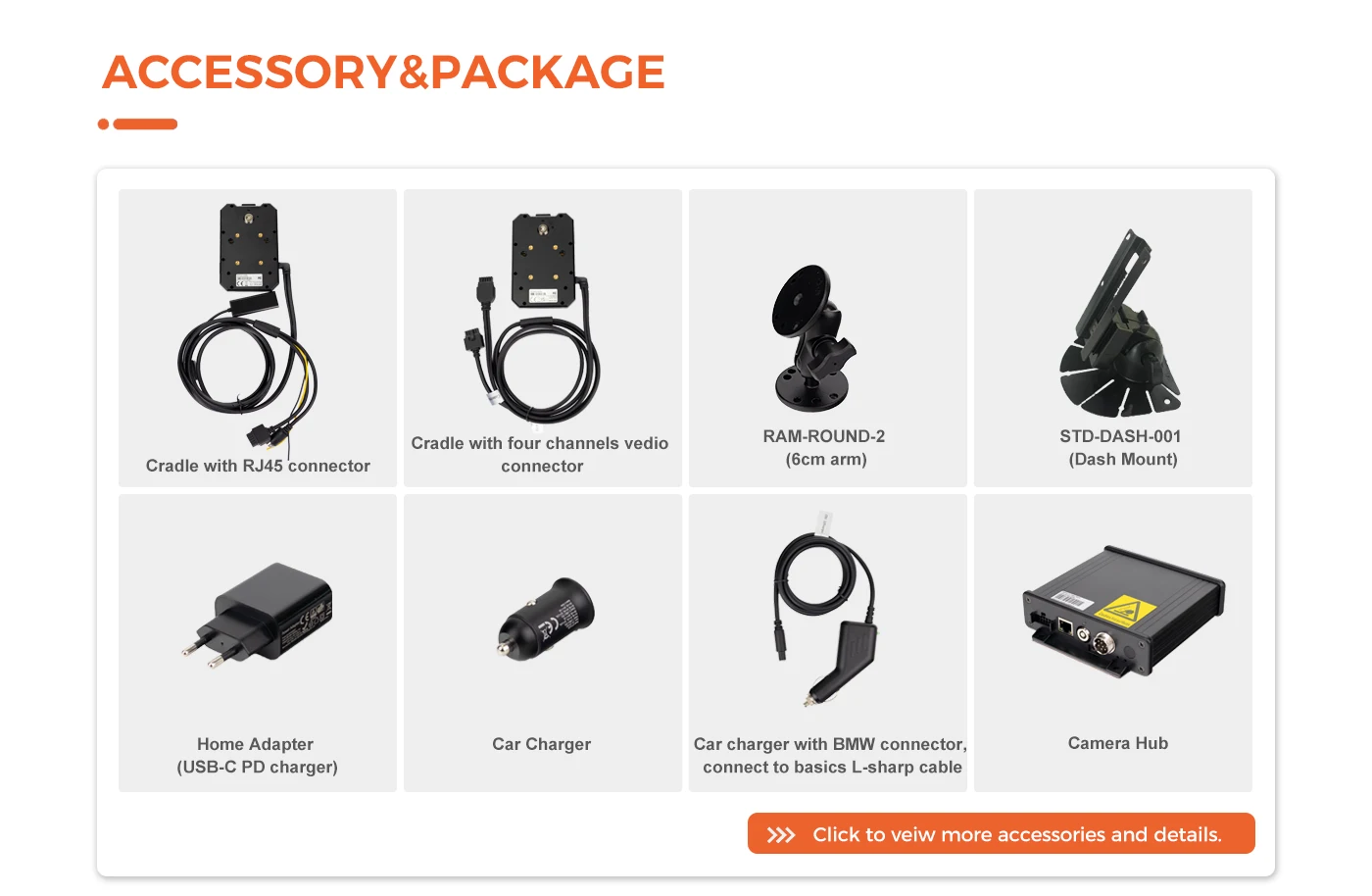

Packaging Detail

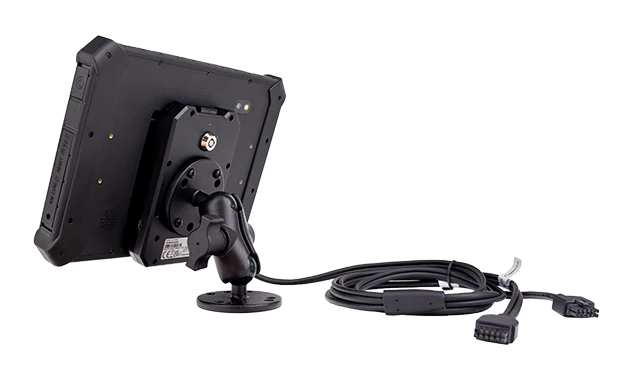

1pc main unit and 1pc vehicle docking station (Cradle)
1pc RAM Mount kit
1pc Type-C cable
1pc Car charger
1pc Screw kit
1pc NFC test card
Cellular Module
Radio Frequency:
2G-GSM: 850/900/1800/1900MHz
3G-WCDMA: B1/B2/B4/B5/B8
4G-LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28/B66
4G-LTE TDD: B38/B40/B41
GNSS: GPS, GLONASS, GALILEO
Memory
Storage (ROM): 64GB eMMC
Memory (RAM): 4GB LPDDR4X
Expansion Slot: User accessible MicroSD (TF) card slot, supports up to 512GB
Interface
USB Connector: 1 x USB Type-C 2.0 OTG on the device
Audio Jack: 1 x 3.5mm Audio Headphone Jack on the device

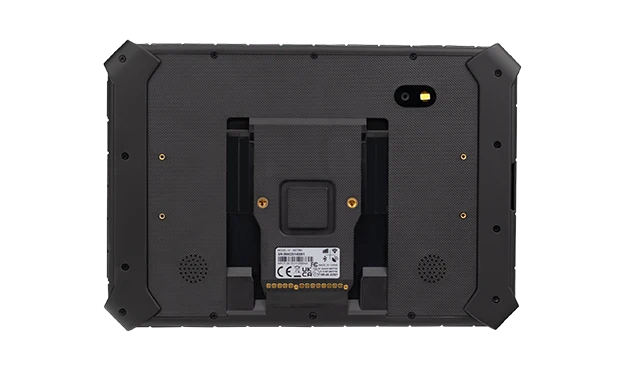

Pogo pins: 18-pin docking connector

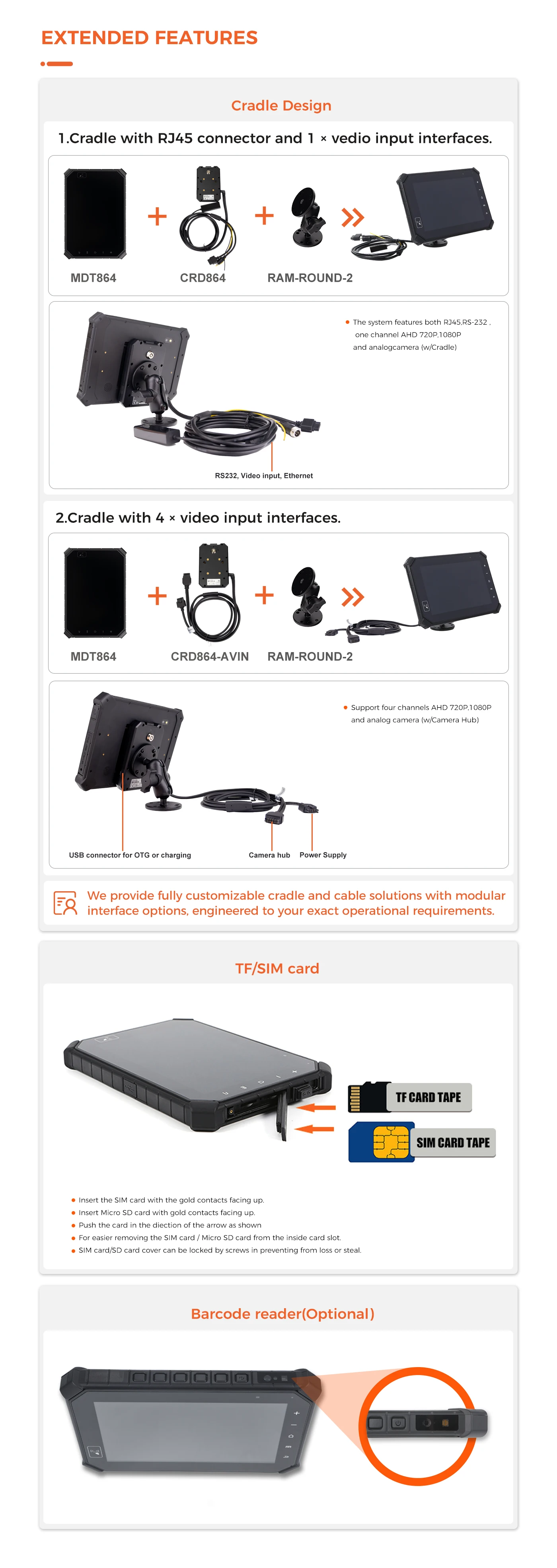

Cradle Interfaces: 1 x RS232, 1 x RJ45 Connector, 1 x Mini USB 2.0 OTG, USB OTG or charging
SIM card slot: 1 x Standard-SIM slot
Battery
Capacity: Rechargeable Lithium-ion Battery 3.7V 6300mAh
