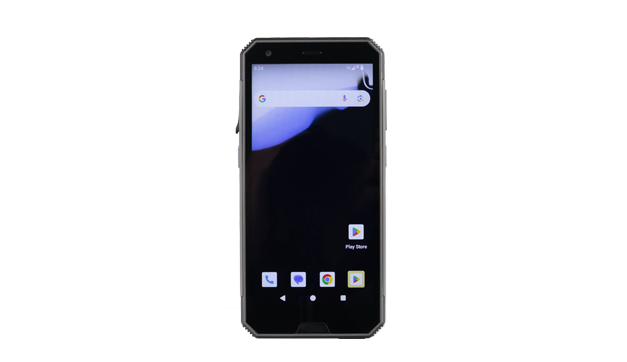

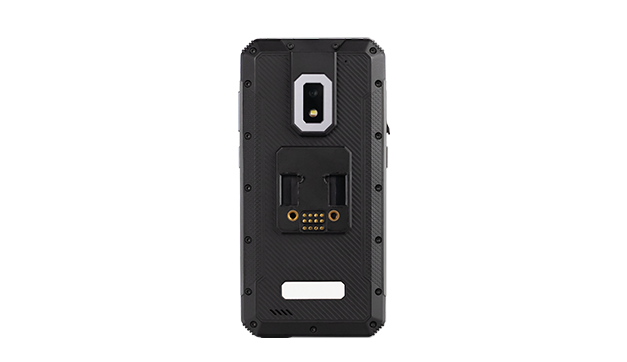

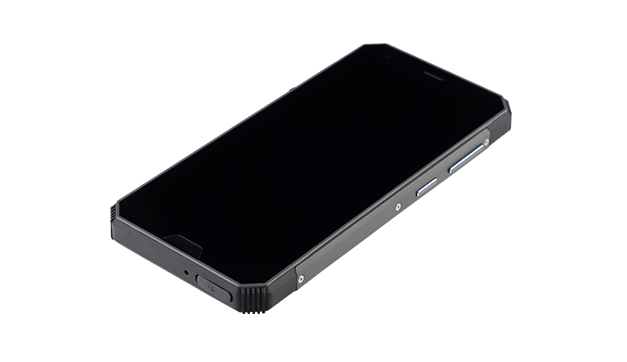

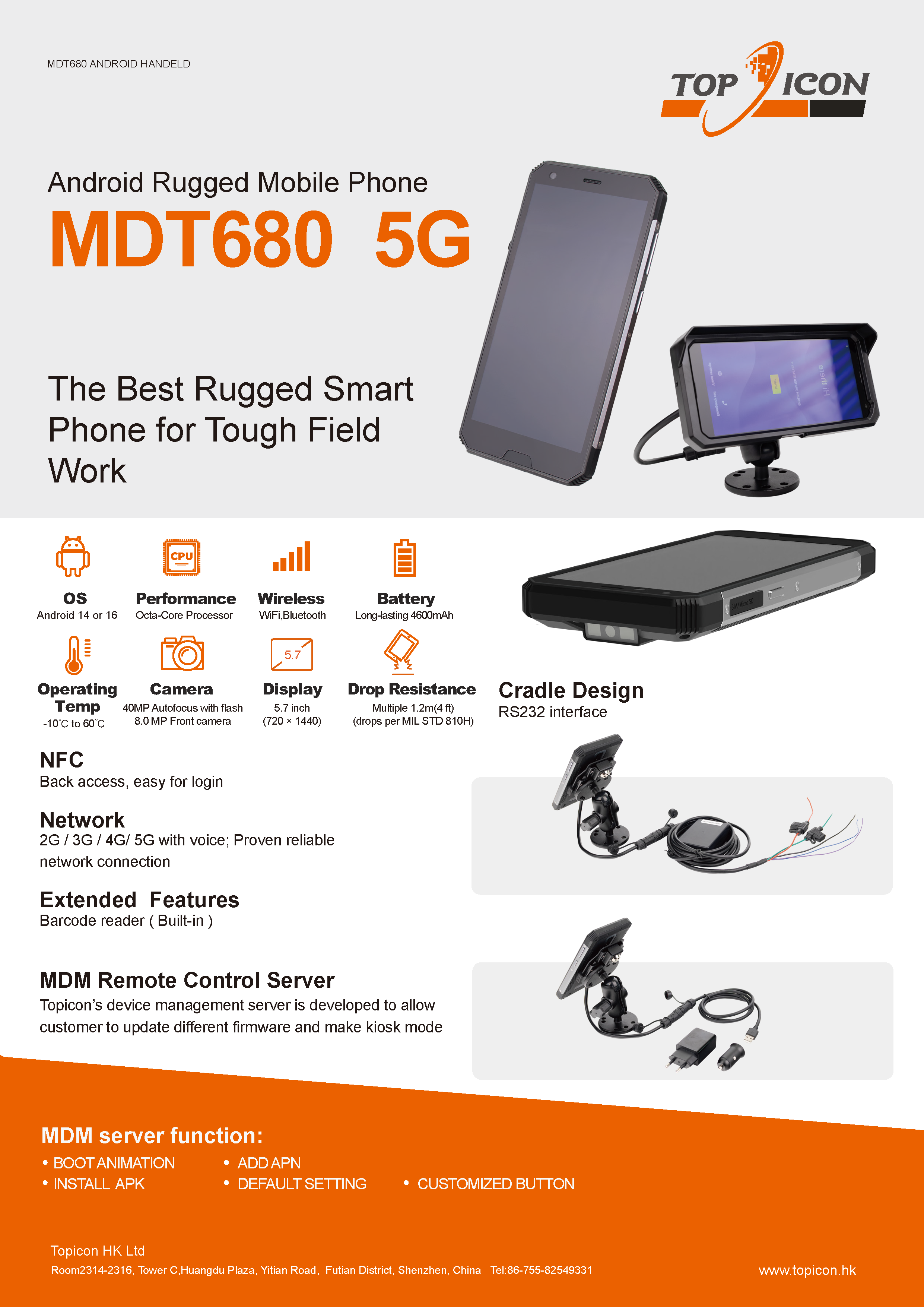

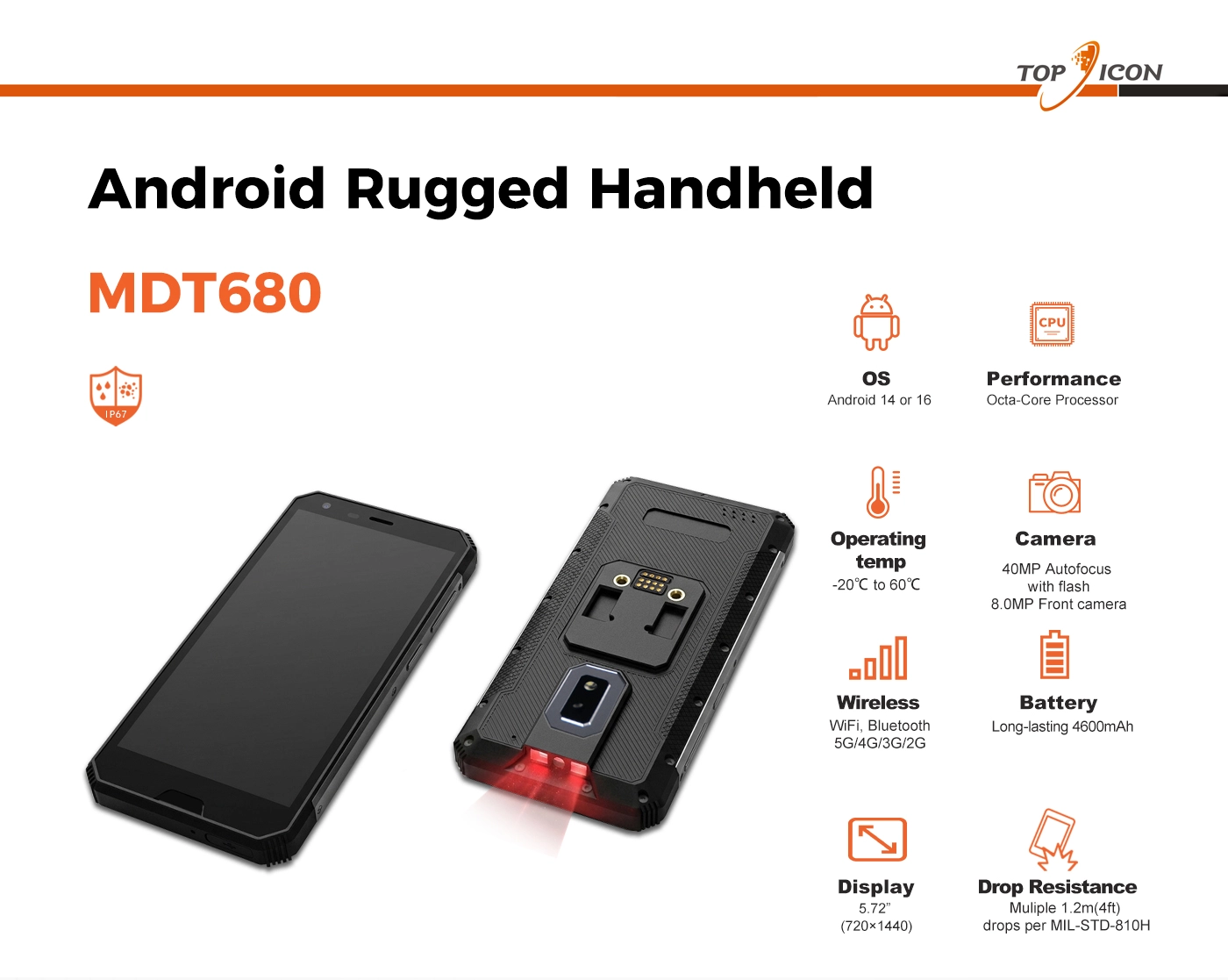

MDT680

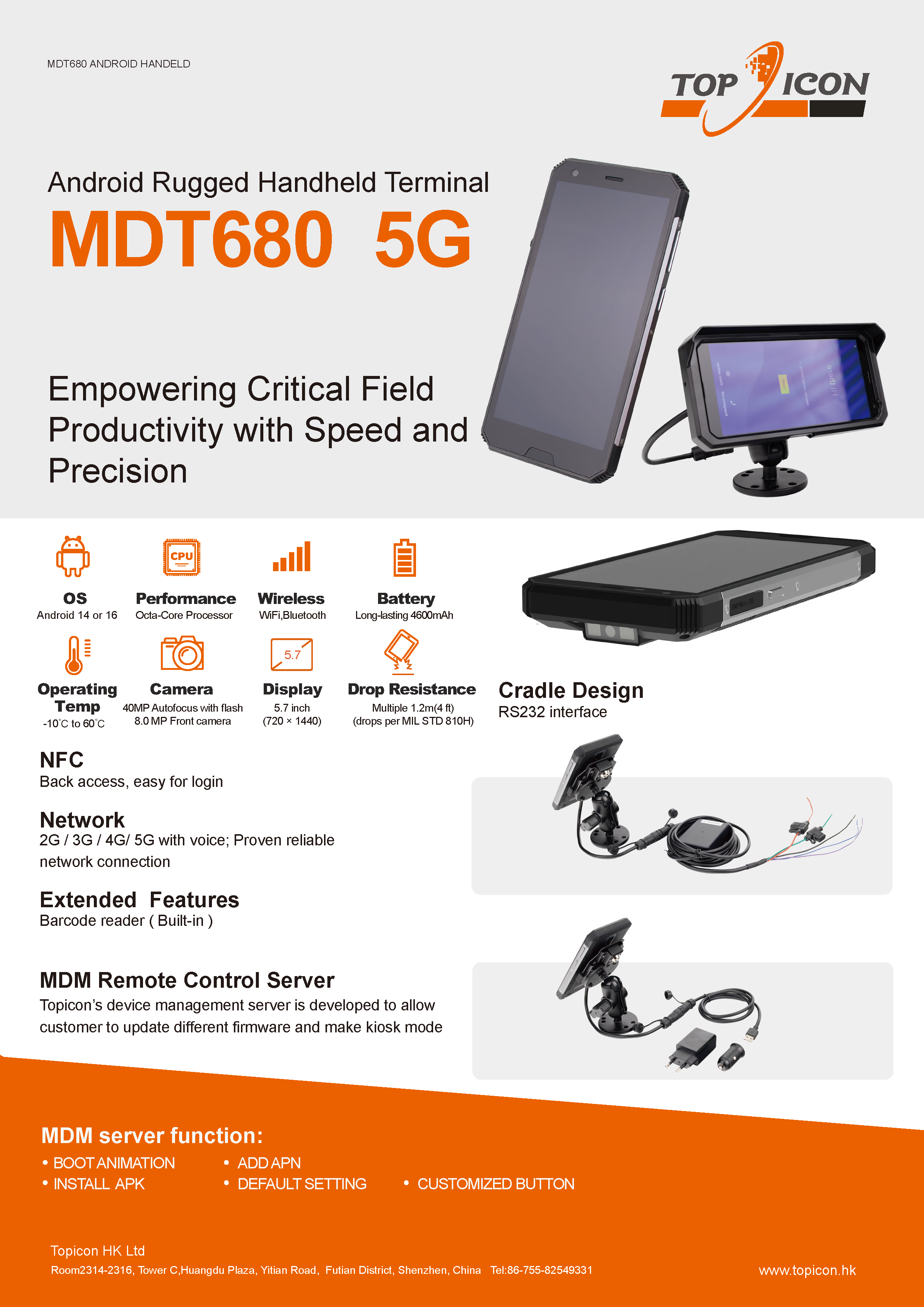

5.7-Inch Android handheld terminal for Warehouse & Field Service
The Ultimate 5.7-inch 5G Android 16 Rugged Smartphone with Built-in 1D/2D Barcode Scanner.
As the next-generation evolution of compact enterprise hardware, the Topicon MDT680 5G packs flagship industrial power into a pocket-sized 5.7-inch form factor. Outfitted with dedicated European and North American (NAR) 5G cellular bands, global eSIM support, and sub-meter L1+L5 dual-band high-precision GNSS, it guarantees flawless navigation for motorcycle tracking and demanding field operations. Upgraded to a blazing 8GB+128GB UFS 2.2 memory setup and the latest MIL-STD-810H toughness standard, this IP67-armored device features a native built-in 1D/2D hardware barcode imager, a 40MP ultra-focus camera, and a heavy-duty RS232 charging cradle, defining a new elite class of handheld fleet telematics.
As the next-generation evolution of compact enterprise hardware, the Topicon MDT680 5G packs flagship industrial power into a pocket-sized 5.7-inch form factor. Outfitted with dedicated European and North American (NAR) 5G cellular bands, global eSIM support, and sub-meter L1+L5 dual-band high-precision GNSS, it guarantees flawless navigation for motorcycle tracking and demanding field operations. Upgraded to a blazing 8GB+128GB UFS 2.2 memory setup and the latest MIL-STD-810H toughness standard, this IP67-armored device features a native built-in 1D/2D hardware barcode imager, a 40MP ultra-focus camera, and a heavy-duty RS232 charging cradle, defining a new elite class of handheld fleet telematics.

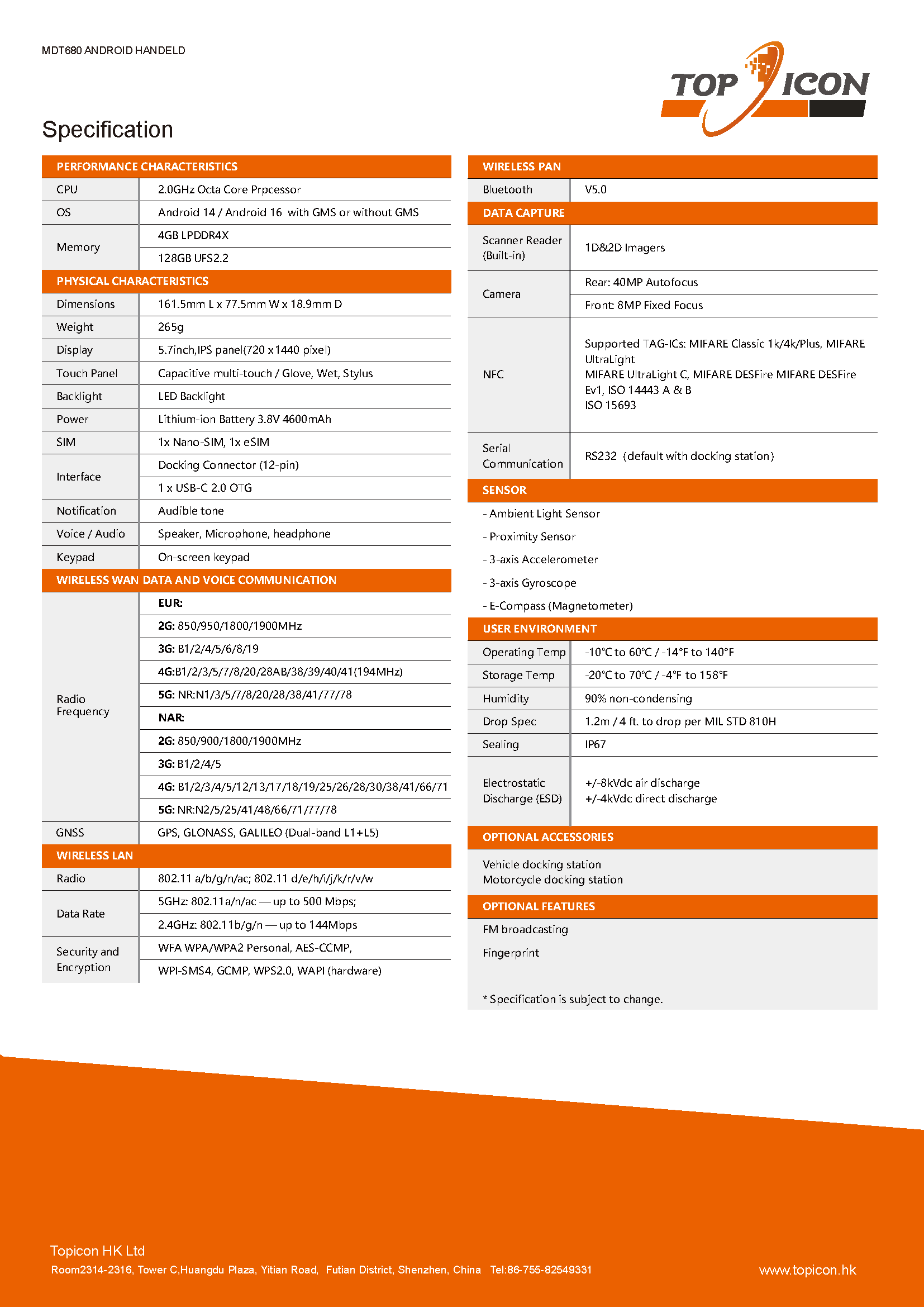

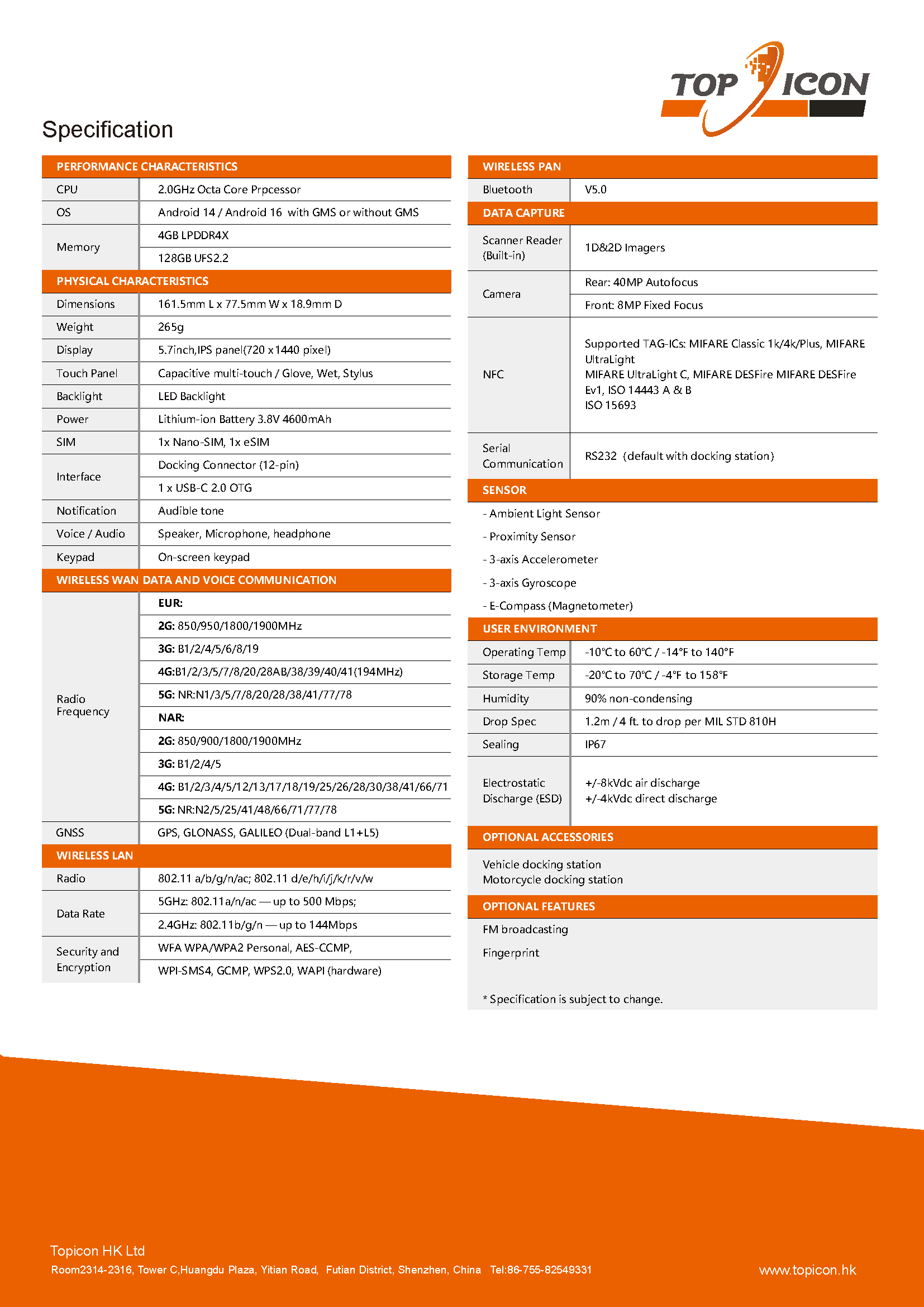

Hardware
CPU: MTK platform 2.0GHz Octa-Core Processor
GPS: High sensitivity receiver (GPS, GLONASS, GALILEO), Dual-band L1+L5
Display: 5.7 inch, IPS panel (720 x 1440 pixel), LED Backlight
Touch Panel: Capacitive multi-touch panel (Supports Glove, Wet & Stylus modes)
Bluetooth: V5.0
WLAN: Wi-Fi IEEE 802.11 a/b/g/n/ac (Dual-Band 2.4GHz/5GHz), 802.11 d/e/h/i/j/k/r/v/w, 5GHz up to 500 Mbps, 2.4GHz up to 144Mbps
Camera (back camera): 40MP autofocus camera with flashlight
Camera (front camera): 8MP Fixed Focus camera

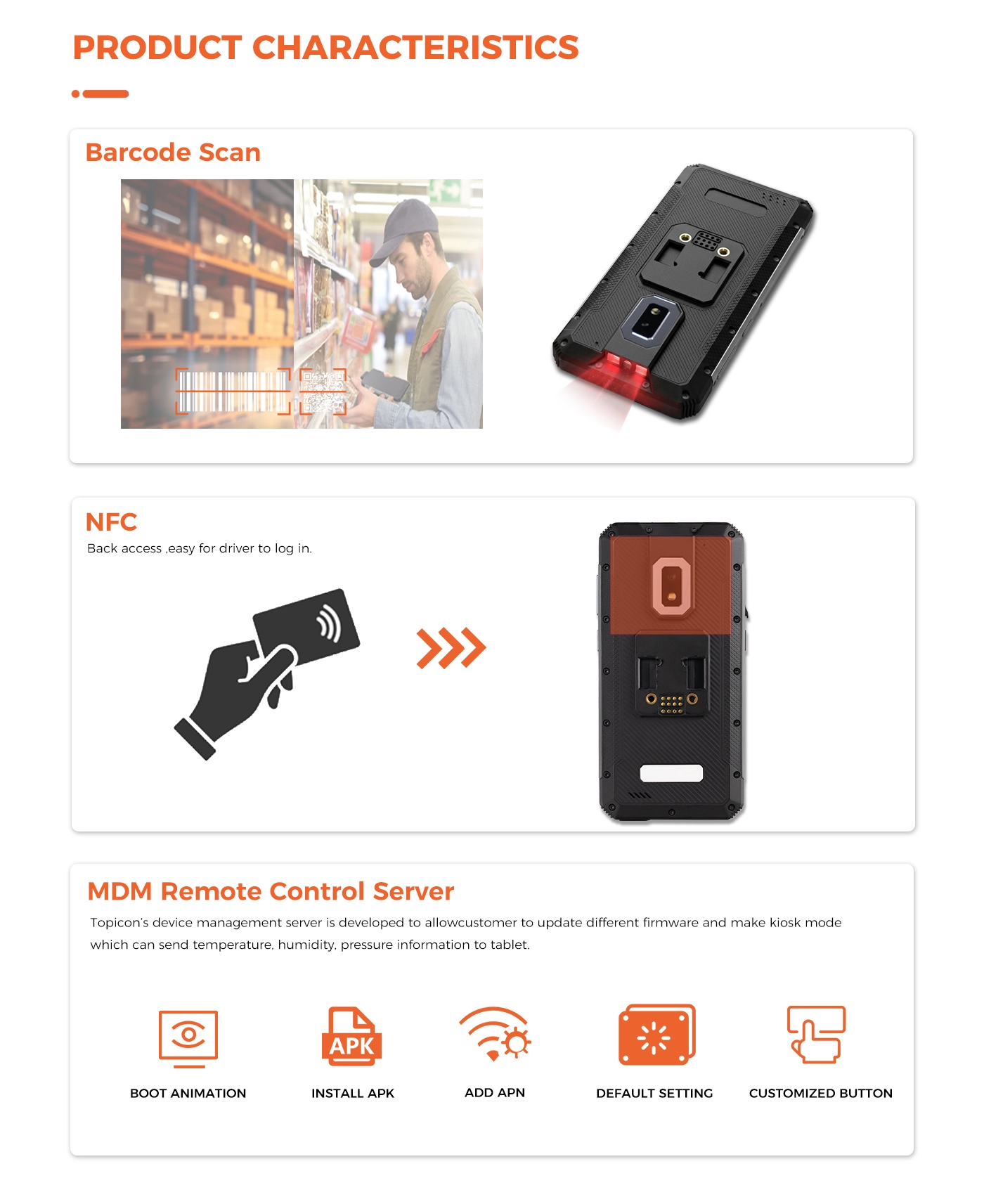

Scanner module: Yes, Built-in (1D & 2D Imagers)
RFID: Yes, optional (Supports back access NFC reader)
G-sensor: 3-axis Accelerometer, default
Light sensor: Ambient Light Sensor, default
Motion Sensor: E-Compass (Magnetometer), 3-axis Gyroscope, Proximity Sensor, default
Optional Features: FM broadcasting, Fingerprint
Antenna: Internal antenna
LED indicator: Two-color LED (Audible tone & Charging Status LED)
Operating Temp: -10℃ to 60℃ (14°F to 140°F)
Storage Temp: -20℃ to 70℃ (-4°F to 158°F)
Humidity: 90% non-condensing
Sealing: IP67 certified
Drop Spec: 1.2m (4 ft.) drops per MIL-STD-810H
Electrostatic Discharge (ESD): +/-8kVdc air discharge, +/-4kVdc direct discharge

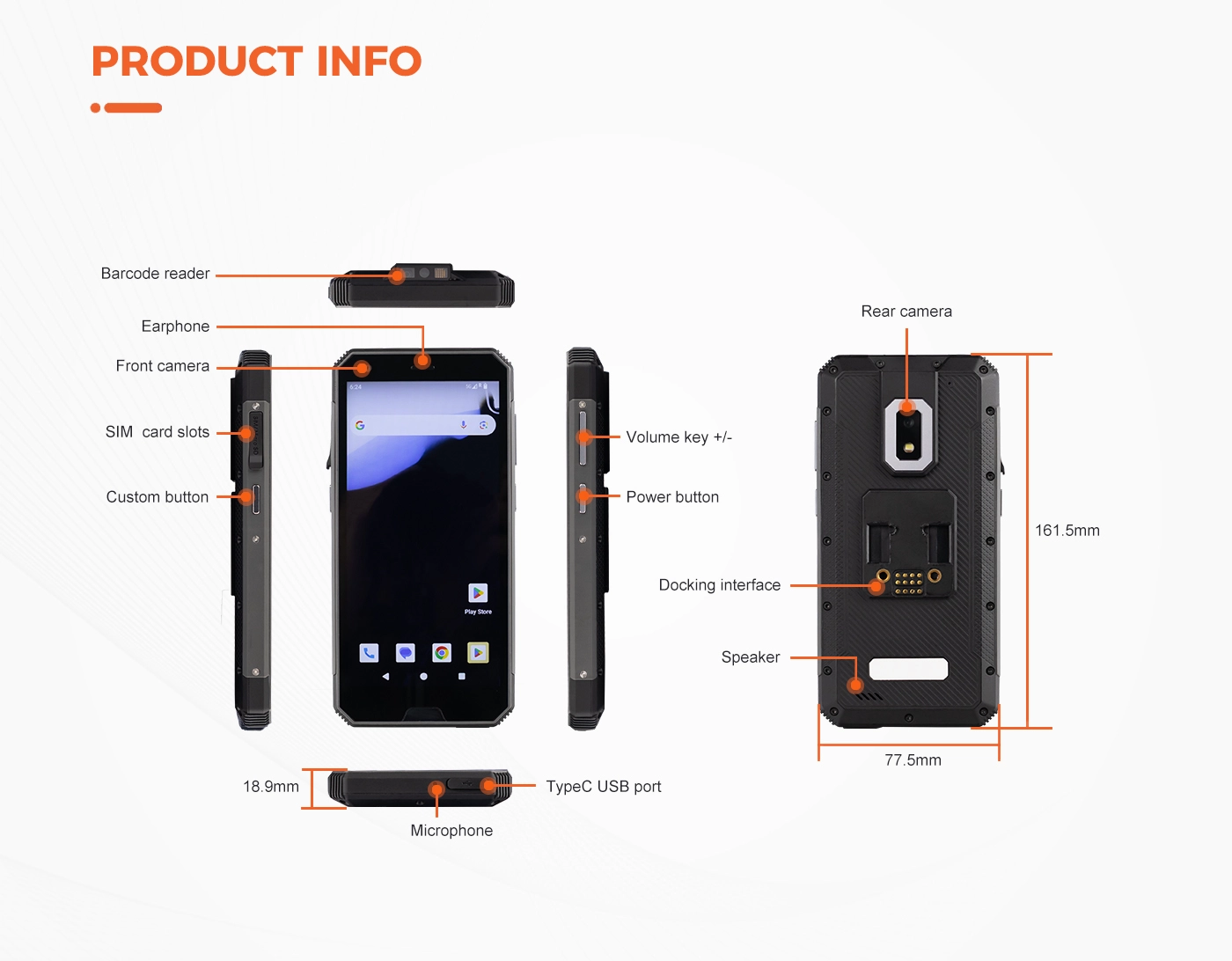

Dimensions: 161.5mm L x 77.5mm W x 18.9mm D
Weight: 265g
Software
Operating System: Android 14 / Android 16 with GMS or without GMS
MDM Server Functions: Remote control server (Supports Boot Animation, Install APK, Add APN, Default Setting, Customized Button, Kiosk Mode)
Android applications: TBD
Navigation software: TBD

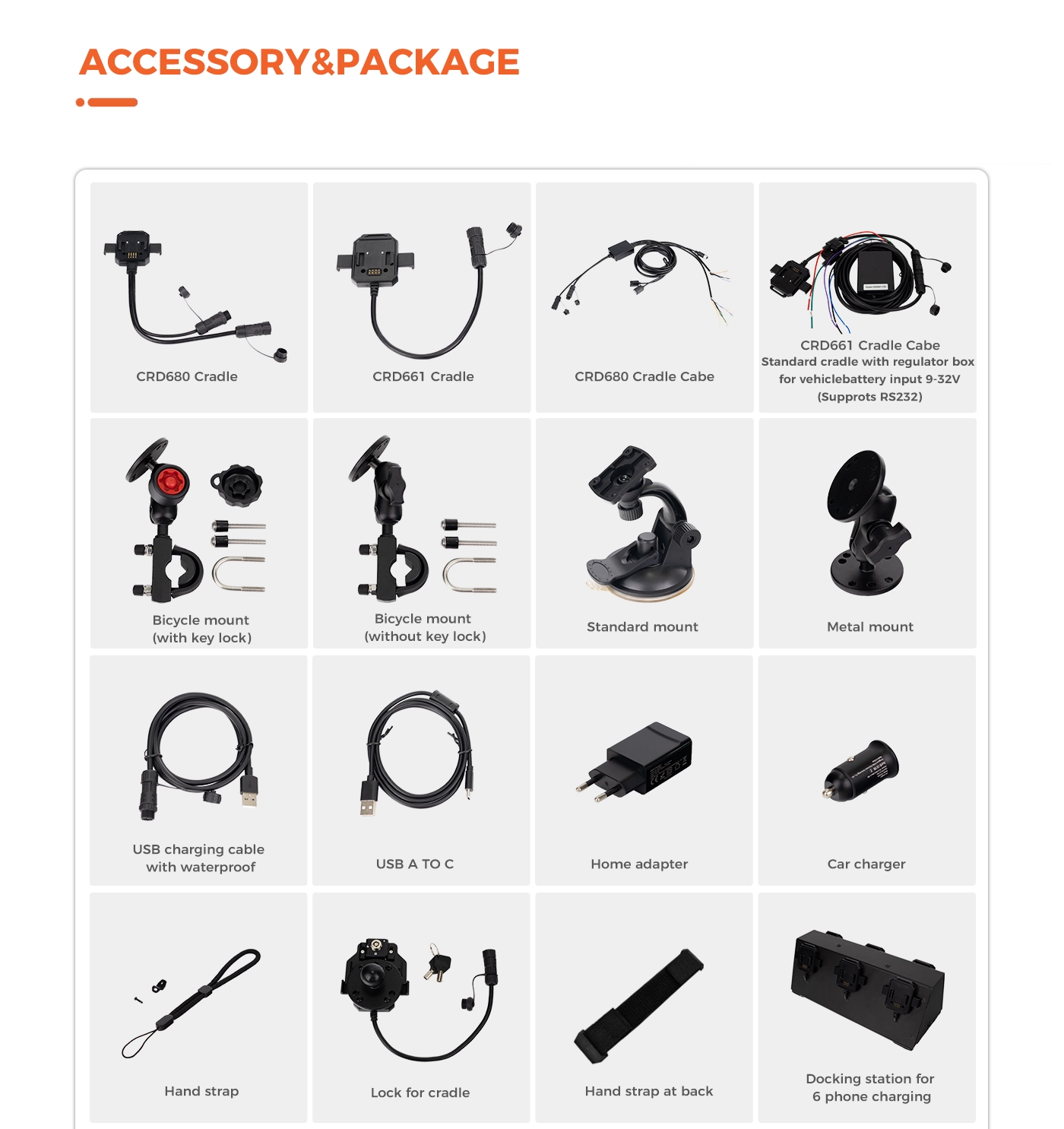

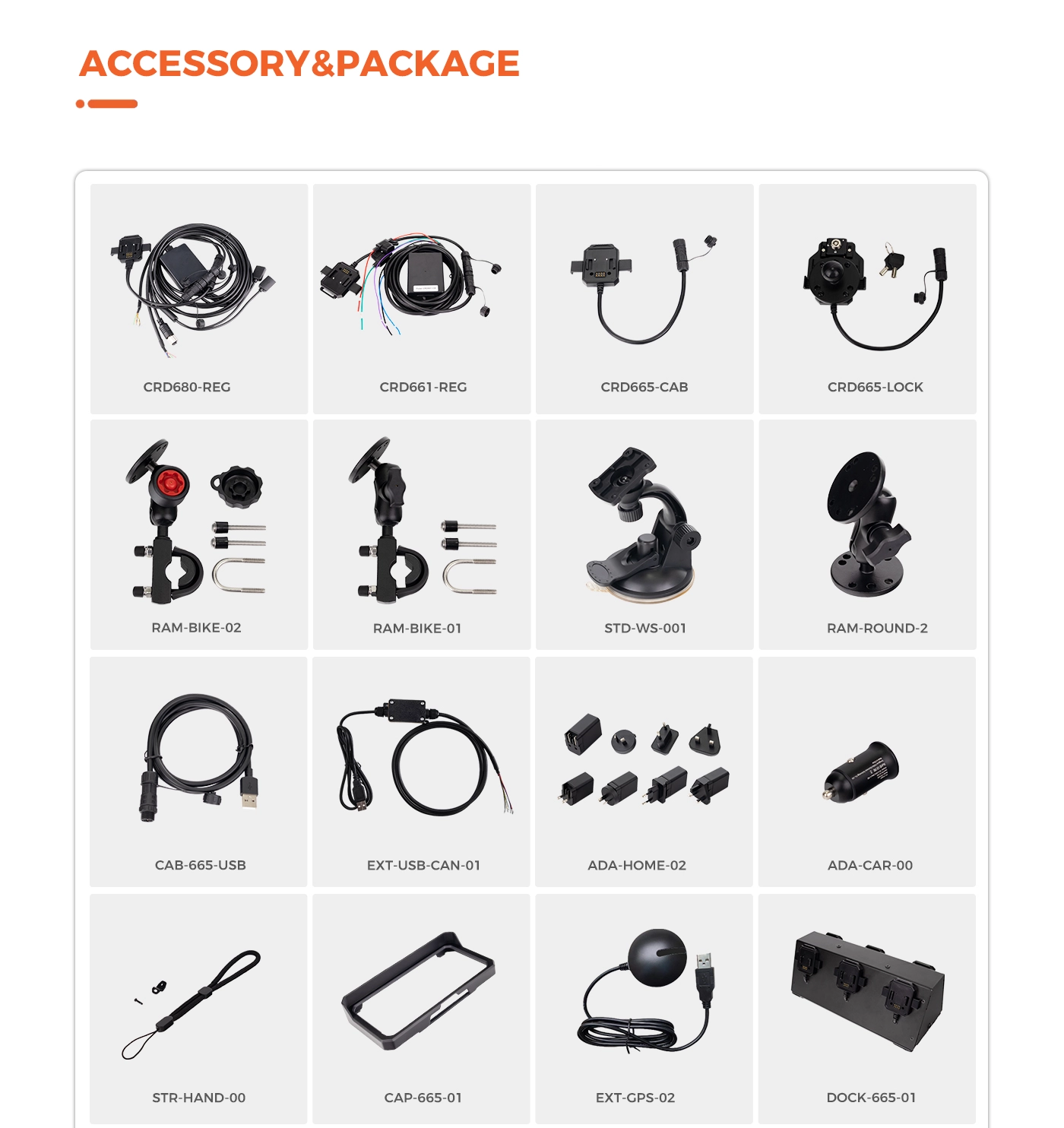

Packaging Detail

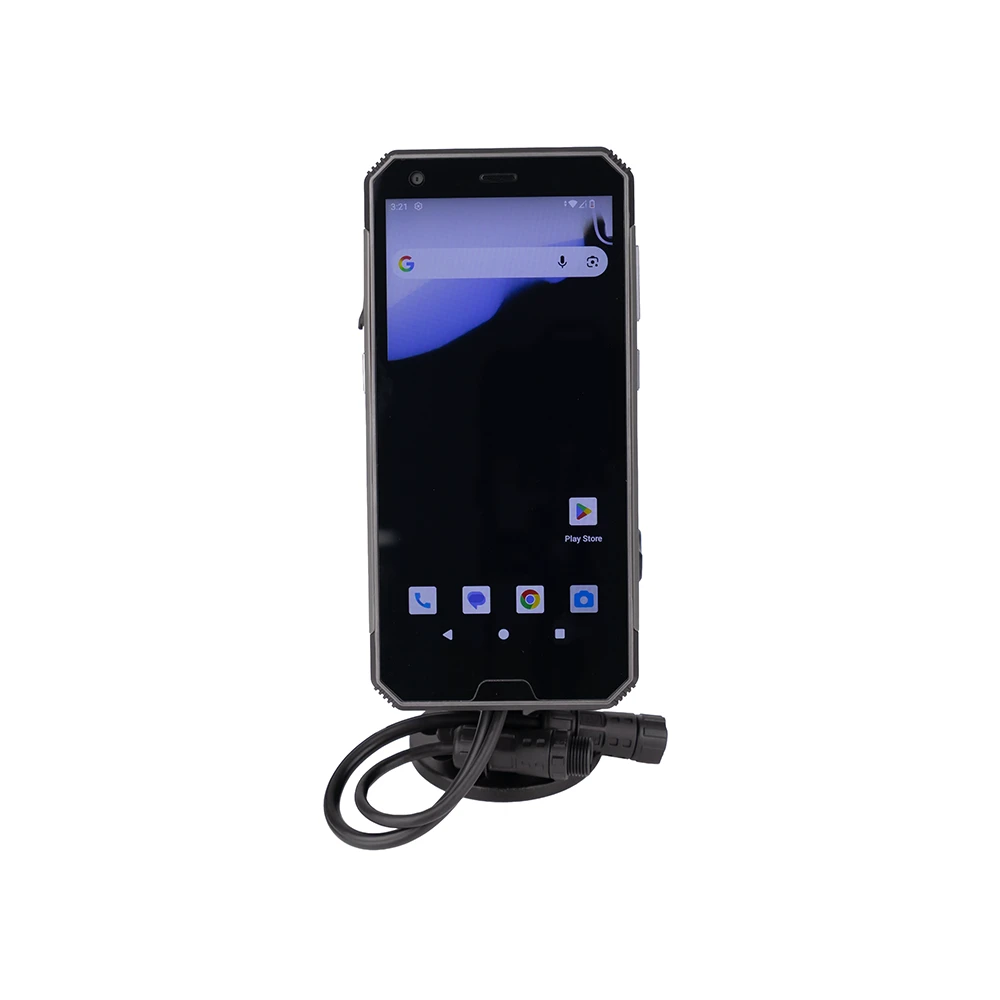

1pc main unit and 1pc cradle (Vehicle docking station or Motorcycle docking station option)
1pc RAM Mount kit
1pc Type-C cable
1pc Car charger
1pc Screw kit
1pc NFC test card
Cellular Module
Radio Frequency:
EUR:
2G: 850/900/1800/1900MHz
3G: B1/2/4/5/6/8/19
4G: B1/2/3/5/7/8/20/28AB/38/39/40/41(194MHz)
5G: NR: N1/3/5/7/8/20/28/38/41/77/78
NAR:
2G: 850/900/1800/1900MHz
3G: B1/2/4/5
4G: B1/2/3/4/5/12/13/17/18/19/25/26/28/30/38/41/66/71
5G: NR: N2/5/25/41/48/66/71/77/78
GNSS: GPS, GLONASS, GALILEO (Dual-band L1+L5)
Memory
Storage (ROM): 128GB UFS2.2
Memory (RAM): 4GB LPDDR4X

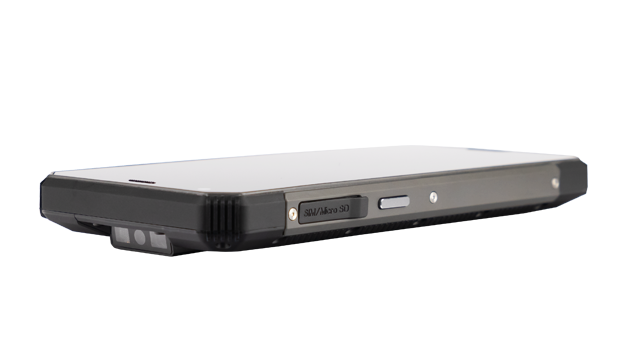

Expansion Slot: User accessible MicroSD (TF) card slot
Interface
USB Connector: 1 x USB-C 2.0 OTG on the device

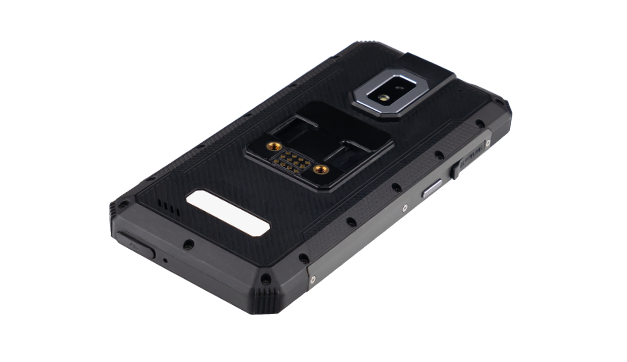

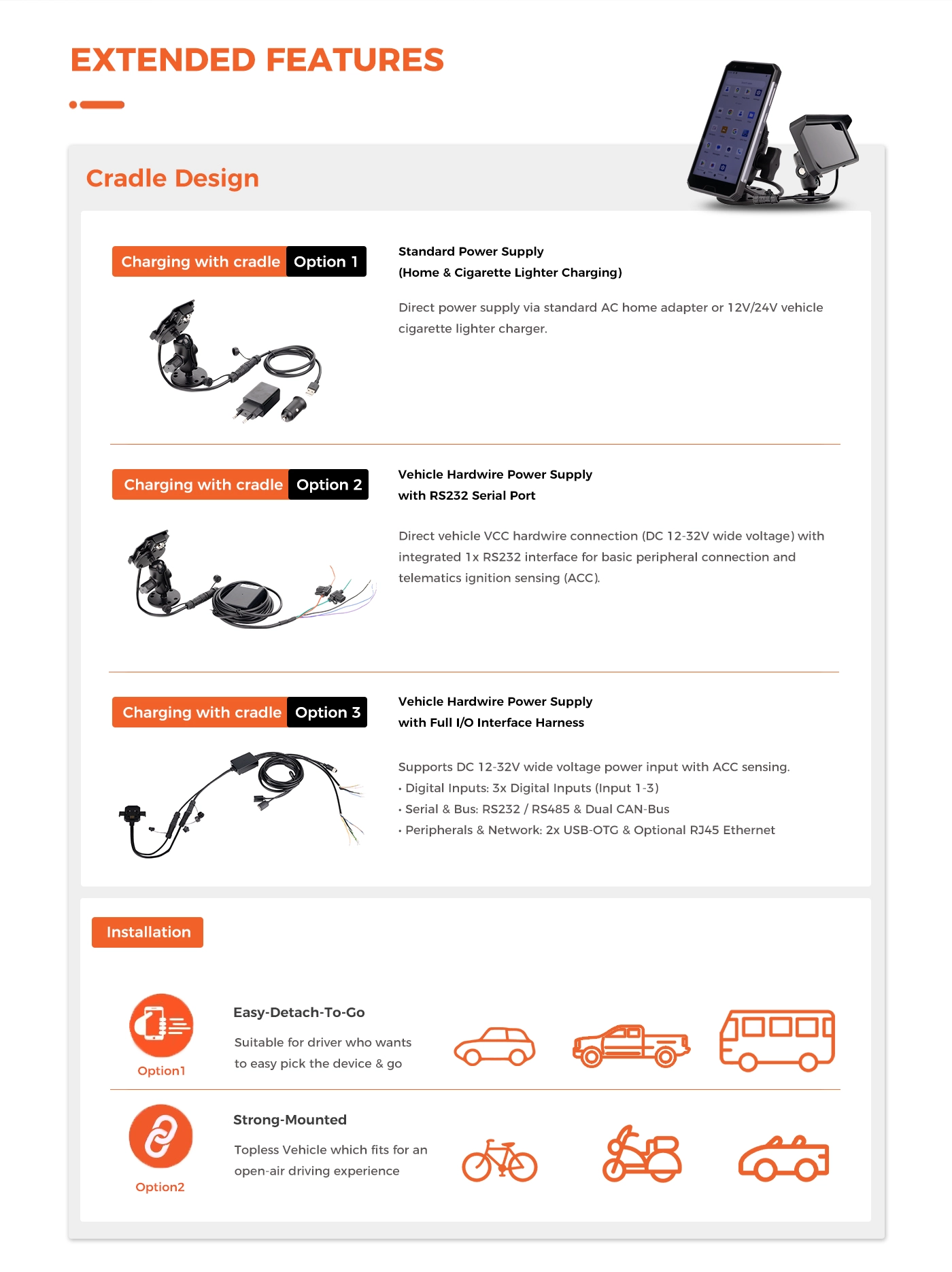

Pogo pins: 12-pin docking connector (Supports RS232 default with docking station)
SIM card slot: 1 x Nano-SIM, 1 x eSIM
Battery
Capacity: Lithium-ion Battery 3.8V 4600mAh
