CRD865-CAN

Full-featured cradle compatible with MDT865/MDT880 rugged tablet

CRD865- CAN cradle with CAB-865-2R232 cable.
It can provides 2 RS232, 1 CAN bus, 4 GPIO and 1 Video input.

Test it yourself

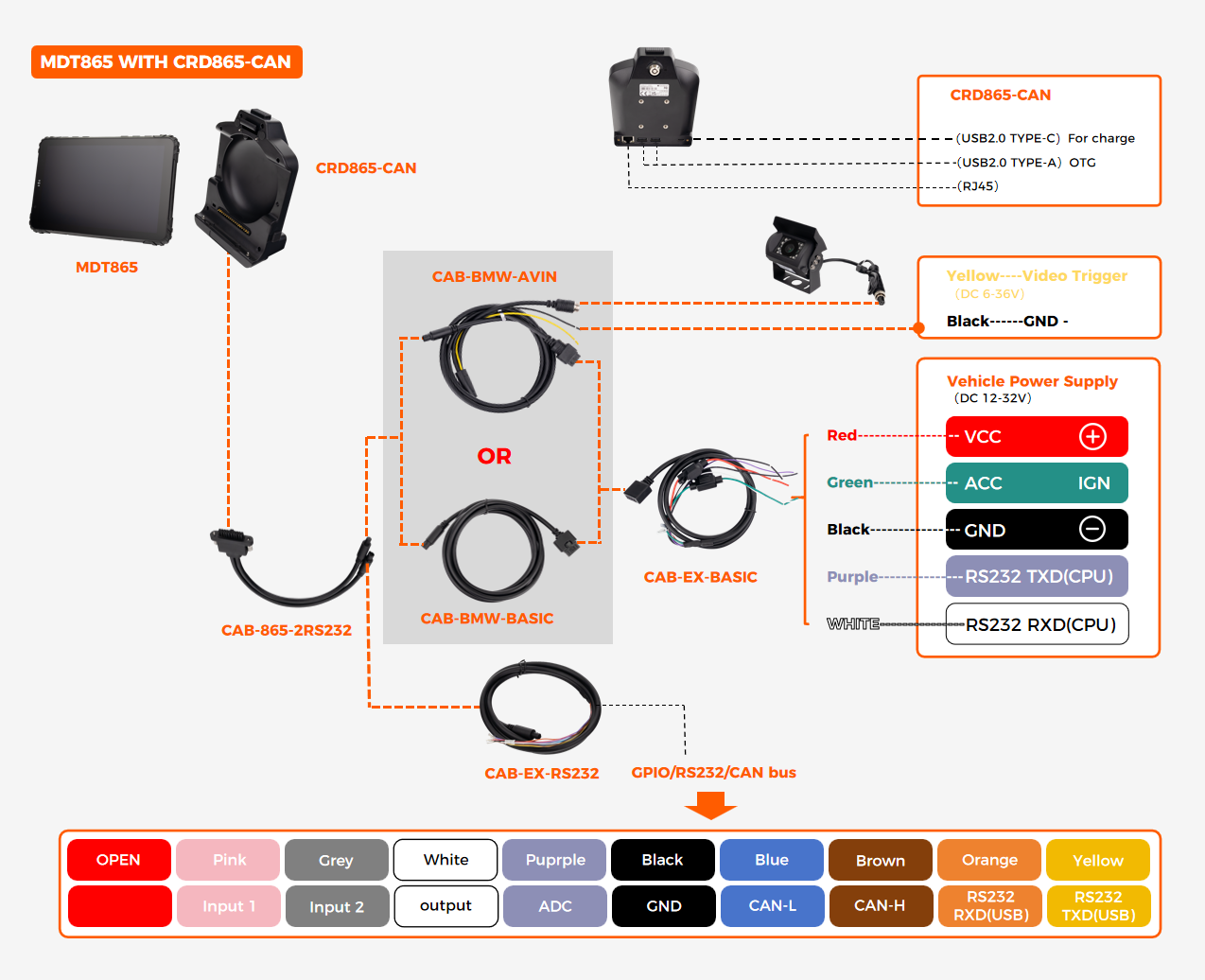

CRD865-CAN cradle pinout and wiring schematic — CAN Bus, ignition, and DC power input for fleet tablet installation

Wiring examples shown — not all configurations. Options may vary by model or production batch. For the latest specs or custom integration support, please contact our engineering team.

COMPATIBLE SOLUTIONS

Compatible Tablet Solutions

Explore hardware modules and integration options for this accessory

CAN Bus Telematics

J1939 / Fleet Data

Hardware-level CAN Bus for engine diagnostics, fuel monitoring, and predictive maintenance.

4-Channel AHD Video

ADAS / DMS / Surveillance

Multi-camera vehicle safety with 4x AHD inputs, trigger support, and real-time video upload.

Barcode / RFID / NFC

Asset Tracking

1D/2D barcode, RFID (UHF/HF/LF), and NFC for warehouse, school bus, and access control.

RS232 Serial Interface

Legacy Device / Scanner / Printer

Industrial RS232 serial port for connecting barcode scanners, printers, sensors, and legacy peripherals.

M12 Ethernet / PoE

Wired Network / Industrial LAN

Locking M12 Ethernet connector with optional PoE for stable wired networking in high-vibration environments.

Vehicle Power System

9-36V / Ignition / Surge Protection

Wide voltage input with ignition sensing, fuse protection, and vehicle-grade power management for 24/7 operation.
