Vehicle Tablet Installation Checklist – 8 Steps for Fleet-Ready Deployment

A poorly installed tablet will fail — not because the hardware is bad, but because the installation cut corners. Whether you're deploying 5 tablets or 500, this checklist covers mounting, power, connectivity, and validation — the things that determine whether your fleet hardware works reliably from day one.

"We deployed 50 tablets across our fleet last quarter. The first 10 went perfectly. By tablet #30, the installers got lazy — skipped the cable strain relief step on a few vehicles. Those exact units developed charging issues within 3 weeks. We learned the hard way: every single installation needs to follow the same checklist."
— Fleet deployment manager, logistics company

Step 1: Choose the Right Mounting Location

The mounting location determines everything else — driver visibility, cable routing, accessibility, and long-term stability.

• Mount within the driver's line of sight but without obstructing the windshield — typically dashboard-level, slightly angled toward the driver

• Avoid mounting directly above air vents — constant hot/cold cycling stresses electronics and loosens adhesive mounts

• Ensure there's clearance for the tablet to dock and undock without hitting the steering wheel, gear shift, or other controls

• For forklifts: overhead mounting on the ROPS cage is often preferred — use a RAM-compatible bracket rated for the vehicle's vibration profile

• Test the location with the actual tablet and mount before drilling any holes — have the driver sit in the seat and confirm visibility and reach

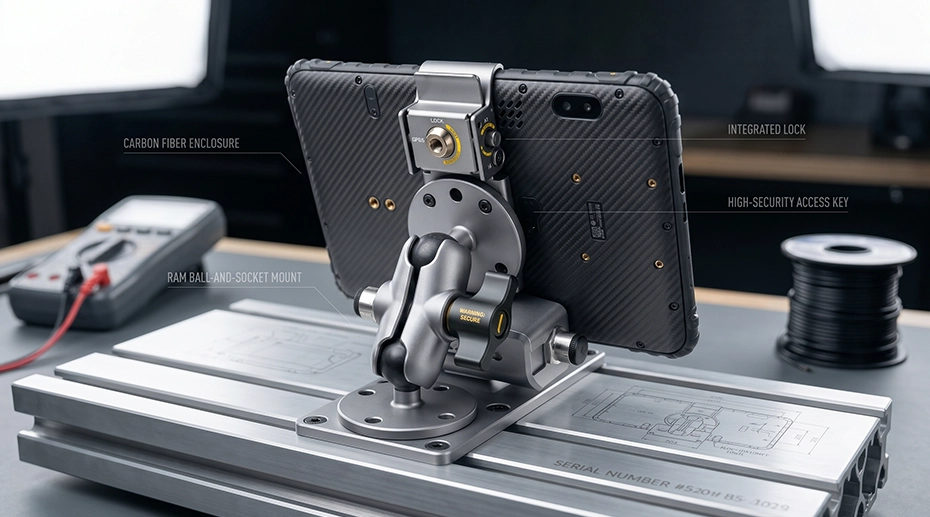

Step 2: Secure the Mounting Bracket Properly

A loose bracket means a loose tablet — and a loose tablet will eventually fall, disconnect, or rattle itself to death.

• Use the hardware provided with the mount — don't substitute screws, bolts, or washers

• Torque all fasteners to manufacturer specifications — under-torquing leads to vibration loosening; over-torquing can strip threads or crack mounting surfaces

• Apply thread-locking compound (Loctite Blue or equivalent) on all metal-to-metal fasteners in high-vibration environments

• For adhesive mounts: clean the surface thoroughly with isopropyl alcohol, apply even pressure during curing, and wait the full cure time before attaching the tablet

• After installation, grab the bracket and try to shake it — there should be zero movement. If it moves at all, re-torque or reinforce before proceeding.

Step 3: Route and Protect All Cables

Cable failure is the #1 cause of post-installation problems. A cable that's pinched, stretched, or rubbing against a metal edge will fail — usually at the worst possible time.

• Route all cables away from moving parts — steering columns, pedals, seat adjustment mechanisms, and door hinges

• Use cable ties or clips every 15-20 cm to prevent sagging and vibration wear

• Anywhere a cable passes through a metal panel or bulkhead: use a rubber grommet. No exceptions — a cut cable from a sharp metal edge is not covered by warranty.

• Leave a small service loop (5-8 cm of slack) at the tablet connection point — this absorbs vibration and allows the tablet to be undocked without straining the connector

• Label both ends of every cable. When troubleshooting 6 months later, you'll thank yourself.

Step 4: Connect Vehicle Power Safely

This is the step where shortcuts cause real damage — to the tablet, to the vehicle, or to both. In professional fleet management operations, power stability is paramount. To ensure safe deployment and prevent voltage spikes, always refer to the official System Topology & Wiring Diagram (Figure 1) below when running your cables.

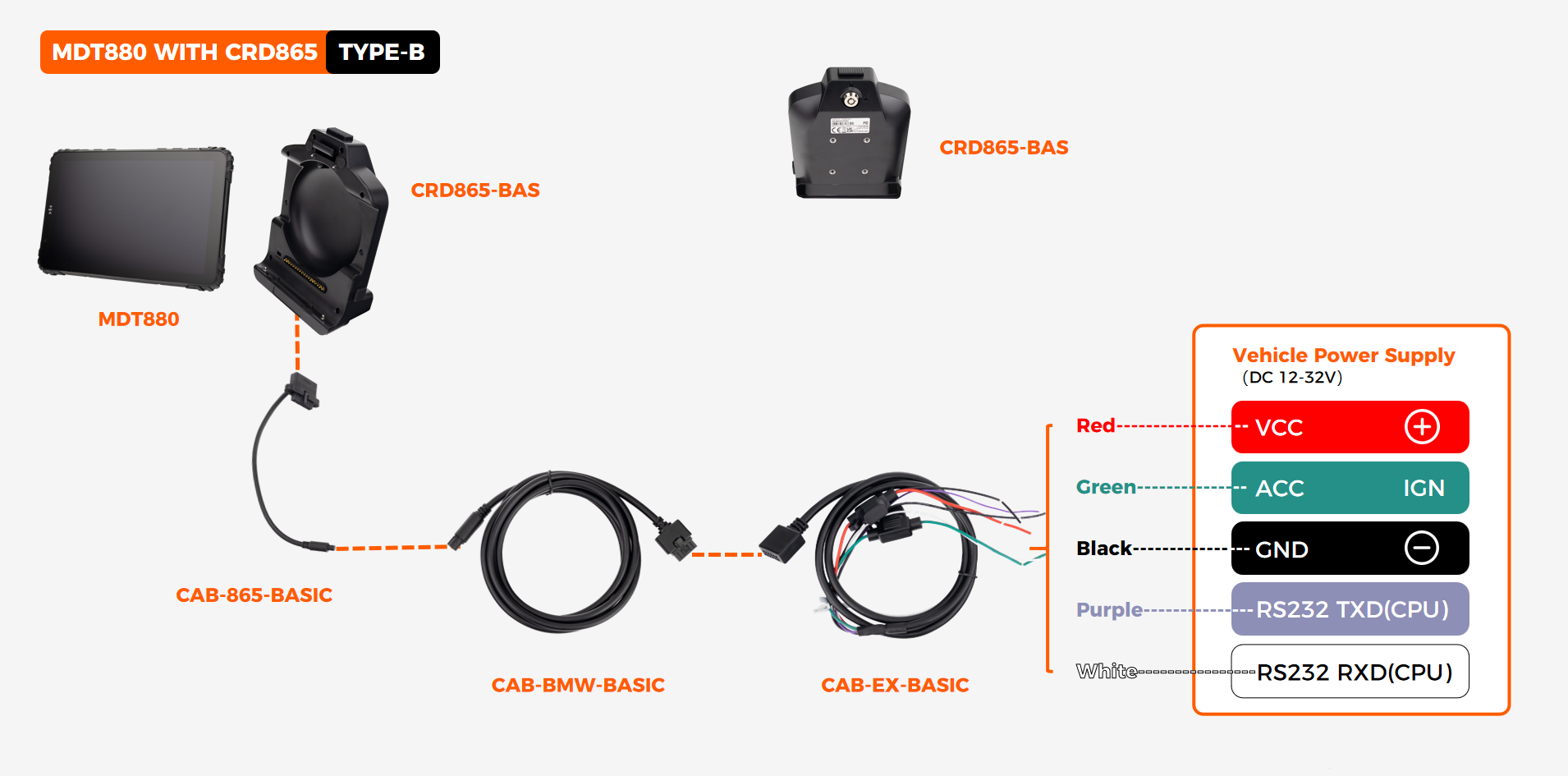

Figure 1: Complete 3-wire installation layout using CAB-865-BASIC, CAB-BMW-BASIC, and CAB-EX-BASIC cabling system.

Mandatory Wiring Requirements

As detailed in the technical diagram above, a standard enterprise deployment requires strict adherence to the following 3-wire power configuration:

• VCC (Red Wire – Constant Power): Connect directly to a fused circuit or install an in-line fuse (typically 5A for most vehicle tablets) to provide continuous power for the device internal RTC and telemetry functions.

• ACC / IGN (Green Wire – Ignition Sense): Connect the ignition sense wire to a circuit that is hot only when the engine is running. This enables the tablet to trigger automatic power on/off sequences with the vehicle, preventing battery drain during long standbys.

• GND (Black Wire – Ground): Connect the ground wire directly to a clean, unpainted metal surface on the vehicle chassis — do not splice into an existing ground wire shared with other high-load electronics to avoid ground loops.

• Peripheral Integration (Purple/White Wires): For advanced telematics projects, the integrated RS232 TXD/RXD (CPU) lines are broken out from the same harness, allowing secure data communication with external sensors or ELD peripherals without running secondary cables.

Core Installation Rules

1. Never Use Electrical Tape: Use the professional vehicle power harness designed specifically for the tablet. Don't splice into existing wiring with electrical tape — this creates unreliable connections over time due to vehicle vibration and voids the hardware warranty.

2. The Multimeter Test: Before clicking the tablet into the docking station, always test the terminal connector with a multimeter. Verify stable 12V/24V at the harness connector, check for correct polarity, and ensure the ignition sense wire (Green) accurately switches on/off with the key.

Step 5: Position External Antennas for Best Signal

If your deployment uses external GPS or cellular antennas, placement makes the difference between reliable tracking and constant signal dropouts.

• GPS antennas need a clear view of the sky — mount on the dashboard (inside, near windshield) or on the vehicle roof (external, magnetic or screw-mount)

• Keep GPS antennas away from metal obstructions, roof racks, and other antennas — at least 30 cm separation from cellular/WiFi antennas

• Cellular antennas work best when mounted high on the vehicle — roof-mount provides the best coverage in rural areas

• Test GPS and cellular signal strength with the tablet powered on before finalizing cable routing

Step 6: Dock the Tablet and Verify the Connection

The physical installation is done — now verify that everything works before moving on to software configuration.

• Dock the tablet — listen for an audible click or confirm the locking mechanism is fully engaged

• Verify the tablet shows "charging" or "connected to dock" on screen

• Gently pull on the tablet — it should not move or disconnect

• Test undocking and re-docking 3 times — the mechanism should operate smoothly each time

• Start the vehicle engine — confirm the tablet powers on automatically (ignition sense working)

Step 7: Configure Software and Test Connectivity

Hardware is working — now make sure the software and network connections are solid.

• Confirm the tablet is enrolled in your MDM platform and receiving the correct configuration profile

• Verify all required fleet apps are installed and launch correctly — ELD, navigation, dispatch, inspection apps

• Test GPS lock: open a mapping app and confirm the tablet shows an accurate location within 30 seconds

• Test cellular data: load a web page or ping your fleet server — confirm connectivity in the actual vehicle location (not just in the workshop)

• If using CAN Bus integration: verify engine data (RPM, fuel, fault codes) is being captured by the fleet software

Step 8: Document and Log the Installation

Documentation is the difference between a professional deployment and an amateur one. When something goes wrong 6 months later, you need to know exactly what was installed, where, and how.

• Record the vehicle ID, tablet serial number, and installation date in your asset management system

• Take a photo of the completed installation — dashboard view showing tablet placement and cable routing

• Note any deviations from the standard installation procedure — non-standard mounting locations, custom cable lengths, special brackets used

• Log the firmware version, OS version, and installed app versions at the time of deployment

• File the installation record — this becomes your baseline for troubleshooting, warranty claims, and future upgrade planning

Quick Reference: Pre-Deployment Validation Checklist
