MDT1080
10-inch Rugged Tablet with 5G | Vehicle Mount Computer & Vehicle Mount Terminal

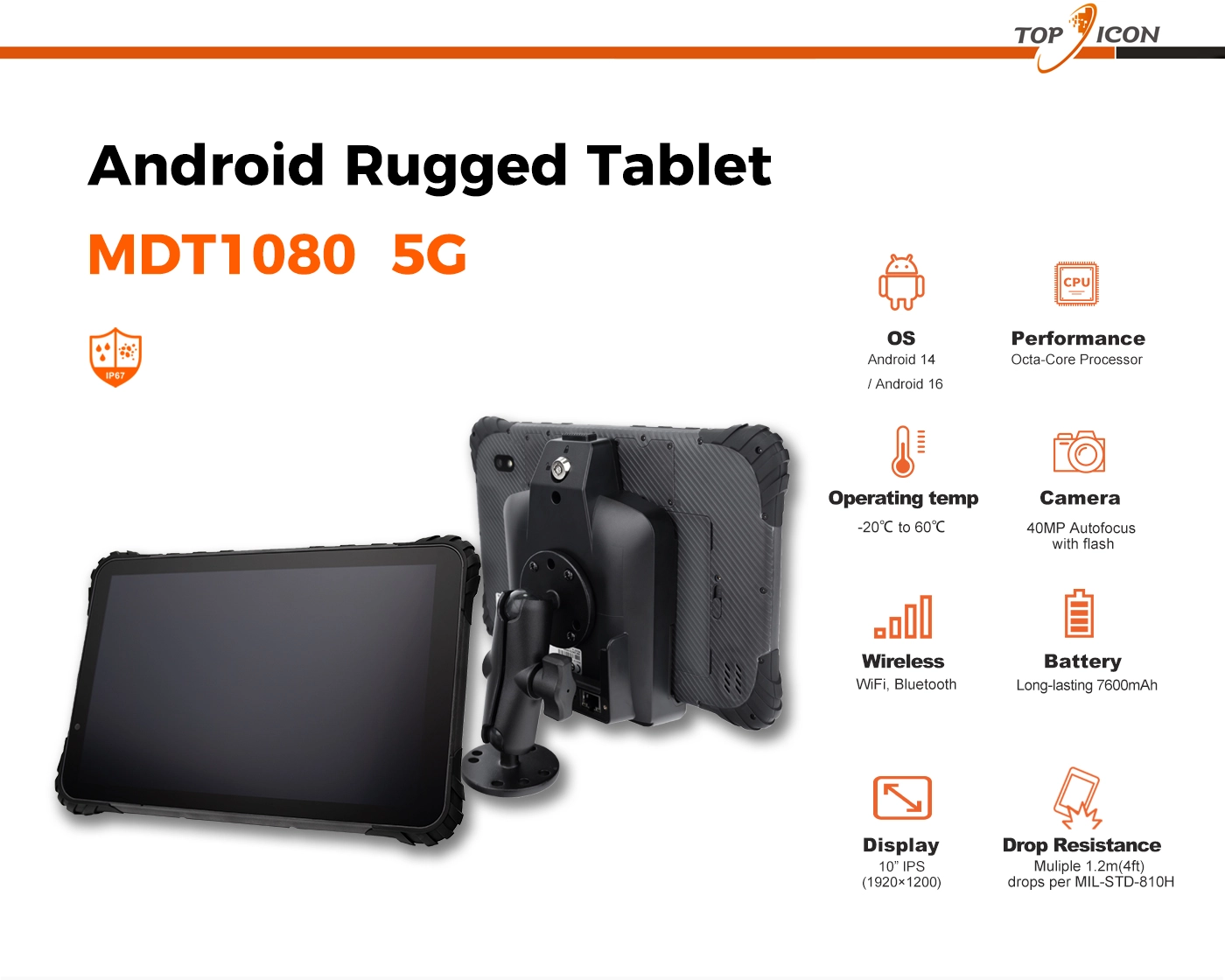

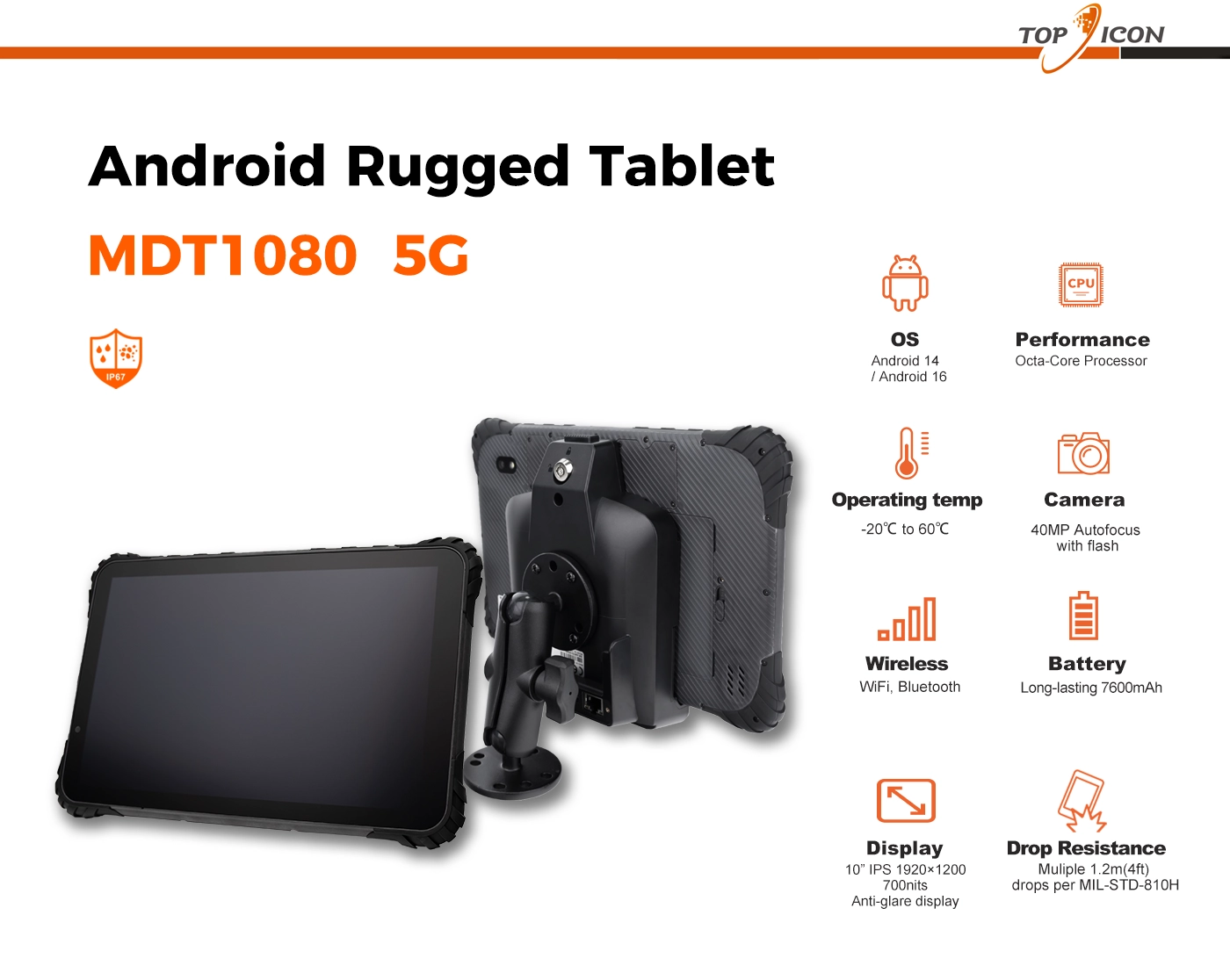

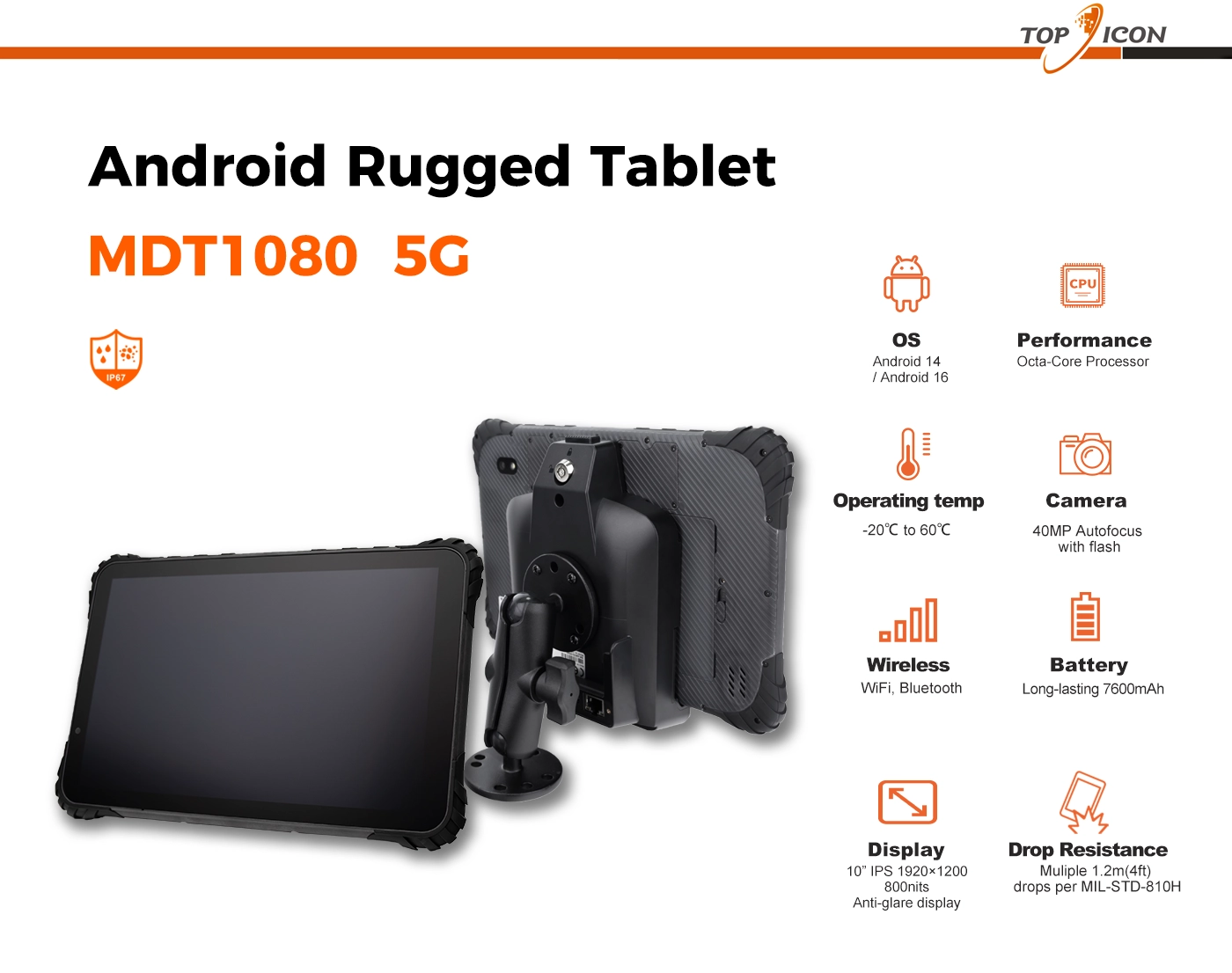

The Topicon MDT1080 is a 10-inch 5G rugged Android vehicle terminal and fleet management tablet engineered for heavy-duty trucks. It serves as a reliable in-vehicle computing hub for ELD compliance, navigation, dispatching, and real-time fleet telematics.
- 10" 800-nit anti-glare display
- IP67 dustproof and waterproof
- MIL-STD-810H military certified
- 9–36V DC power with ignition sensing
- Dual CAN Bus (J1939-compatible)
- Vehicle & desktop charging cradles
- High-speed 5G / 4G LTE, Wi-Fi & BT
- Optional RFID & 1D/2D barcode scanner
- Multi-port I/O expansion
- Android Enterprise with MDM & OTA
- Custom branding & pre-loaded apps
- Tailored hardware I/O customization

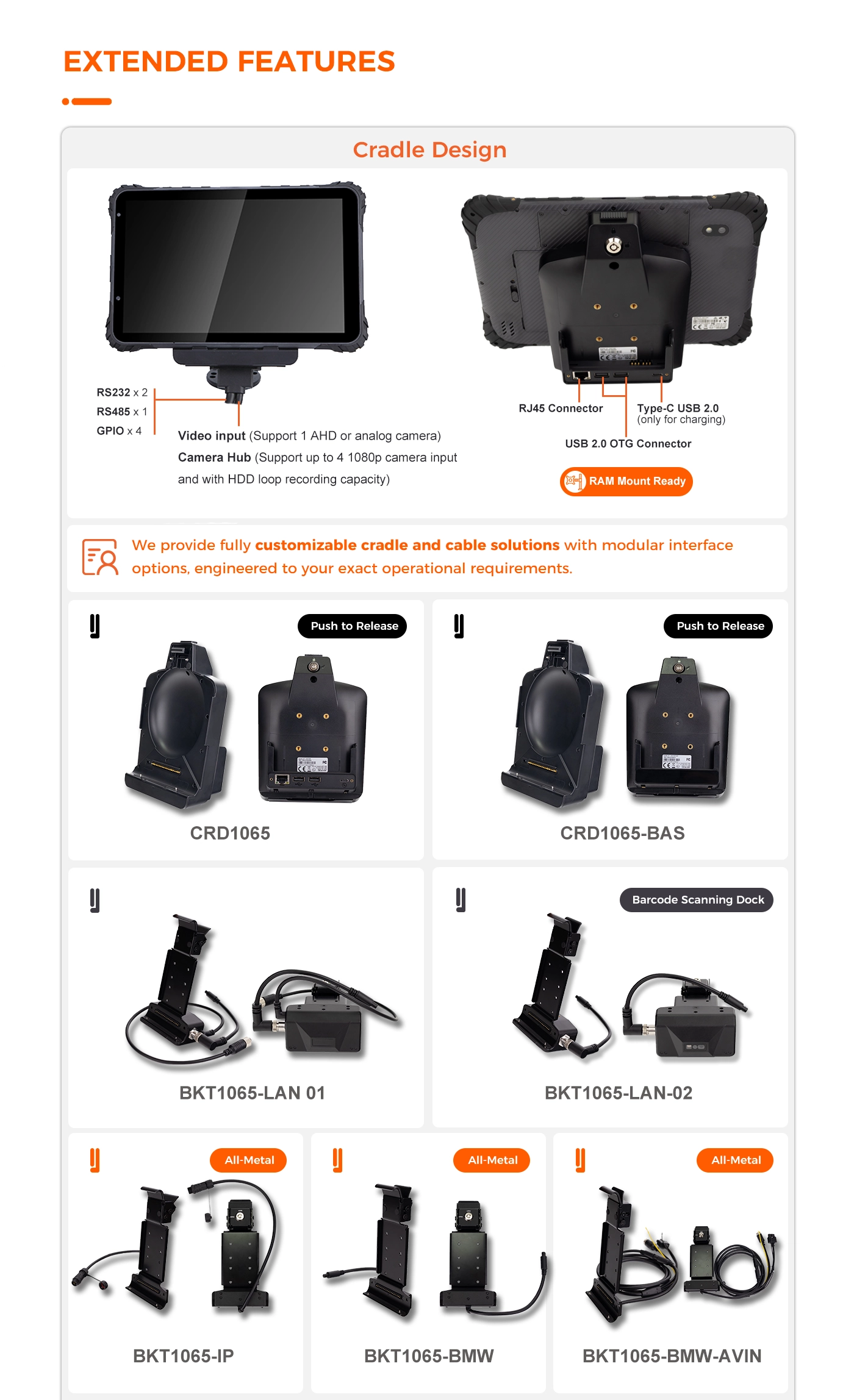

Docking Stations for MDT1080
Select the dock tier that matches your deployment environment. All docks mount via RAM mount, enabling hand-latch tablet swap without tools.
Quick-Release Dock
One-hand dock/undock in 1 second. Pogo-pin contacts, 10,000+ cycles. Ideal for urban logistics, light trucks, and field service.
→ View MDT1080 Quick-Release Dock Specs
Fixed Heavy-Duty Metal Dock
IP67 Option
Rugged permanent mounting | Optional IP67 waterproof connector | Built for mining, agriculture & heavy equipment.
→ View BKT1080 All-Metal Dock Specs
1D/2D Barcode Scanner Dock
Wall Mount Option
All-metal extended dock with built-in barcode imager. Hand-screw latch. Ideal for forklift inventory, waste management, and yard logistics.
→ View BKT1080 Scanner Dock SpecsOptional active vehicle docks with Pogo-pin, RS232, and CAN Bus available.
See [docking station configuration matrix] or [Contact us for docking options & custom solutions →]
Hardware-level CAN Bus for engine diagnostics, fuel monitoring, and predictive maintenance.
Multi-camera vehicle safety with 4x AHD inputs, trigger support, and real-time video upload.
Dual RS232, RS485, and GPIO for industrial automation, diagnostic tools, and legacy equipment.
Threaded M12 Ethernet connector for buses, trains, industrial HMI, and fixed-mount applications.
1D/2D barcode, RFID (UHF/HF/LF), and NFC for warehouse, school bus, and access control.
Simple, reliable vehicle power for information displays, driver terminals, and passenger systems.
Frequently Asked Questions
When will the MDT1080 be available?
The MDT1080 is currently under development with anticipated availability in Q3 2026. Final specifications are subject to verification. Contact our sales team for development timeline updates and early evaluation opportunities.
What's the difference between MDT1080 and MDT1065?

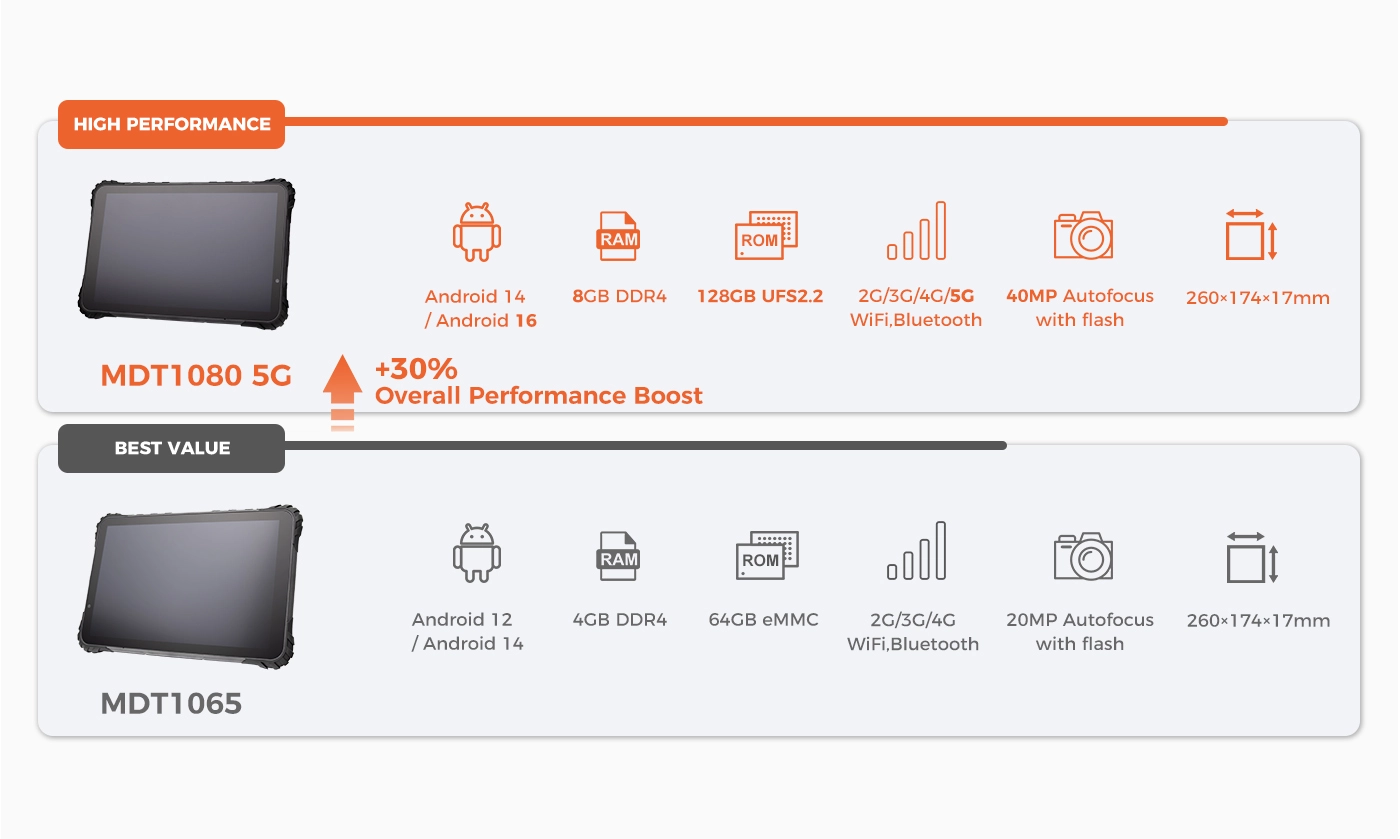

The MDT1080 is the 5G upgrade to the MDT1065 platform. It adds native 5G connectivity for real-time video upload, OTA firmware deployment, and low-latency telematics — while retaining the same 10" 800-nit display, dual CAN Bus interface, and IP67 rugged design. Both are part of TOPICON's vehicle mount computers line, engineered for permanent fleet installations. The MDT1065 remains available as a 4G option for deployments where 5G is not required. For a deeper technical look at the hardware architecture behind reliable navigation, see our Navigation Tablet hardware architecture guide.
Is the MDT1080 backward compatible with existing MDT1065 accessories?
Yes. The MDT1080 is designed to be compatible with existing MDT1065 vehicle docks, mounting brackets, and power cables. For a complete docking matrix across all TOPICON models, refer to the docking station configuration matrix →. Final accessory compatibility will be confirmed upon release.
What 5G bands does the MDT1080 support?
Final 5G band support is subject to verification during the development process. The MDT1080 will support major sub-6GHz 5G bands for North American and European deployments. As a vehicle mount tablet designed for fleet management tablets, connectivity performance is a core design priority. Contact our team for the latest radio specifications. For marine navigation deployments, explore our Navionics Tablet guide.
What ruggedness and environmental protection does the MDT1080 offer?
The MDT1080 is IP67 sealed against dust and water ingress, and withstands 1.2m (4 ft.) drops per MIL-STD-810H. It operates from -20°C to 60°C and stores safely from -20°C to 70°C, with 90% non-condensing humidity tolerance. ESD protection includes ±8kV air discharge, ±4kV direct discharge, and ±4kV indirect discharge — built for continuous in-vehicle terminal deployment.
What display and touch capabilities does the MDT1080 provide?
The MDT1080 features a 10-inch IPS panel at 1920×1200 resolution with 800 nits brightness, anti-glare coating, and LED backlight. The capacitive multi-touch panel supports both Glove Mode and Wet Mode, ensuring reliable input in rain, dust, or with work gloves — essential for field service, construction, and outdoor operations. Its 10-inch form factor makes it a strong fit for truck tablet deployments where dispatch, navigation, and telematics dashboards run on a single screen.
Can the MDT1080 support multi-camera video recording?
Yes. The MDT1080 supports one channel of AHD 720P/1080P or analog camera input via the standard cradle. With the optional Camera Hub, it supports up to four channels of AHD 720P/1080P and analog camera input with HDD loop recording — suitable for ADAS, DMS, and multi-camera fleet safety systems. For related hardware, see our 4-channel AHD video tablet solutions.
What are the physical dimensions and weight of the MDT1080?

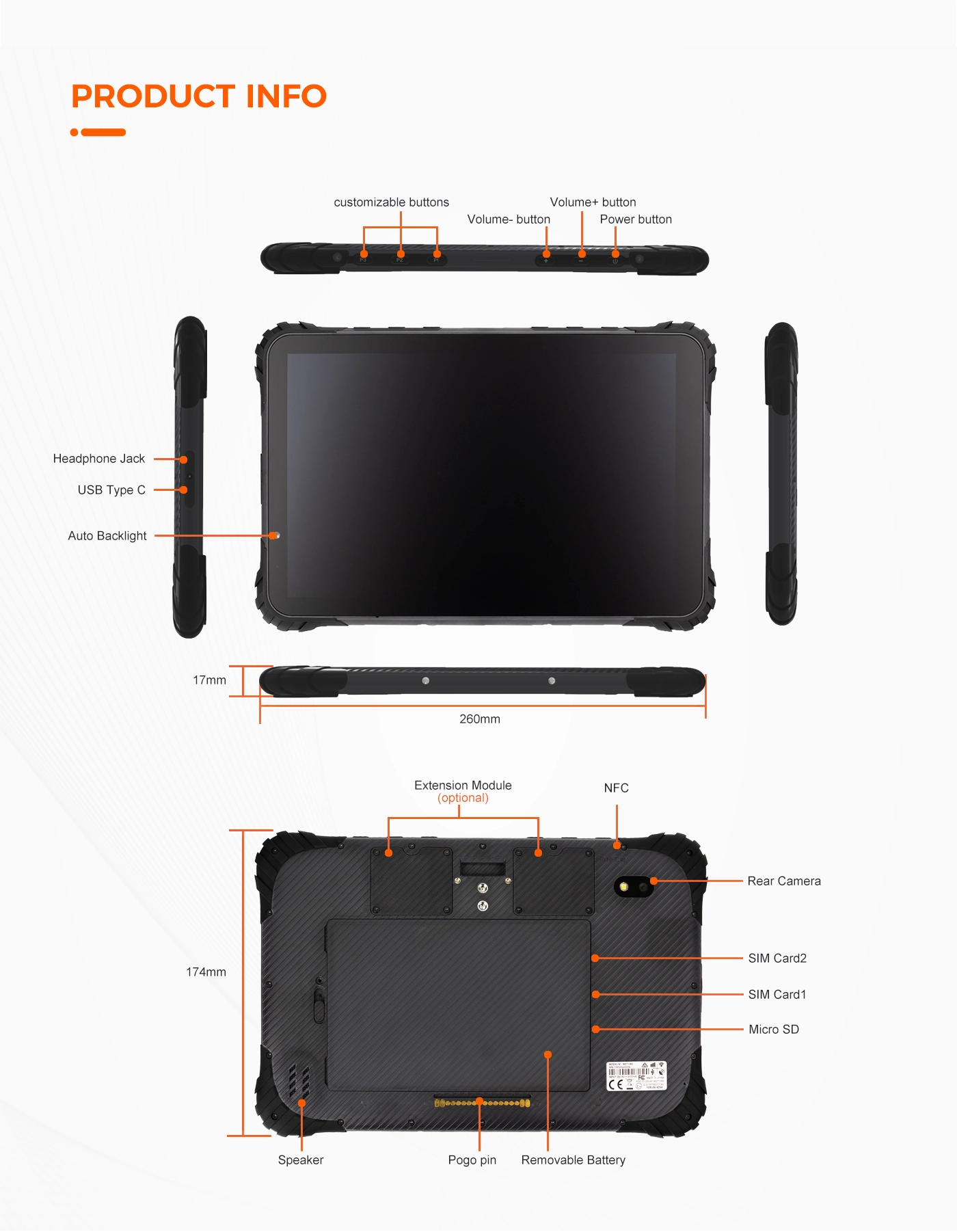

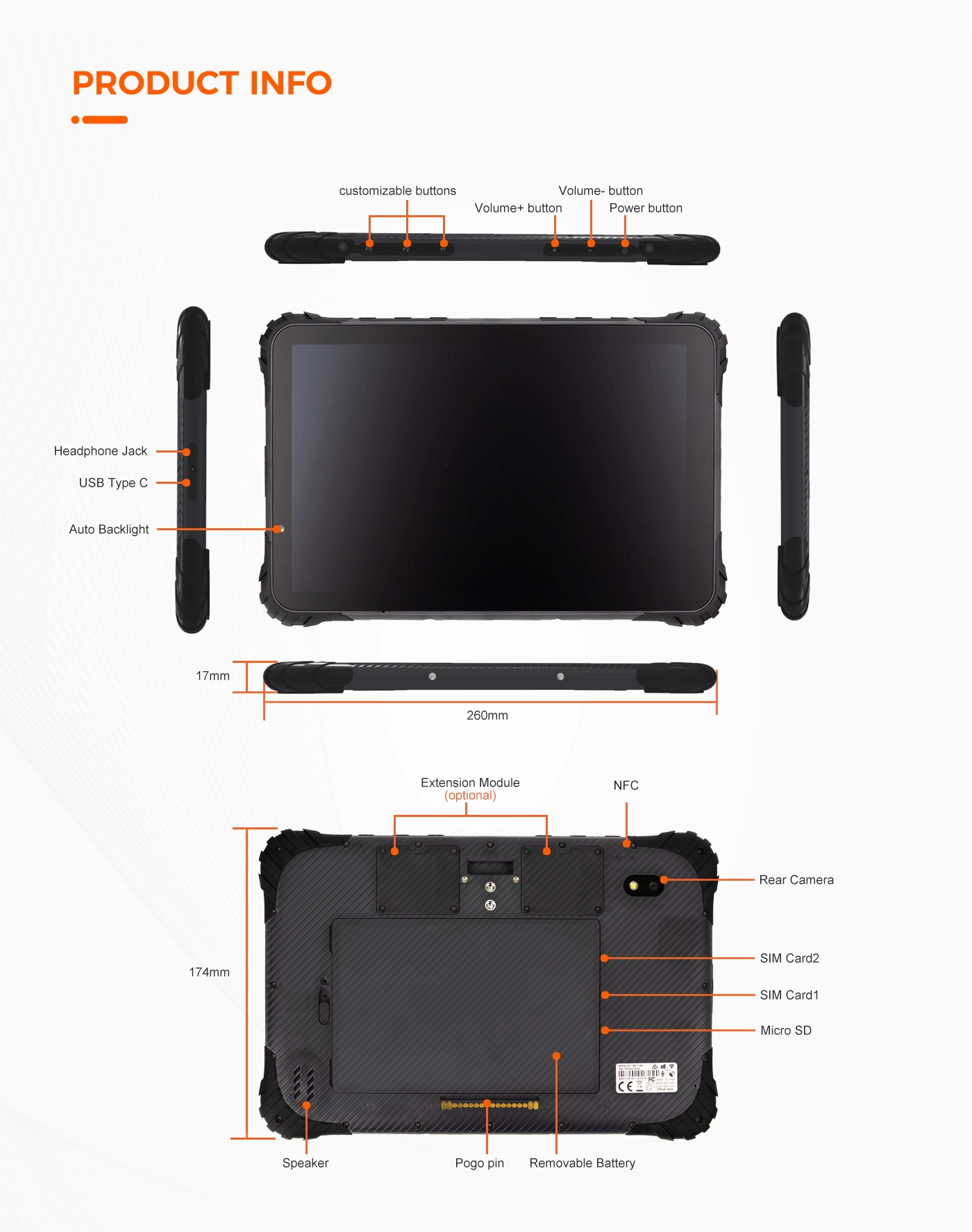

The MDT1080 measures 260mm (L) × 174mm (W) × 17mm (D) and weighs approximately 930g. The 10-inch form factor provides a balance between screen real estate for dispatch, navigation, and telematics dashboards, while remaining mountable in standard vehicle cradles. It sits alongside the broader rugged tablet lineup as the large-screen 5G option.
What operating system and firmware options are available?
The MDT1080 ships with Android 14 or Android 16, available in nGMS (Google applications without CTS certification) or Non-GMS (no Google services) builds. The Non-GMS build is specified for government, defence, and restricted-network deployments. For more on firmware selection, see our OEM firmware consultation, or browse the full product catalog for related platforms.
How is the MDT1080 remotely managed?
The MDT1080 supports TOPICON's MDM Remote Control Server, which provides boot animation customization, APK installation, APN configuration, default setting enforcement, customized button mapping, and kiosk mode. For full platform details, see the TOPICON MDM platform.
Can I request a prototype or evaluation unit?
Yes. We offer early evaluation units for qualified OEM partners and system integrators. Contact our sales team to discuss your project requirements and request prototype availability. Request prototype →
