1. Three Accuracy Levels, Three Hardware Profiles

GNSS accuracy is not a single specification. It is a range that depends on the receiver architecture, the correction service, and the antenna configuration. Three distinct accuracy tiers apply to different fleet deployments:

The hardware selection process starts by identifying which tier the deployment requires. A fleet running route navigation and delivery tracking rarely needs RTK capability. A precision agriculture operation cannot function without it. Specifying more accuracy than the application requires adds cost without operational benefit. Specifying less accuracy than required causes the system to fail in the field.

2. Dual-Band L1+L5 and Multipath Rejection

GPS and the other GNSS constellations broadcast on multiple frequencies. GPS uses L1 at 1575.42 MHz and L5 at 1176.45 MHz. Consumer receivers process only L1. Industrial-grade receivers process both.

The difference matters in environments where satellite signals reflect. In an urban canyon formed by two rows of buildings, the receiver sees the direct signal from each satellite plus at least one reflection off a building surface. Both arrive at the antenna. An L1-only receiver cannot determine which signal is the true one and averages them, producing position drift of 20 to 50 metres. The vehicle appears on the tracking dashboard in a location it has never visited — often on the wrong side of a street or the wrong intersection entirely.

The L5 signal arrives at the receiver with a different phase relationship than L1. When both direct and reflected versions of a satellite signal reach a dual-band receiver, the phase difference on L5 differs from the phase difference on L1 — because the reflection path length is proportional to frequency. The receiver uses this difference to identify the reflected component and discard it before computing position. The result is metre-level accuracy in environments where single-band receivers drift by tens of metres.

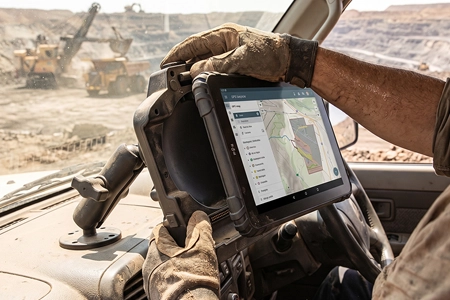

For fleet deployments operating in urban environments — last-mile delivery, municipal services, ride-hail and taxi fleets — dual-band capability is not an upgrade. It is the difference between tracking data that reflects the vehicle's actual location and data that does not. The fleet GPS tracking hardware guide covers the failure modes that result from inadequate receiver architecture. For system integrators evaluating the full GNSS architecture — receiver, display readability, and docking interface — the navigation tablet hardware architecture guide covers the three layers together.

3. Multi-Constellation Reception: GPS, GLONASS, Galileo, BeiDou

Four global navigation satellite systems are operational. GPS (United States) and GLONASS (Russia) have been available for decades. Galileo (European Union) reached full operational capability in 2020. BeiDou (China) completed its global constellation in 2020. Together they operate over 100 satellites. Any single constellation operates roughly 30.

A receiver tracking only GPS may see 8 to 12 satellites above the horizon at a given location and time. This is generally sufficient for a position fix in open-sky conditions. But in environments where part of the sky is blocked — tree-lined waterways, deep mining pits, narrow streets between tall buildings — the number of visible GPS satellites can drop below the minimum for a reliable fix. The receiver loses position, or produces a lower-quality fix that shows increasing position error.

A multi-constellation receiver tracking all four systems has access to over 100 satellites. In the same partially blocked environment, it may still see 20 to 30 satellites across the four constellations. The position fix remains continuous. For mining equipment operating inside open pits and agricultural machinery in tree-lined fields, the difference between GPS-only and multi-constellation reception is the difference between intermittent tracking and continuous tracking.

4. External Antennas and USB GPS Receivers

A well-designed receiver is useless if the antenna cannot receive satellite signals. The GNSS signal at 1.5 GHz attenuates significantly through conductive materials. A metal-bodied van, a truck cab with metallic window tinting, an enclosed mining machine cab — each acts as a partial Faraday cage. A device relying on its internal antenna sees little or no signal.

Two external antenna approaches solve this problem, and they are architecturally different.

The vehicle tablet platform with external GNSS options supports both approaches. The MMCX or SMA port is specified at the model level — it is either present on the device or not. The USB GPS receiver is an accessory that connects through the standard USB-A port, which is available on most models in the lineup. This distinction matters for procurement: the MMCX port must be confirmed before ordering, while the USB receiver can be added to existing deployments.

5. RTK and Correction Services

RTK — Real-Time Kinematic — achieves centimetre-level accuracy by processing correction data from a nearby reference station. The reference station occupies a known position. It receives the same satellite signals as the moving receiver, computes the difference between its known position and its computed position, and transmits that difference as a correction message. The moving receiver applies the correction to its own position calculation, cancelling the atmospheric and clock errors that limit standalone GNSS accuracy to 1–3 metres.

The correction data arrives in RTCM format — a standard published by the Radio Technical Commission for Maritime Services. The RTCM messages can be delivered through several channels: a dedicated radio link from a local base station, a cellular data connection from a network RTK service, or a satellite-based correction service. The receiver must support RTCM input processing to use any of these.

For hardware selection, RTK requires three things: a GNSS receiver capable of processing RTCM corrections, a data path for the correction messages to reach the receiver, and a correction service subscription. The tablet hardware provides the first. The integrator or fleet operator arranges the second and third.

RTK is specified for applications where metre-level accuracy is insufficient. Auto-steering in precision agriculture requires pass-to-pass accuracy under 5 centimetres. Machine control on excavators and graders requires similar accuracy for grade control. OEM tablet configuration with RTK support is available for integrators building these applications.

6. Application-Specific GNSS Requirements

The optimal GNSS configuration depends on the operating environment and accuracy requirement. Three application profiles illustrate the range:

7. Integration with Fleet Platforms

GNSS position is one data stream in a fleet computing platform. The device also processes vehicle data from the CAN Bus, communicates over cellular, and runs the fleet management applications. Integrating GNSS with these other functions determines the overall system capability.

A vehicle computing platform with integrated CAN Bus reads engine data, fuel level, odometer, and DTCs directly from the vehicle network, correlates them with GNSS position, and transmits the combined data set to the fleet backend. This correlation is what enables predictive maintenance, driver behavior scoring, and route optimization. A device without CAN Bus integration requires an external gateway module to access vehicle data, which adds a component and a potential failure point.

For cross-border fleets where vehicles pass through multiple carrier coverage areas, GNSS integration with eSIM capability maintains position reporting without physical SIM changes. The eSIM analysis for fleet telematics covers the cross-border connectivity architecture. Fleet-scale device management, including firmware updates and configuration changes, is handled through the TOPICON MDM platform — hosted on TOPICON infrastructure with no on-premises server required.
