How Engine Cranking Voltage Drop Causes Fleet Tablet Reboots – Diagnosis & Hardware Fixes
The driver turns the key. The tablet reboots. Every morning, every cold start, every time the engine cranks after a long idle. This is not a software crash. It is a hardware power management failure — and it is one of the most common yet under-diagnosed problems in fleet vehicle tablet deployments. Here is the physics behind the problem, how to confirm it, and what hardware design choices actually fix it.
The Symptom: Tablet Reboots Every Time the Engine Starts
A fleet operator reports that tablets in a specific subset of vehicles reboot when the engine cranks. The reboot is not random — it happens exactly at engine start, every time, but only on certain trucks. The tablets work perfectly once the engine is running. The problem is worse in winter. It is worse on Monday mornings after the vehicle sat idle over the weekend. It goes away entirely when the tablet is tested on a bench power supply.
This is a classic cranking voltage drop problem. The starter motor draws 200 to 500 amps from the battery during cranking — more for diesel engines, more in cold weather, more when the battery is aging. This massive current draw pulls the vehicle's 12V or 24V bus down to a fraction of its nominal voltage. A 12V system can drop to 6-8V during cranking. A 24V system can drop to 12-16V. The voltage recovers in 100-300 milliseconds once the engine starts and the alternator takes over — but for those milliseconds, every electronic device on the vehicle sees a severe undervoltage condition.
Diagnostic signature: If the tablet reboots during engine cranking but functions normally on a bench power supply or when the engine is running, the vehicle's cranking voltage transient is exceeding the tablet's input voltage tolerance. This is not a tablet defect. It is a power supply incompatibility between the tablet's power management circuit and the vehicle's electrical system during its most demanding operating condition.
The Physics — Why Cranking Drops Voltage, and Why It Gets Worse
The voltage drop during engine cranking is not a malfunction. It is a predictable consequence of the vehicle's electrical architecture — and three environmental factors make it worse.
1. Cold Weather
Engine oil viscosity increases at low temperatures. The starter motor must work harder to turn the engine over — drawing more current. At -20°C, cranking current can be 50-100% higher than at +20°C. The voltage drop is deeper and lasts longer. A tablet that barely survives cranking at +20°C will reliably reboot at -20°C.
2. Battery Aging
A lead-acid battery's internal resistance increases as it ages. A 3-year-old battery has higher internal resistance than a new one. Under the same cranking load, an older battery's terminal voltage drops further than a new battery's. This is why cranking reboots often appear after a fleet has been in service for 2-3 years — not because the tablets changed, but because the vehicle batteries aged.
3. Diesel vs Gasoline
Diesel engines have higher compression ratios than gasoline engines — typically 15:1 to 23:1 versus 8:1 to 12:1. Higher compression means higher cranking torque, which means higher starter current. A heavy-duty diesel truck can draw 400-500A during cranking. The voltage drop on a 24V diesel system can reach 12V — half the nominal voltage. Tablets designed for 12V passenger vehicles will fail on 24V diesel trucks unless specifically engineered for the deeper voltage sag.
Why Standard Power Circuits Fail During Cranking
Three design weaknesses that cause a tablet to reboot when the engine cranks
1. Insufficient Input Capacitance
The input capacitor bank on the tablet's power supply acts as a short-term energy reservoir. When the vehicle voltage sags, the capacitor discharges to keep the internal rails stable. If the capacitor is too small, it discharges completely before the voltage recovers — and the power management IC shuts down. The required capacitance is proportional to the power consumption of the tablet and the duration of the voltage sag. A tablet drawing 15W during a 200ms sag needs approximately 2,000-4,000µF of input capacitance — far more than the 100-470µF found on most consumer-grade power input stages.
2. UVLO Threshold Set Too High
The Under-Voltage Lock-Out circuit protects the tablet by shutting it down when the input voltage drops below a safe threshold. If the UVLO threshold is set at 9V for a 12V system, a cranking sag to 8V triggers a shutdown — even though the tablet could safely operate at 8V for the brief duration of the sag. The UVLO threshold should be set low enough to ride through the cranking transient, with hysteresis to prevent oscillation. A properly designed vehicle tablet sets UVLO at 6V for 12V systems or 12V for 24V systems — below the worst-case cranking sag but above the voltage that would cause internal rail instability.
3. No Hold-Up or Energy Buffer
A properly designed vehicle tablet power supply includes a hold-up circuit — a combination of input capacitance, a boost converter, and sometimes a supercapacitor or small backup battery — that maintains internal rail voltage for the duration of a cranking sag without drawing from the vehicle battery. Without a hold-up circuit, the tablet's internal regulators see the input voltage sag directly, and the system resets. The difference between a tablet that reboots during cranking and one that does not is often a 2,200µF capacitor and a correctly configured UVLO threshold — components that add less than $3 to the BOM cost but fundamentally change field reliability.
Engineering principle: The difference between a tablet that survives engine cranking and one that reboots is not processor speed or memory capacity. It is whether the power management circuit was designed for the vehicle electrical environment — or adapted from a consumer electronics reference design that assumed a stable wall-powered supply. Explore vehicle power tablet solutions →
Hardware-Level Solutions — Four Approaches That Actually Work
These are not software fixes. They are power management design decisions made during hardware engineering.
1. Wide Voltage Input with Large Hold-Up Capacitance
What it does: Accepts 9-36V DC input — covering both 12V and 24V vehicle systems with margin. The input capacitor bank is sized to hold up the internal rails for 200-500ms at full load — long enough to ride through the deepest cranking sag.
Key component: 2,000-4,000µF of low-ESR electrolytic or polymer capacitors on the input stage, located before the DC-DC converter. Combined with a wide-input DC-DC converter that regulates down to 6V on a 12V system, the internal rails never see the sag.
2. Supercapacitor or Battery Energy Buffer
What it does: A supercapacitor bank or small backup battery provides energy during the cranking sag — the tablet runs from the buffer while the vehicle voltage recovers, then recharges the buffer from the vehicle supply.
Key component: A 10-25F supercapacitor bank charged to 5V can supply 15W for 200ms with minimal voltage drop. The charging circuit limits inrush current so the supercapacitor does not load the vehicle battery during cranking. This is the most robust solution for vehicles with extreme cranking transients — diesel engines in cold climates, aging batteries, or auxiliary equipment that also loads the electrical system during startup.
3. Ignition-Controlled Delayed Power-On
What it does: The tablet senses the ignition signal but delays power-on until after the cranking transient ends. The tablet is not powered during the voltage sag — so it cannot reboot. It powers up cleanly once the alternator is running and the voltage is stable.
Key component: A simple RC delay circuit on the ignition sense line, or a microcontroller-controlled delay in the docking station's power management. The delay is typically 1-3 seconds after ignition-on — enough for the engine to start and the alternator to stabilize. This is the simplest solution and works well for vehicles where the tablet does not need to be operational during engine cranking.
4. UVLO Threshold with Hysteresis
What it does: Sets the under-voltage shutdown threshold low enough to survive cranking — typically 6V for a 12V system, 12V for a 24V system — with hysteresis so the tablet does not oscillate between on and off if the voltage hovers near the threshold. When the voltage drops below the threshold, the tablet shuts down. When it rises above the threshold plus hysteresis, the tablet restarts. The key is that the threshold is below the worst-case cranking sag for the vehicle type.
Key component: A voltage supervisor IC with adjustable threshold and hysteresis, or a power management IC with built-in programmable UVLO. The threshold must be selected based on the vehicle's measured cranking profile — not a generic value from a datasheet.
How TOPICON MDTs Handle Engine Cranking Voltage Drops
Vehicle-grade power management designed for the cranking environment — not adapted from consumer electronics
Consumer Tablet Power Design
Input: 5V USB via cigarette lighter adapter — no wide voltage tolerance. The adapter itself may shut down during cranking sags.
Input capacitance: Typically 100-470µF — discharges in under 50ms at full load.
UVLO: Fixed at 4.5-4.8V with minimal hysteresis — designed for USB power, not vehicle transients.
Ignition sensing: None — the tablet stays on when the engine stops, draining the vehicle battery, or reboots during cranking because the 5V supply collapses.
Result: Reboots during engine cranking. Battery drains when vehicle is parked. USB connector wears out from vibration.

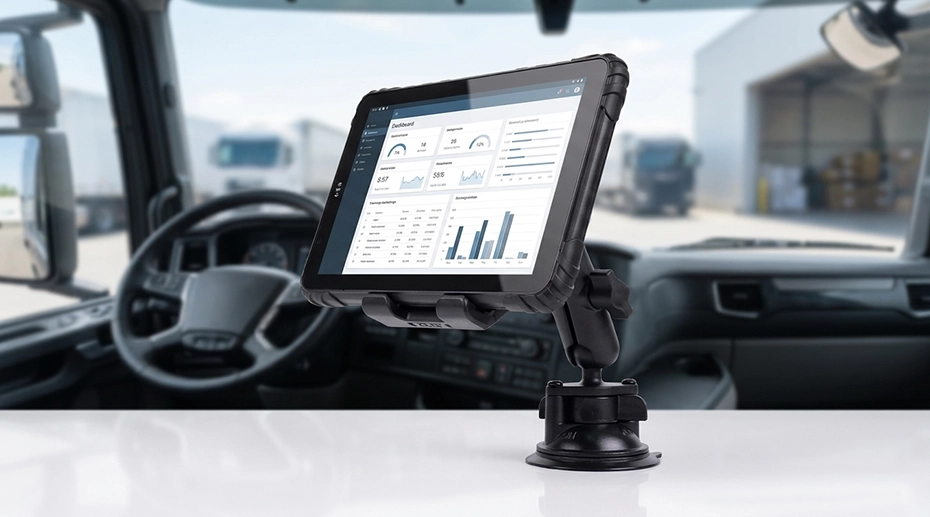

TOPICON MDT Power Design
Input: 9-36V DC wide voltage input — covers both 12V and 24V vehicle systems with margin for transients. Direct-wired to the vehicle electrical system through the docking station — not through a cigarette lighter adapter.
Input capacitance: Sized for 200-500ms hold-up at full load — the internal rails remain stable through the deepest cranking sag.
Ignition sensing: Standard on all docks (except BKT865 V20). The tablet powers on only after the engine is running and the voltage is stable. When the engine stops, the tablet enters sleep mode after a configurable delay.
Result: No reboots during engine cranking. No battery drain. No USB connector wear. The tablet operates as a vehicle-integrated computing platform, not a consumer device in a vehicle cab.
Frequently Asked Questions
Why does my tablet only reboot during engine start in cold weather?
Cold weather increases engine oil viscosity, requiring higher starter motor current. The voltage drop during cranking is deeper and longer — exceeding the tablet's input voltage tolerance. A tablet that marginally survives cranking at +20°C will reboot at -20°C. The fix is not a different tablet — it is a tablet with wide voltage input (9-36V) and sufficient input capacitance to ride through the deeper sag.
Can I fix cranking reboots with a software update?
No. Cranking reboots are caused by the hardware power supply shutting down due to undervoltage — not by software. The processor loses power and resets. No software change can keep a processor running when its power rails collapse. The fix is hardware-level: wider input voltage range, larger input capacitance, delayed power-on via ignition sensing, or an energy buffer.
Does ignition sensing prevent cranking reboots?
Yes — if implemented correctly. Ignition sensing with delayed power-on ensures the tablet does not power up until after the engine has started and the alternator is producing stable voltage. The tablet never sees the cranking sag because it is not yet powered on. This is the simplest and most effective solution for most fleet deployments. Browse docking stations with ignition sensing →
Will a voltage stabilizer or DC-DC converter fix the problem?
Only if the DC-DC converter is designed for vehicle cranking transients. A standard industrial DC-DC converter with a 9-36V input range will still shut down if its input drops below 9V during cranking. The converter must either have a wide enough input range to include the cranking sag, or be paired with sufficient input capacitance to hold up during the sag. A converter alone is not a complete solution.
Do TOPICON MDTs require an external voltage stabilizer?
No. TOPICON MDTs include 9-36V wide voltage input, input capacitance sized for cranking hold-up, and ignition sensing with delayed power-on. The power management circuit is designed for the vehicle electrical environment — no external stabilizer or additional hardware is required.
